> ZBY0Y0C - Neodymium Surplus Block Magnet

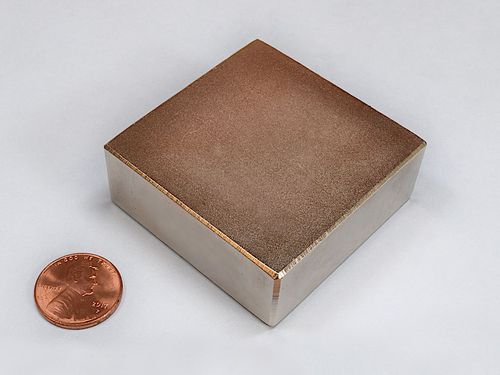

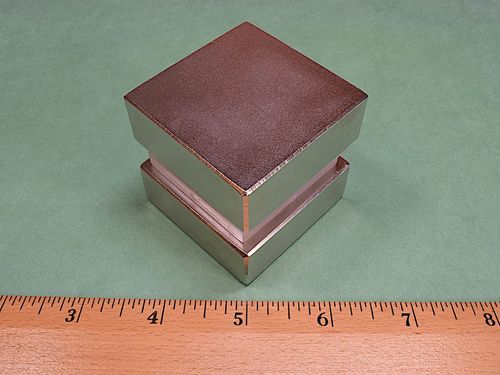

ZBY0Y0C - Neodymium Surplus Block Magnet - 2" Len x 2" Wid x 3/4" Thi

zby0y0c-neodymium-surplus-block-magnet

zby0y0c-neodymium-surplus-block-magnet--thumbnail-1

zby0y0c-neodymium-surplus-block-magnet--thumbnail-2

$62.89

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$62.89	1
$61.49	2	2%
$60.09	3-4	4%
$58.70	5-9	7%
$57.30	10-14	9%
$55.90	15-19	11%
$54.50	20-24	13%
$53.11	25-49	16%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 2" x 2" x 3/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N35
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 13 oz. (368.54 g)
Pull Force, Case 1: 155.6 lbs
Pull Force, Case 2: 209.6 lbs
Surface Field: 3375 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 12,100 Gauss
BHmax: 35 MGOe

These might be surplus magnets, but they are still incredibly strong and dangerous if mishandled. One of these blocks has a pull force of over 150 lbs when stuck to a large, thick steel plate!

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
