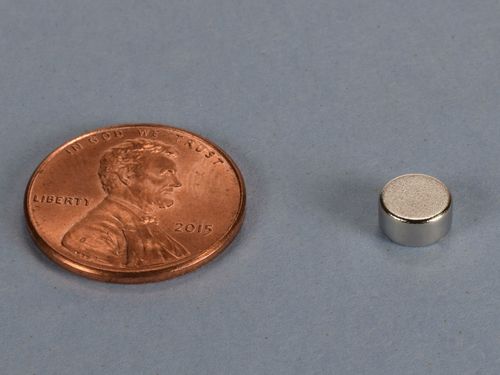

ZD42 - Neodymium Surplus Disc Magnet - 1/4" Dia x 1/8" Thi

• Dimensions: 1/4" dia. x 1/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N48
• Plating/Coating: Ni-Cu-Ni (nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0266 oz. (0.754 g)
• Pull Force, Case 1: 2.63 lbs
• Pull Force, Case 2: 4.24 lbs
• Surface Field: 5020 Gauss
• Max Operating Temp: 176°F (80°C)
• Brmax: 14,200 Gauss
• BHmax: 48 MGOe

This is one of our most popular sizes. This is a great size for general purpose hanging and a wide variety of magnetic applications. This magnet was supposed to be N52, but it didn't meet our strict quality tests, so we are selling them at a discount! They test more like a strong N48 grade.

This size is also available in grade N42, as part number D42, N52 as D42-N52, in grade N52 with black nickel plating as D42B-N52 , in grade N42 with black epoxy coating as D42E , and diametrically magnetized as D42DIA.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
