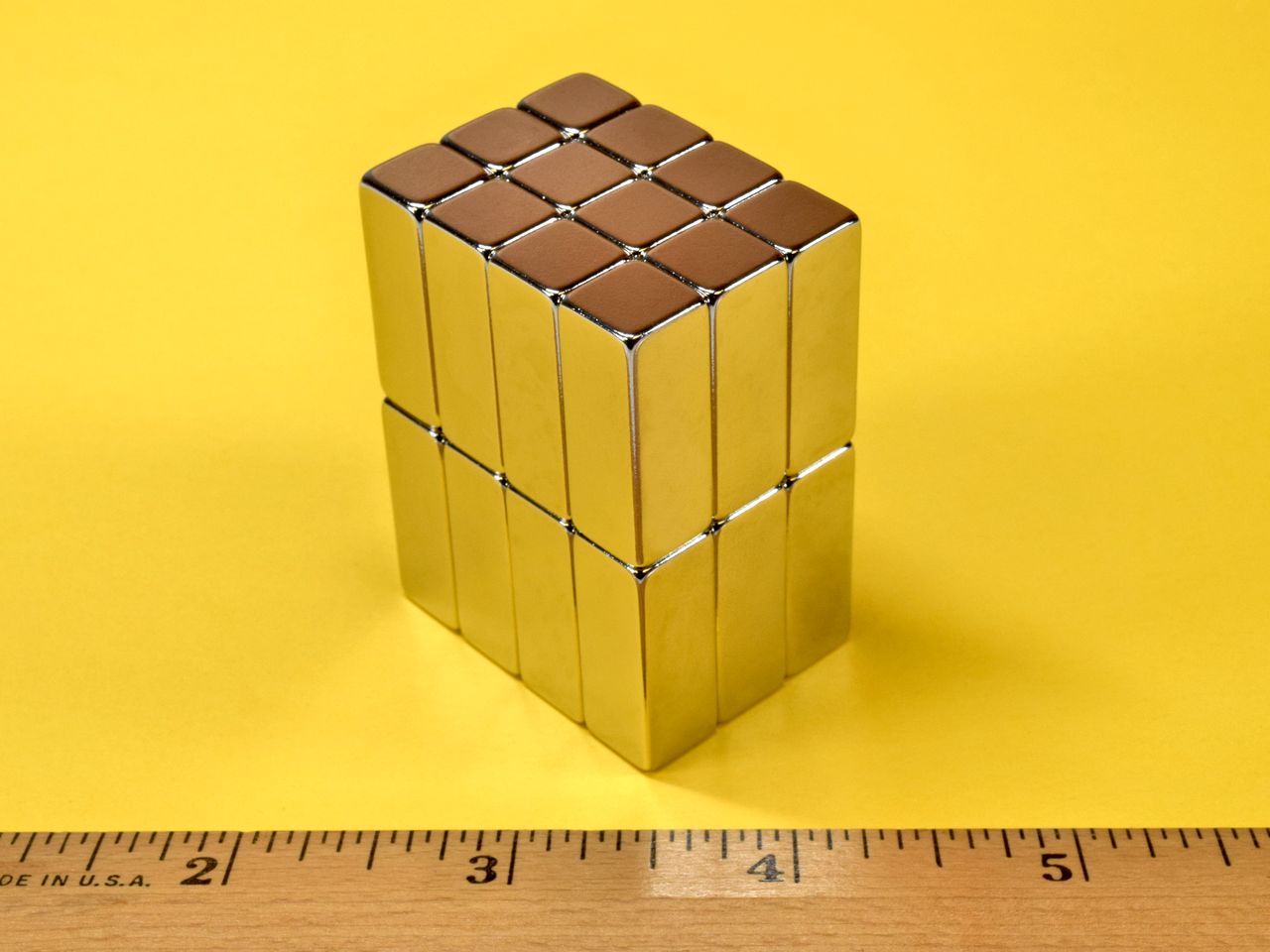

B66X0 - Neodymium Block Magnet

b66x0-neodymium-block-magnet--thumbnail-2

$4.43

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$4.43	1-4
$4.33	5-9	2%
$4.23	10-24	5%
$4.14	25-49	7%
$4.04	50-99	9%
$3.94	100-249	11%
$3.84	250-499	13%
$3.75	500-999	15%
$3.65	1000-2499	18%
$3.55	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3/8" x 3/8" x 1" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.610 oz. (17.29 g)
Pull Force, Case 1: 11.99 lbs
Pull Force, Case 2: 11.99 lbs
Surface Field: 6457 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

These Neodymium Magnets are magnetized through the 1" length meaning the poles are on the 3/8" x 3/8" ends. While they are powerful and can pinch, they are a great size for a bulletin board or your fridge, as just one of them will hold a stack of papers firmly in place, and they are large enough to grab and easily move.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
