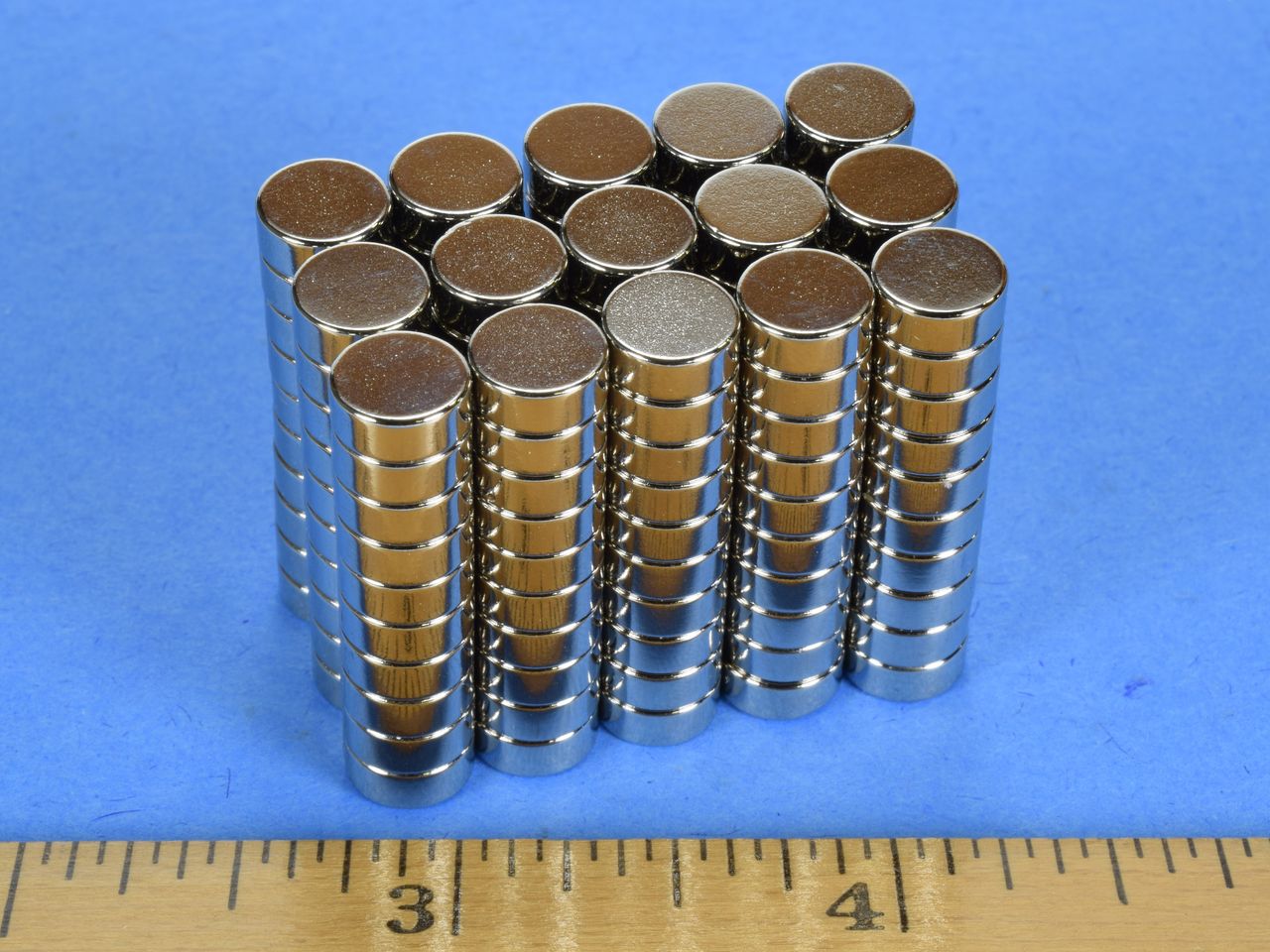

D52-N52 - Neodymium Disc Magnet - 5/16" Dia x 1/8" Thi

• Dimensions: 5/16" dia. x 1/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.0416 oz. (1.18 g)
• Pull Force, Case 1: 4.15 lbs
• Pull Force, Case 2: 7.93 lbs
• Surface Field: 4623 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

This 5/16" disc may be small, but it is very powerful. Thousands of uses!

This size is also available in grade N42 as part number D52.
