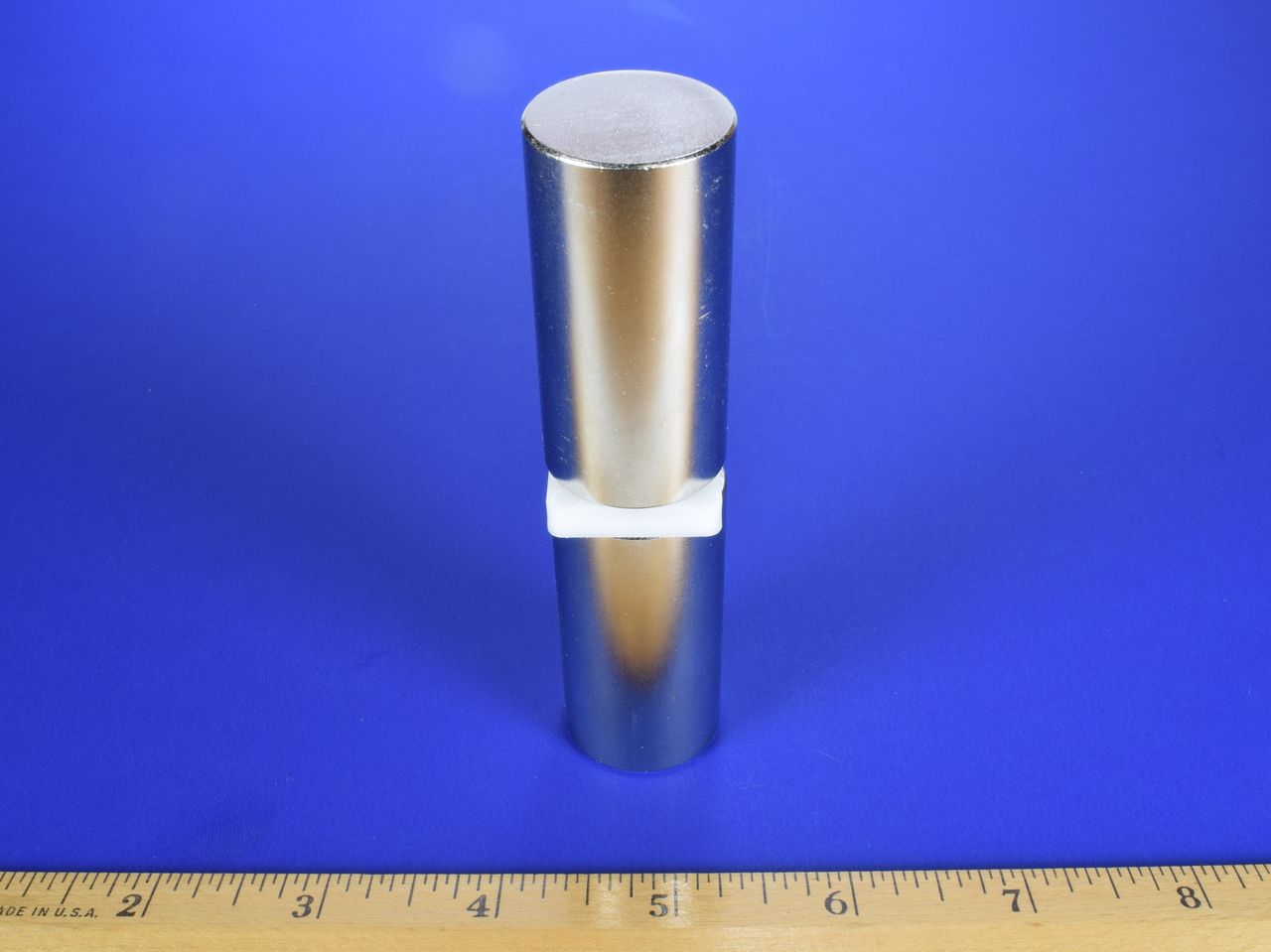

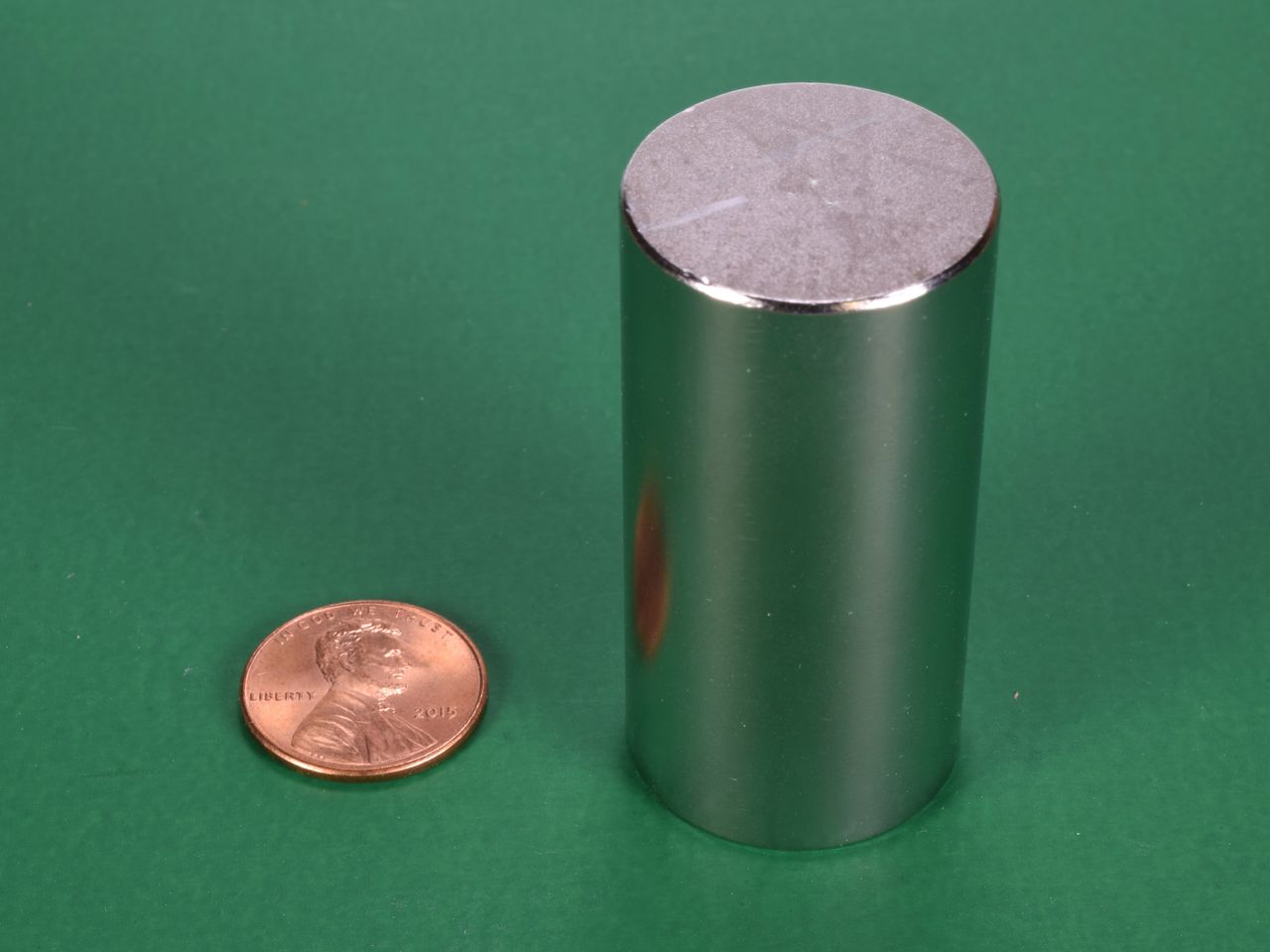

DX0Y0 - Neodymium Cylinder Magnet

• Dimensions: 1" dia. x 2" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 6.81 oz. (193 g)
• Pull Force, Case 1: 69.00 lbs
• Pull Force, Case 2: 69.00 lbs
• Surface Field: 6403 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These large cylinders are incredibly powerful and should only be handled by people experienced with the power of neodymium magnets. The DX0Y0 is very strong and must be handled with caution. Due to their 2 inch length, it is not terribly difficult to get a good grip on them in order to pull them apart. But don't let that fool you, the DX0Y0 still packs quite a punch.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
