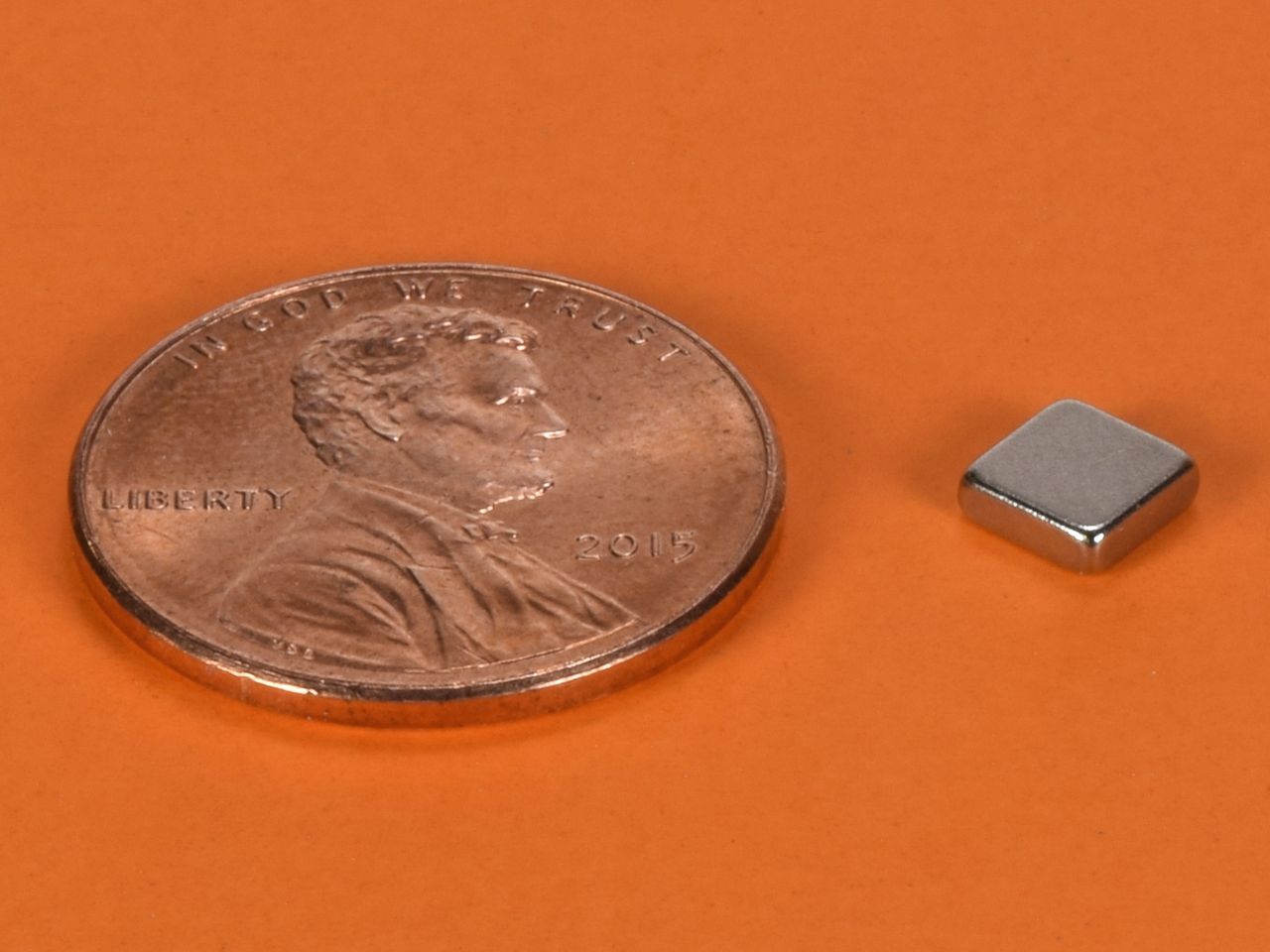

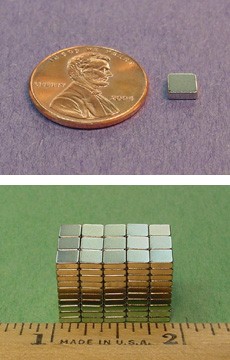

B331 - Neodymium Block Magnet - 3/16" Len x 3/16" Wid x 1/16" Thi

b331-neodymium-block-magnet

b331-neodymium-block-magnet--thumbnail-1

b331-neodymium-block-magnet--thumbnail-2

$0.20

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.20	1-249
$0.19	250-999	5%
$0.18	1000-4999	10%
$0.17	5000-24999	15%
$0.16	25000-49999	20%
$0.16	50000-99999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 3/16" x 3/16" x 1/16" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.00953 oz. (0.270 g)
Pull Force, Case 1: 0.92 lbs
Pull Force, Case 2: 2.57 lbs
Surface Field: 3387 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

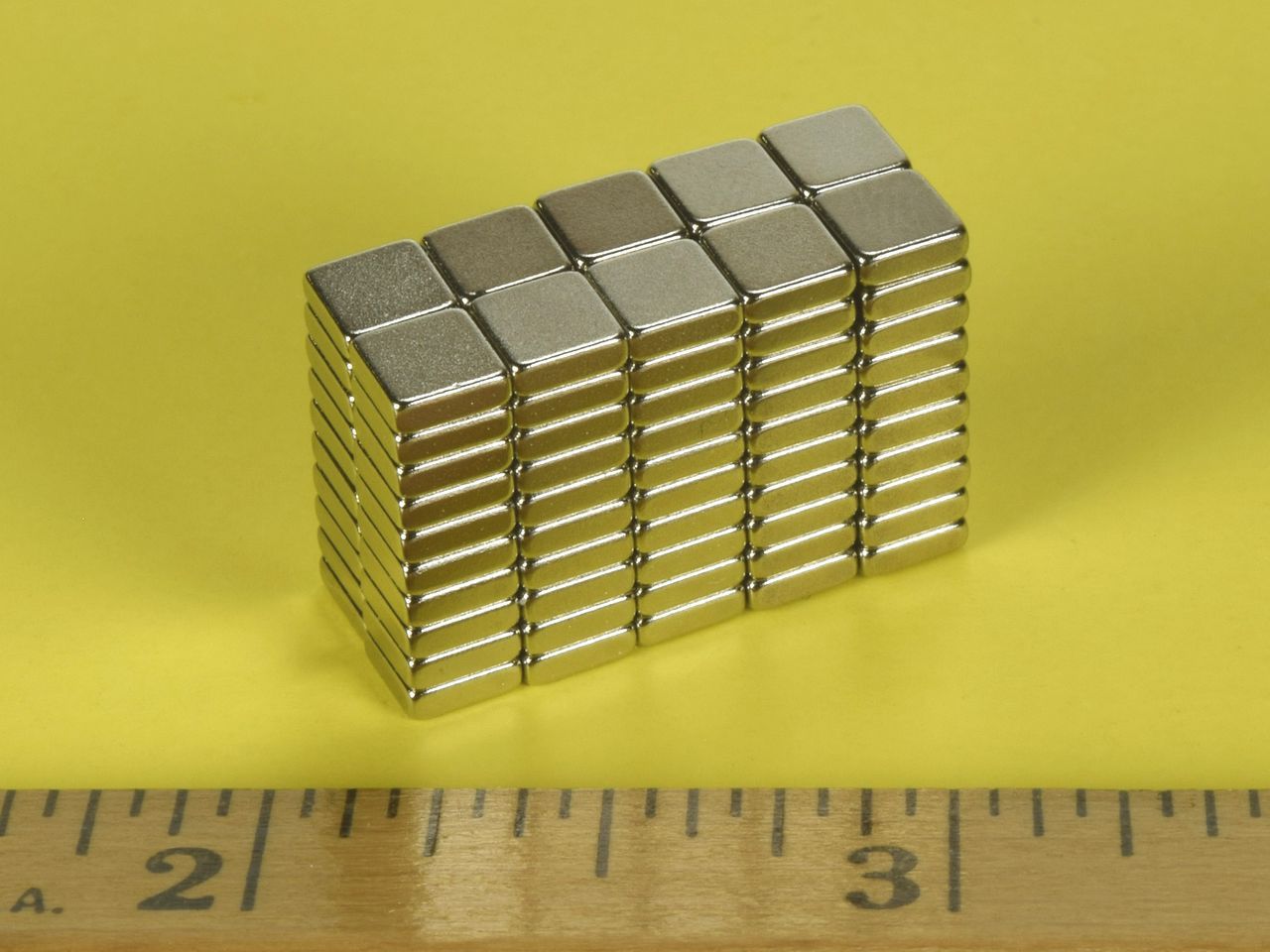

Small little blocks that are useful to have around. Strong and handy little magnets.
