- Dimensions: 3/8" dia. x 1/2" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni-Plastic
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.160 oz. (4.54 g)
- Pull Force, Case 1: 2.51 lbs
- Pull Force, Case 2: 3.18 lbs
- Surface Field: 5023 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

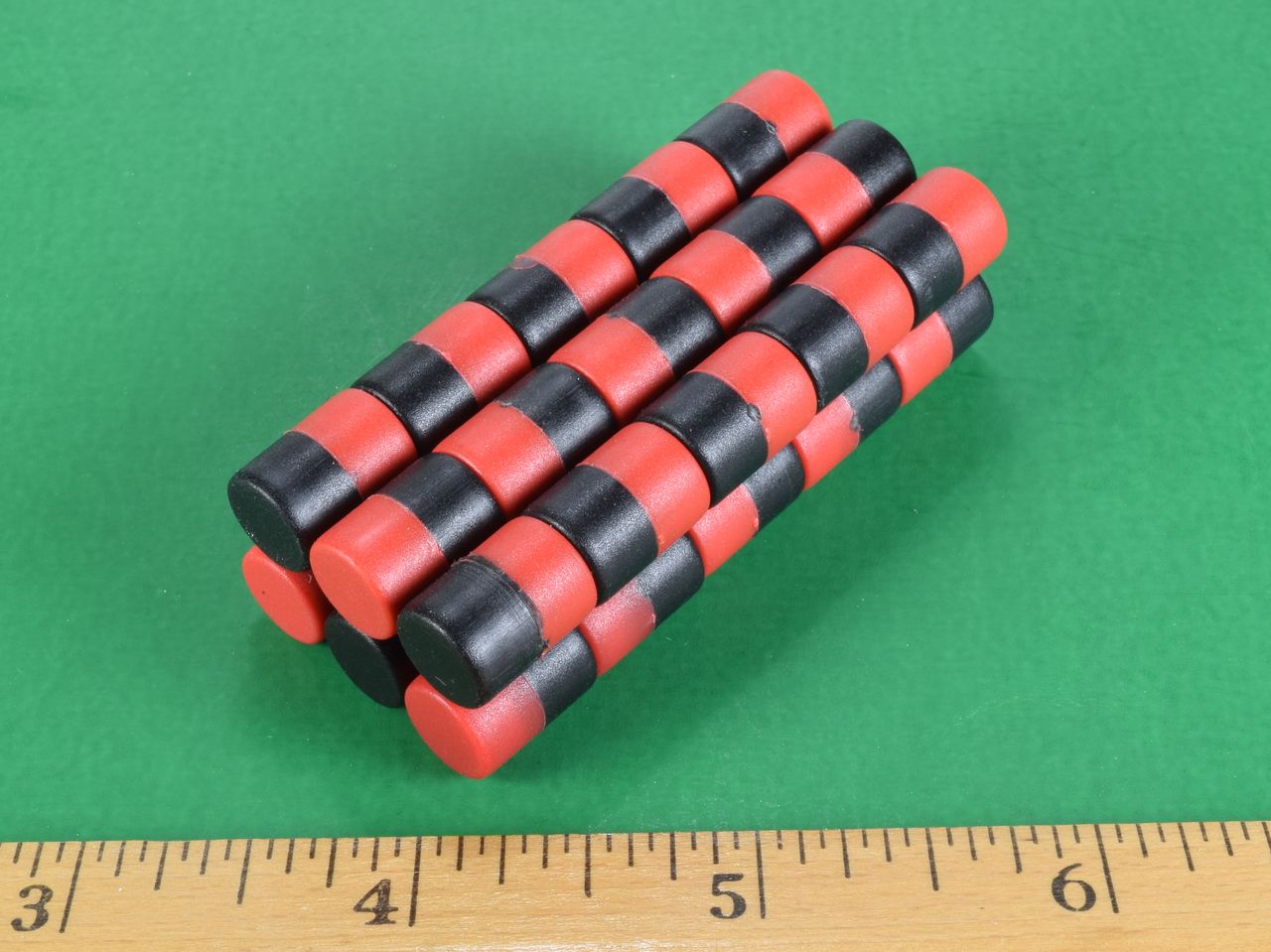

These amazing little magnets are coated with a durable layer of two-tone
plastic. This dual-color plastic coating is designed to make it easy to
identify the poles. The red half is the North side of the magnet. The black
half is the South side of the magnet. Use them to identify the poles of
another magnet, on magnetic whiteboards to signify complete/incomplete
projects, in the classroom or for science projects. They are also great for
the budding magnet enthusiast.
The 3/8" x 1/2" dimensions are the finished dimensions of the
plastic coating. Snap them together many times without damage. They won't
mark or scratch surfaces they come in contact with and are completely
weatherproof. The perfect magnet? We like to think so!
Looking for
this color combo in a different shape? Try our P/N
D84PC-RB.
For more info on determining the poles of a magnet read our blog
article Which Pole Is North?
