Dimensions: 3/4" dia. x 3/4" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.44 oz. (40.7 g)
Pull Force, Case 1: 32.50 lbs
Pull Force, Case 2: 36.50 lbs
Surface Field: 5903 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

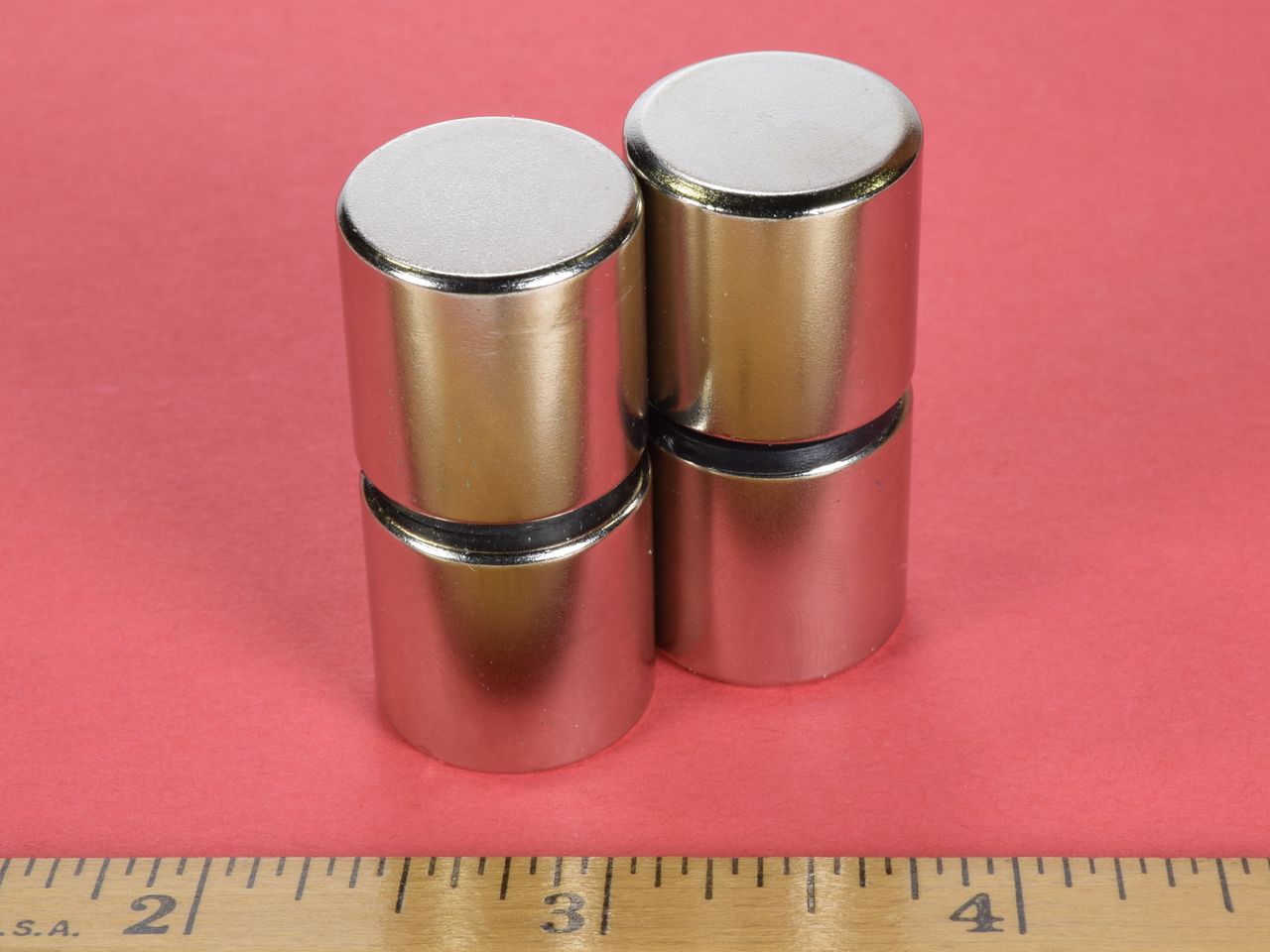

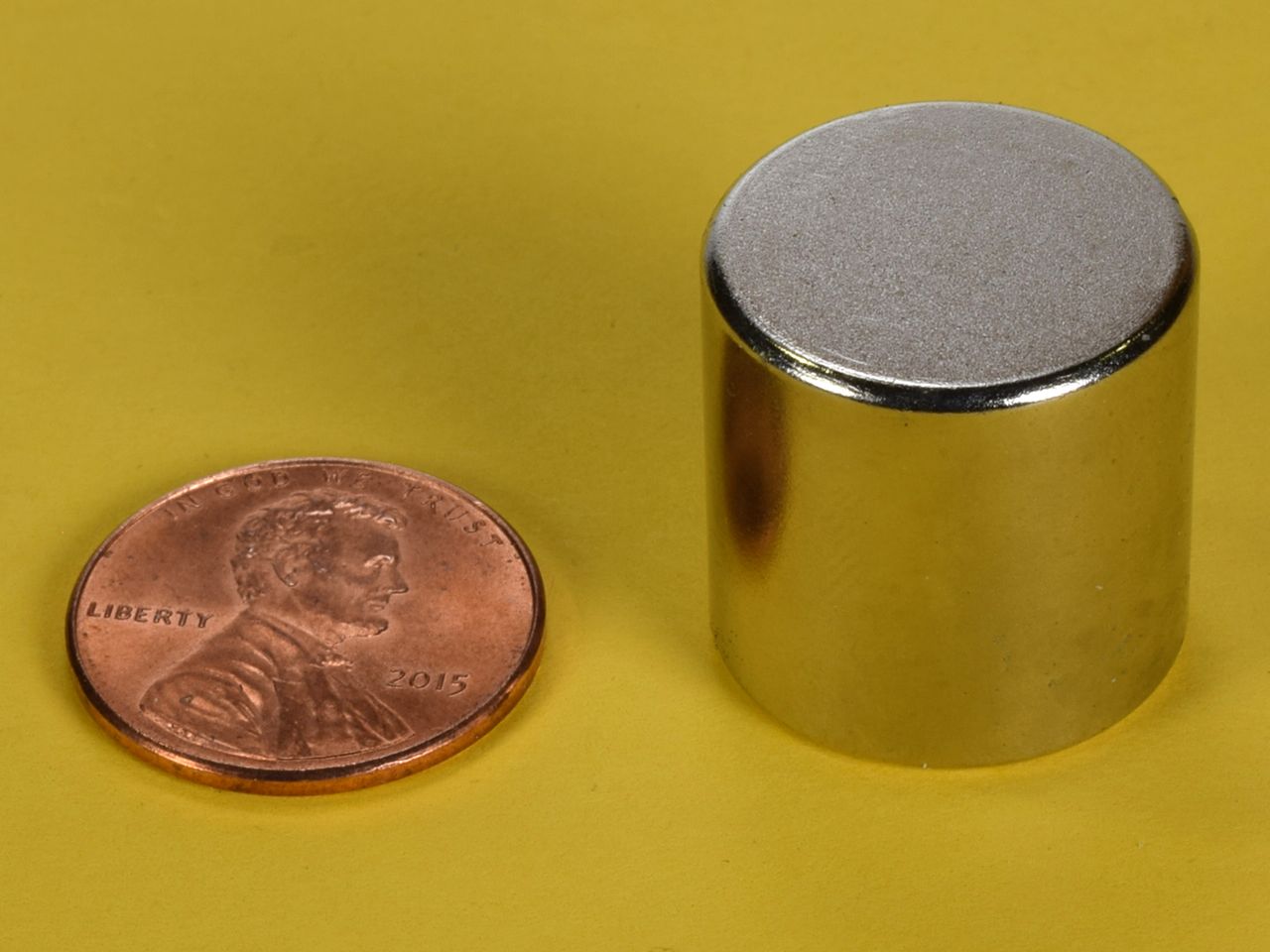

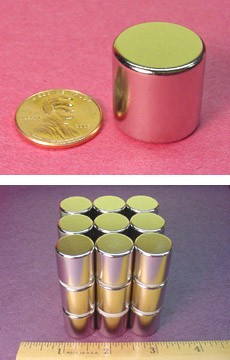

The DCC is one powerful cylinder (a.k.a. rod) magnet. They are incredibly powerful and must be handled with care. A great choice for degaussing tapes and other magnetic media.

This size is also available diametrically magnetized as part number DCCDIA.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).
