RC62 - Neodymium Ring Magnet - 3/4" Dia x 3/8 " ID x 1/8" Thi

rc62-neodymium-ring-magnet

rc62-neodymium-ring-magnet--thumbnail-1

rc62-neodymium-ring-magnet--thumbnail-2

$1.60

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$1.60	1-9
$1.56	10-24	3%
$1.53	25-49	4%
$1.49	50-99	7%
$1.46	100-249	9%
$1.42	250-499	11%
$1.39	500-999	13%
$1.35	1000-2499	16%
$1.32	2500-4999	18%
$1.28	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3/4" od x 3/8" id x 1/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.18 oz. (5.1 g)
Pull Force, Case 1: 8.51 lbs
Pull Force, Case 2: 28.12 lbs
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

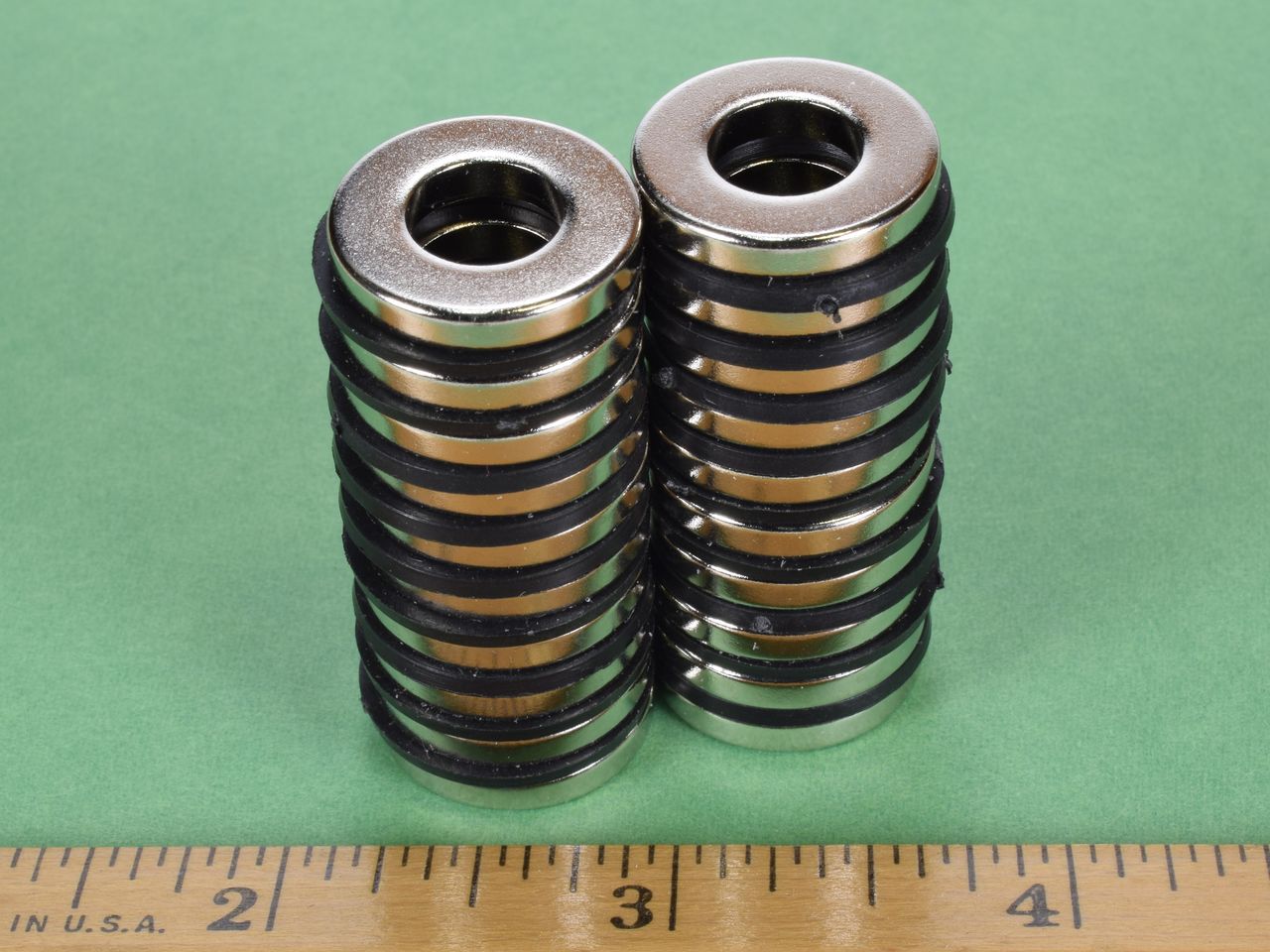

The RC62 is one mighty little magnet. Quite strong for its size and made that much more versatile by it's 3/8" center hole. The possibilities are endless!
