D8X0DIA - Neodymium Cylinder Magnet

Description
Technical
Downloads

Dimensions: 1/2" dia. x 1" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Diametrical
Weight: 0.851 oz. (24.1 g)
Pull Force, Case 1: 22.33 lbs
Pull Force, Case 2: 29.34 lbs
Surface Field: 7157 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

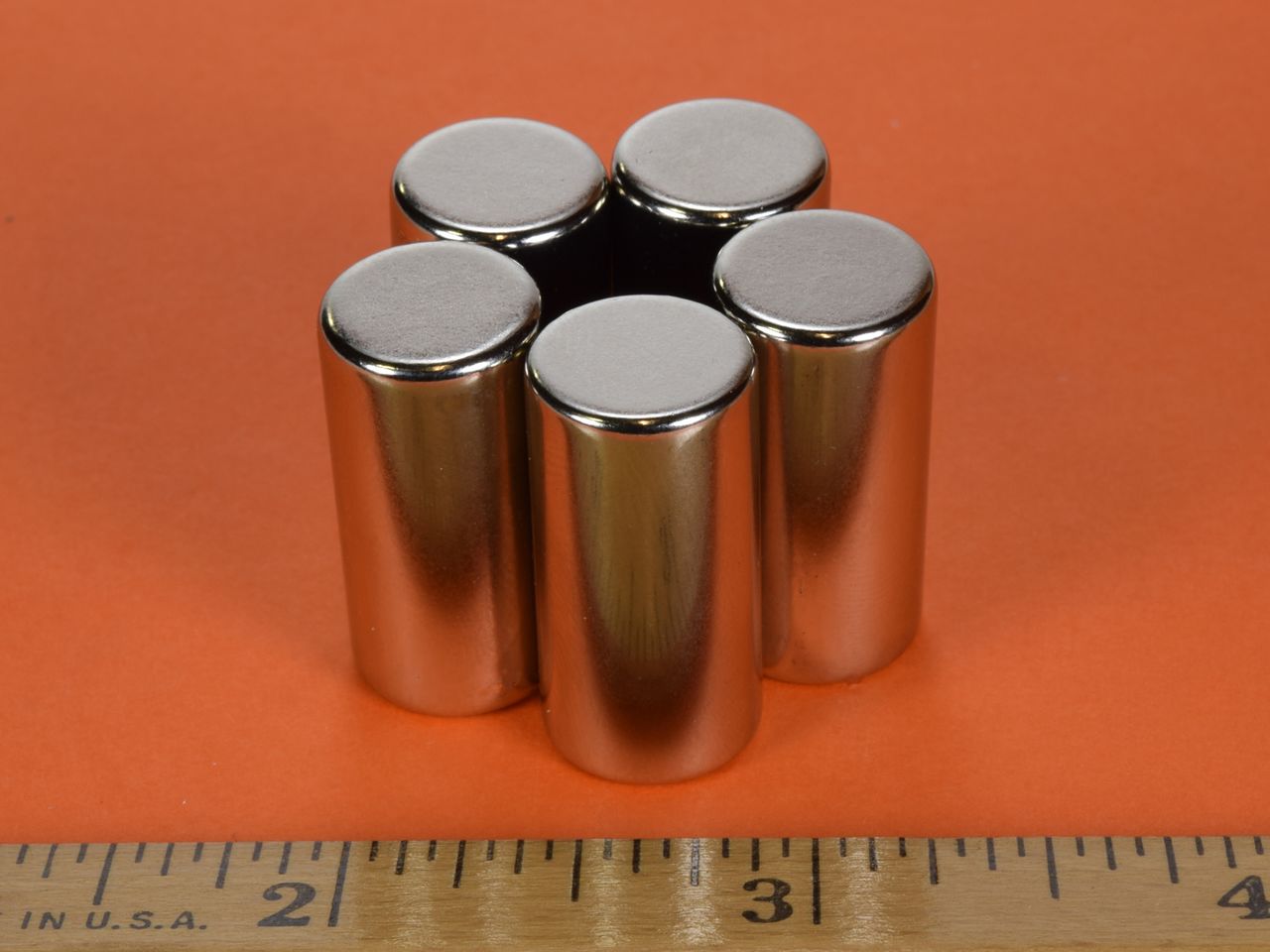

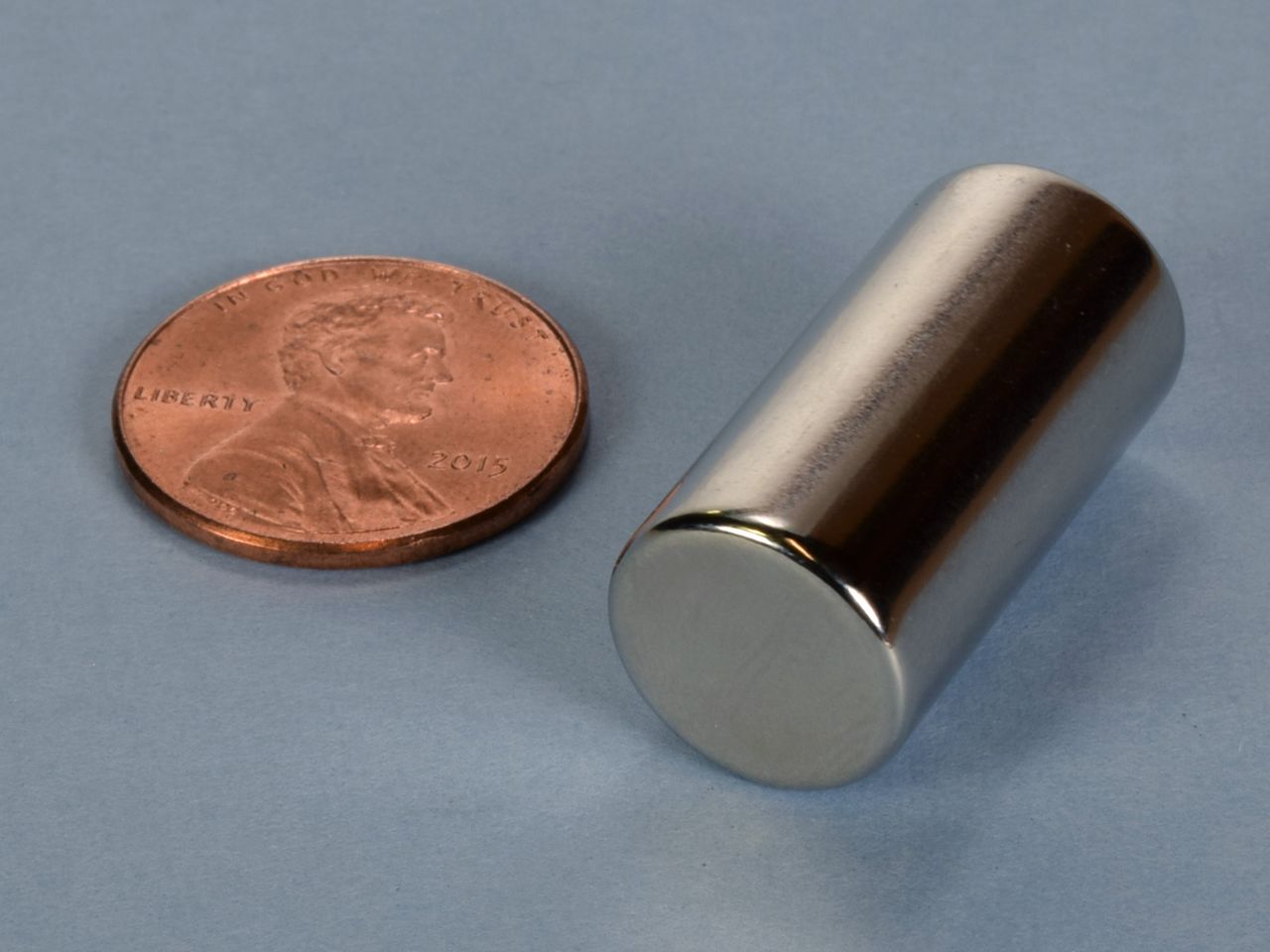

These diametrically magnetized cylinders are very powerful. They are magnetized perpendicular to the axis of the cylinder, so they will attract "side-to-side" with great force.

This size is also available axially magnetized as part number D8X0.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $6.71

Quantity:

Qty:

Price ea.	Qty
$6.71	1
$6.56	2-4
$6.41	5-9
$6.26	10-24
$6.11	25-49
$5.96	50-99
$5.81	100-249
$5.66	250-499
$5.51	500-999
$5.36	1000-2499
For pricing at higher order quantities, please email us!
