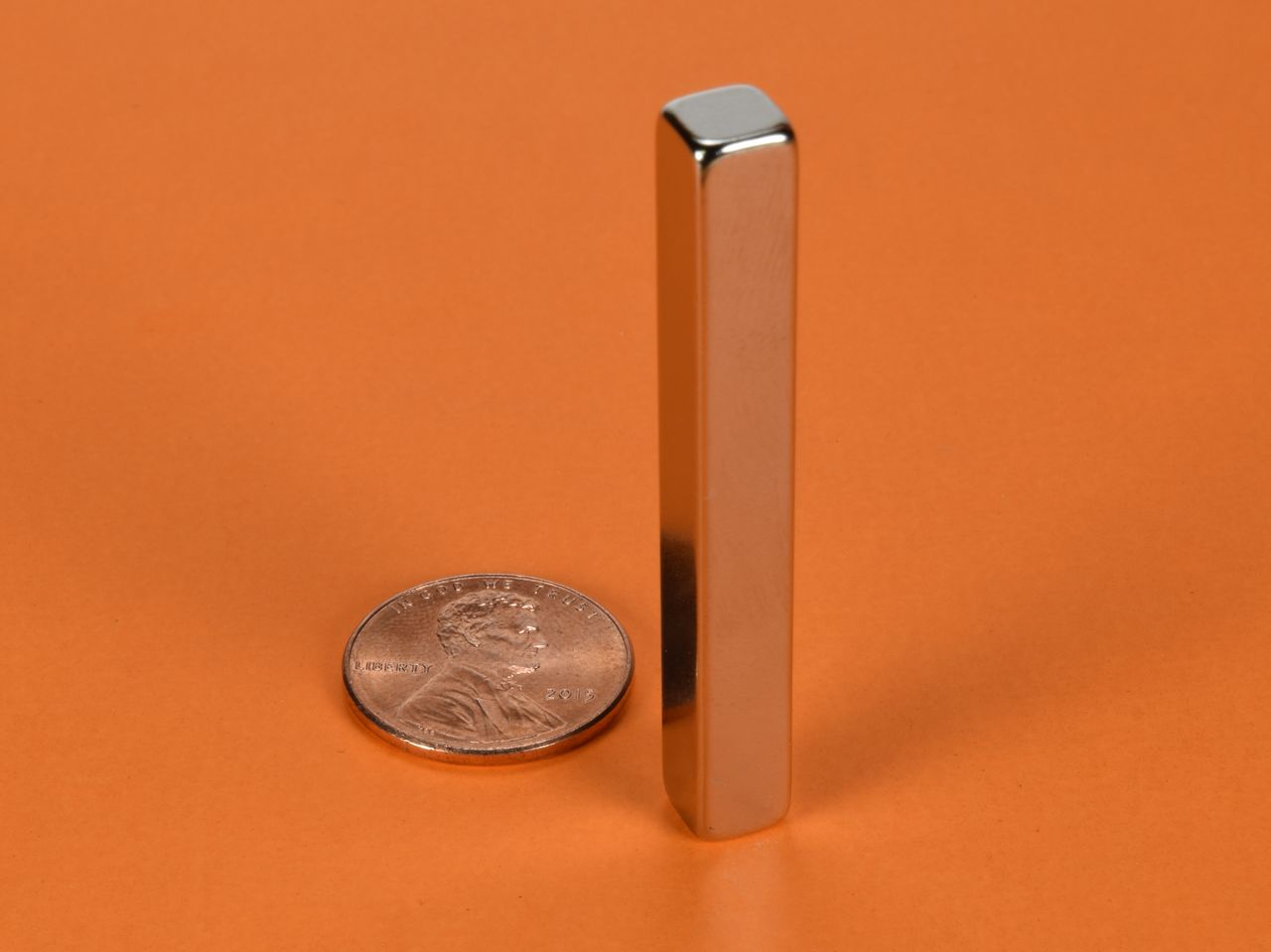

B44Y0 - Neodymium Block Magnet

• Dimensions: 1/4" x 1/4" x 2" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.542 oz. (15.4 g)
• Pull Force, Case 1: 5.58 lbs
• Pull Force, Case 2: 5.58 lbs
• Surface Field: 6584 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

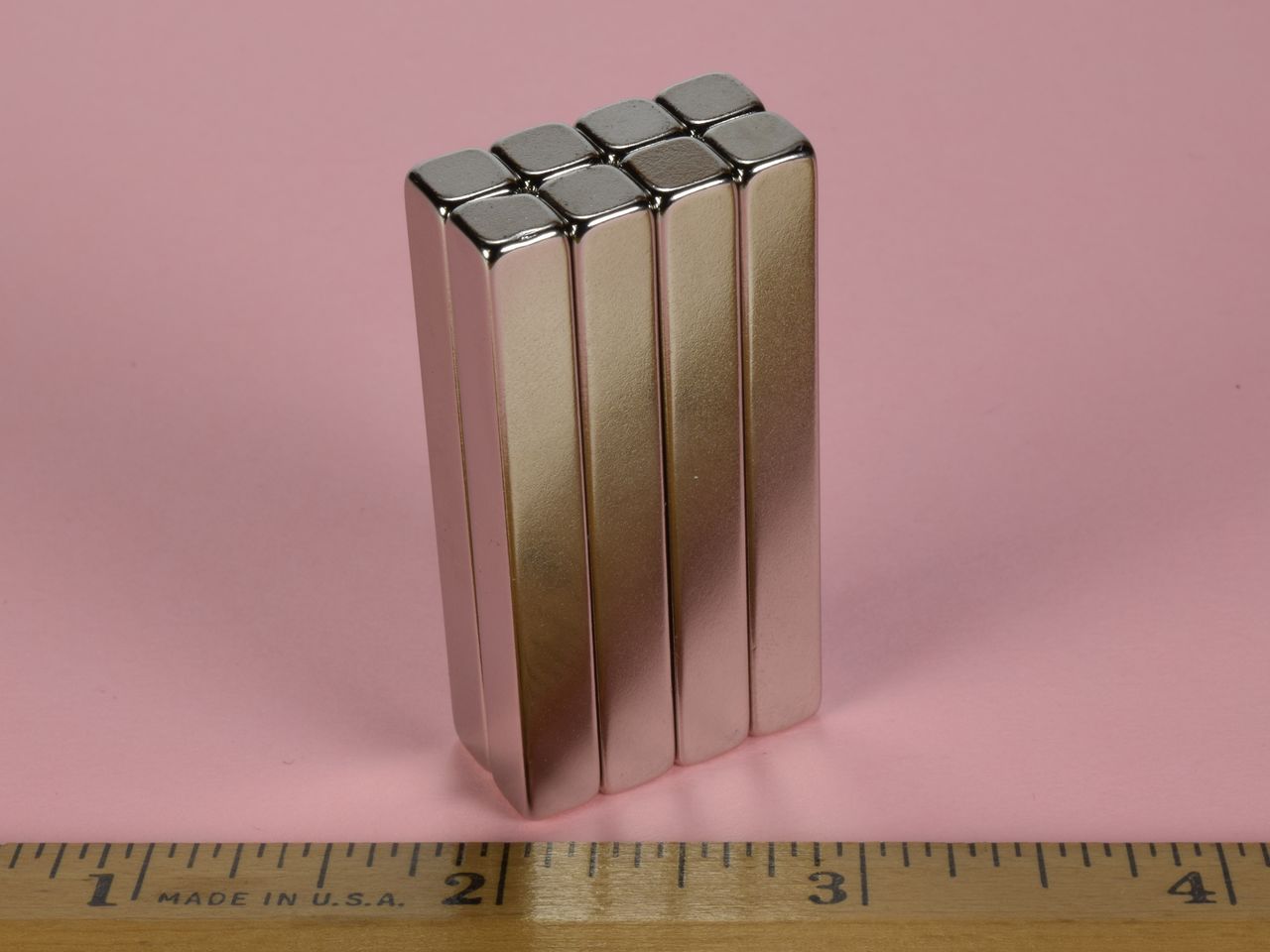

These blocks are magnetized through the 2" length so the poles are on the smaller 1/4" x 1/4" ends. Easy to grip and hold onto. Great for use as a mini pick-up tool or for easily identifying ferrous / non-ferrous metals.



	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
