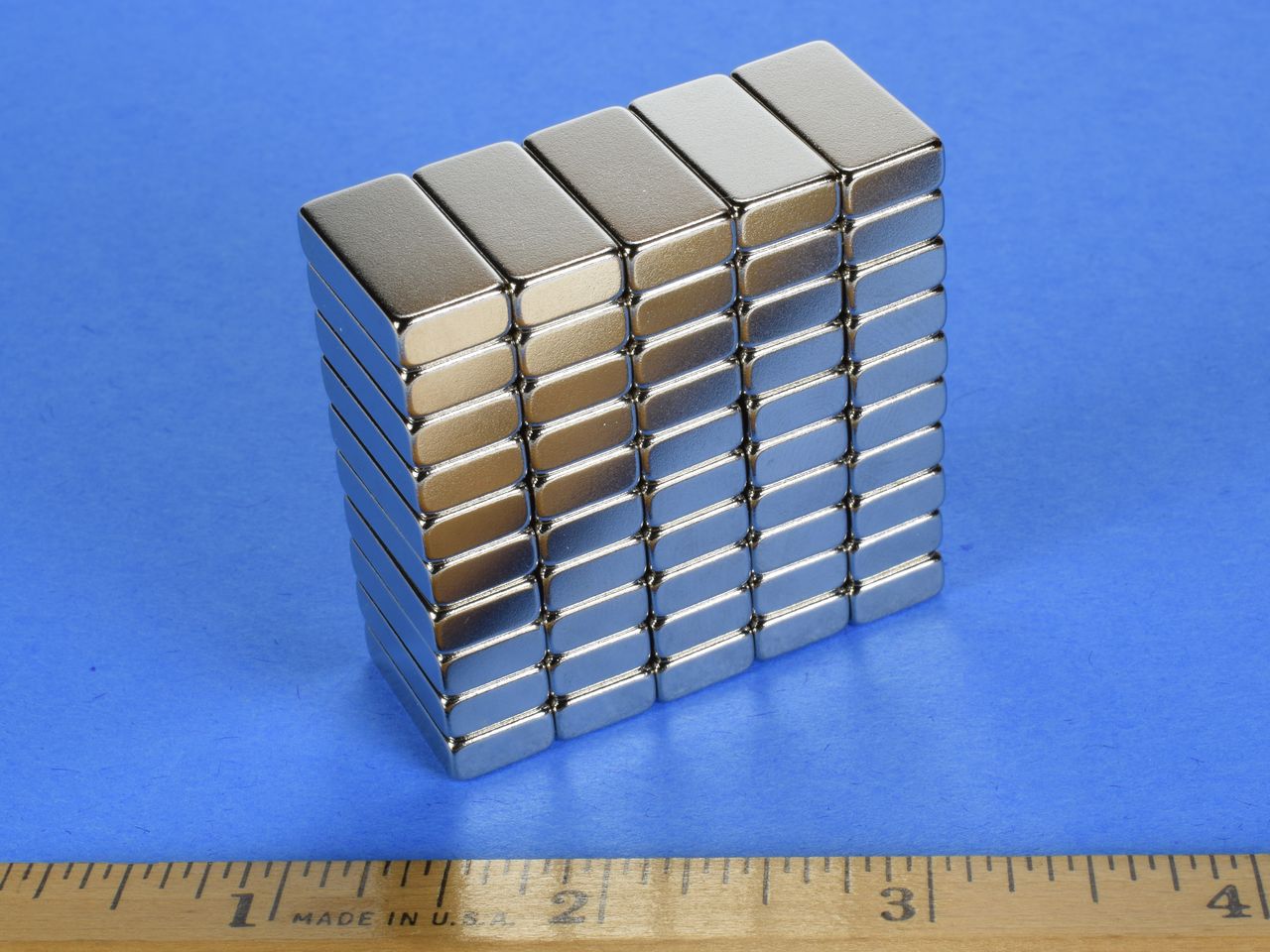

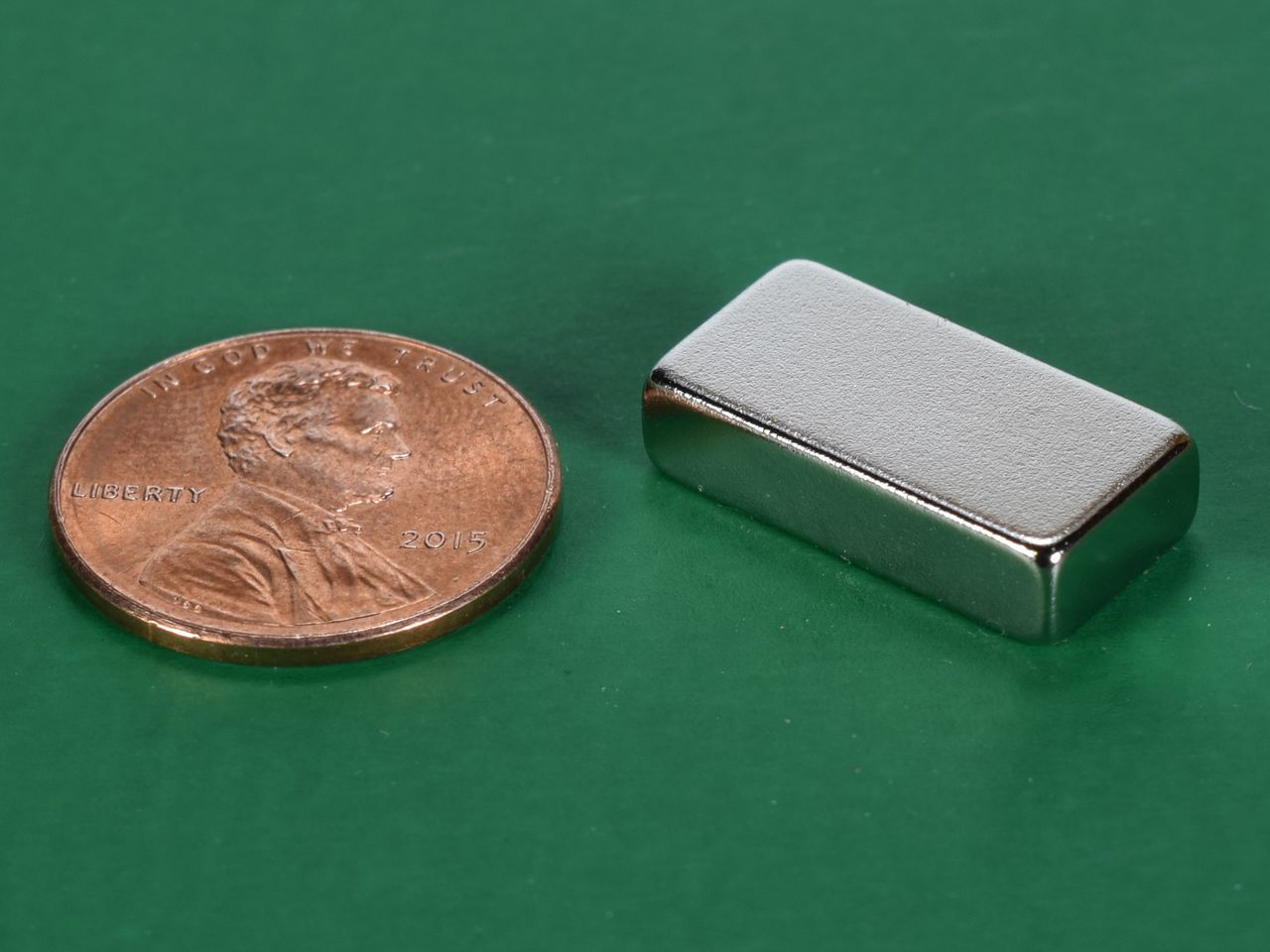

BC63 - Neodymium Block Magnet

• Dimensions: 3/4" x 3/8" x 3/16" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.229 oz. (6.48 g)
• Pull Force, Case 1: 11.97 lbs
• Pull Force, Case 2: 24.13 lbs
• Surface Field: 3723 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The BC63 is a powerful block in the increasingly popular 3/16" thickness.  This block is very strong and durable.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
