BZX084 - Neodymium Block Magnet

bzx084-neodymium-block-magnet--thumbnail-2

$14.42

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$14.42	1
$14.10	2	2%
$13.78	3-4	4%
$13.46	5-9	7%
$13.14	10-24	9%
$12.82	25-49	11%
$12.50	50-99	13%
$12.18	100-249	16%
$11.86	250-499	18%
$11.54	500-999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

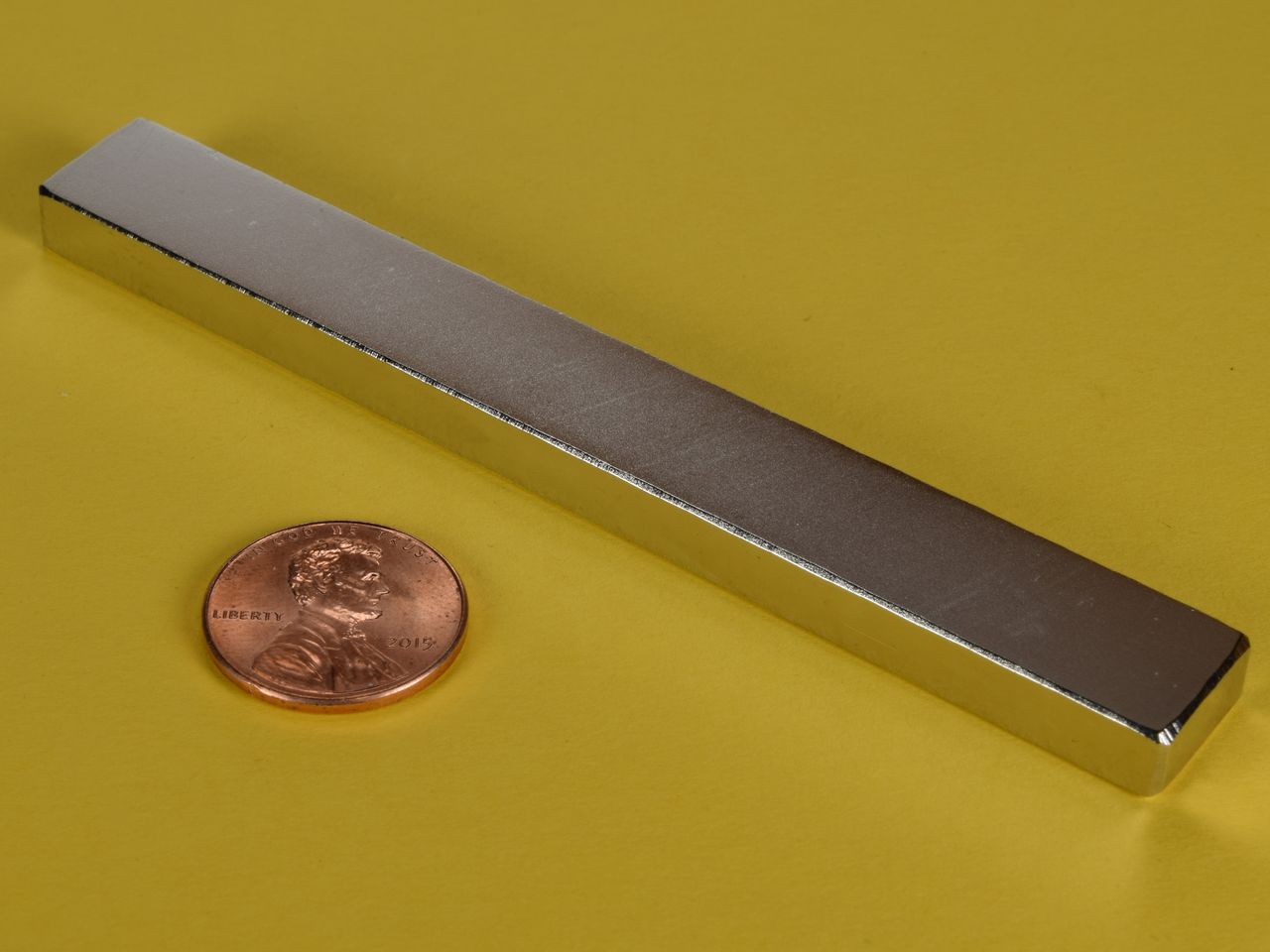

Dimensions: 4" x 1/2" x 1/4" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 2.17 oz. (61.5 g)
Pull Force, Case 1: 36.07 lbs
Pull Force, Case 2: 136.1 lbs
Surface Field: 3332 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

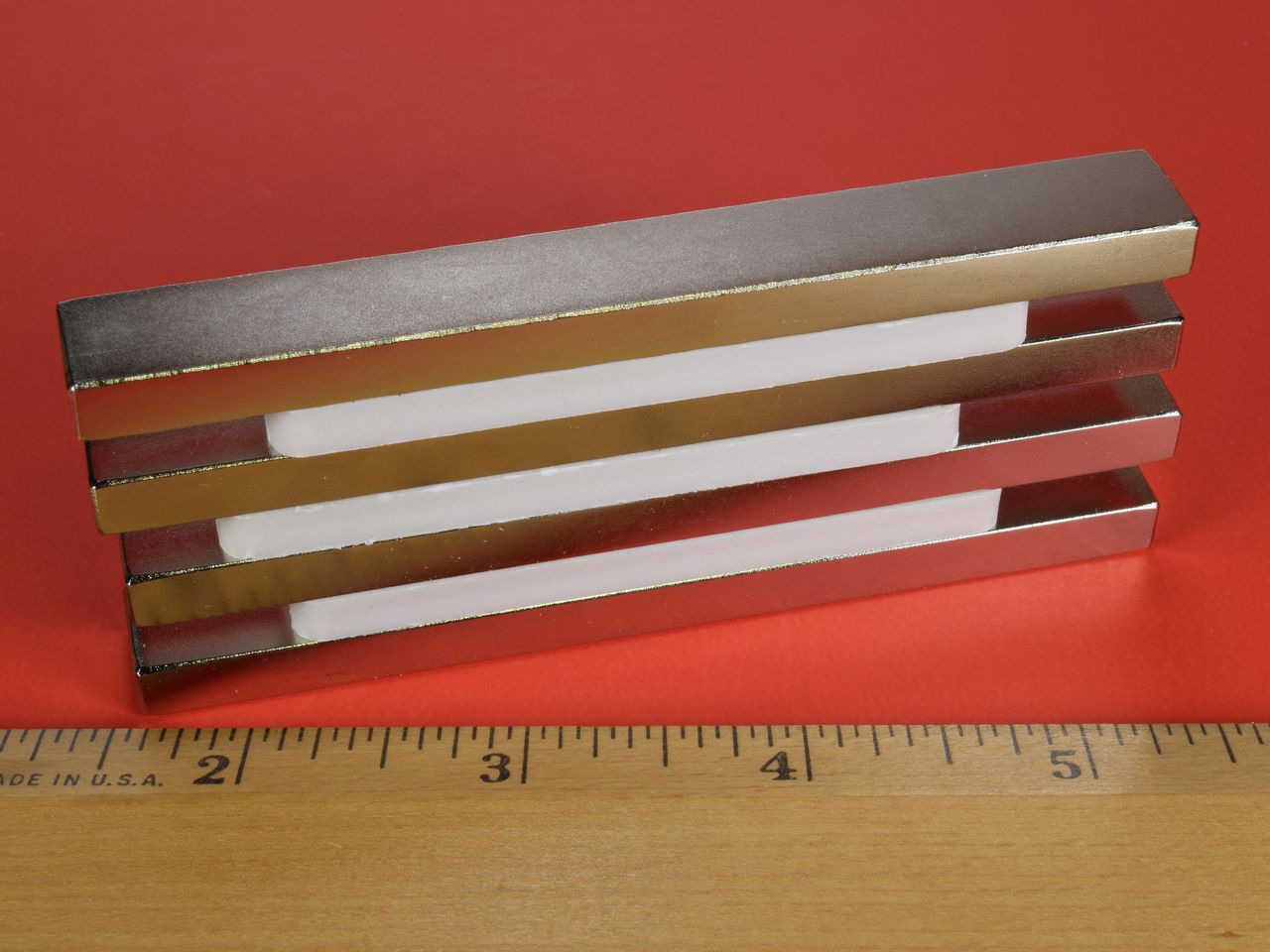

These 4" long blocks are incredibly powerful. Their strength and relatively low profile makes them perfect for holding up signs and other larger items. However, they can pinch quite hard if not handled with care, so use caution when working with these strong blocks.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
