![Magnetization direction](/images/magdir/adisc-4.png)

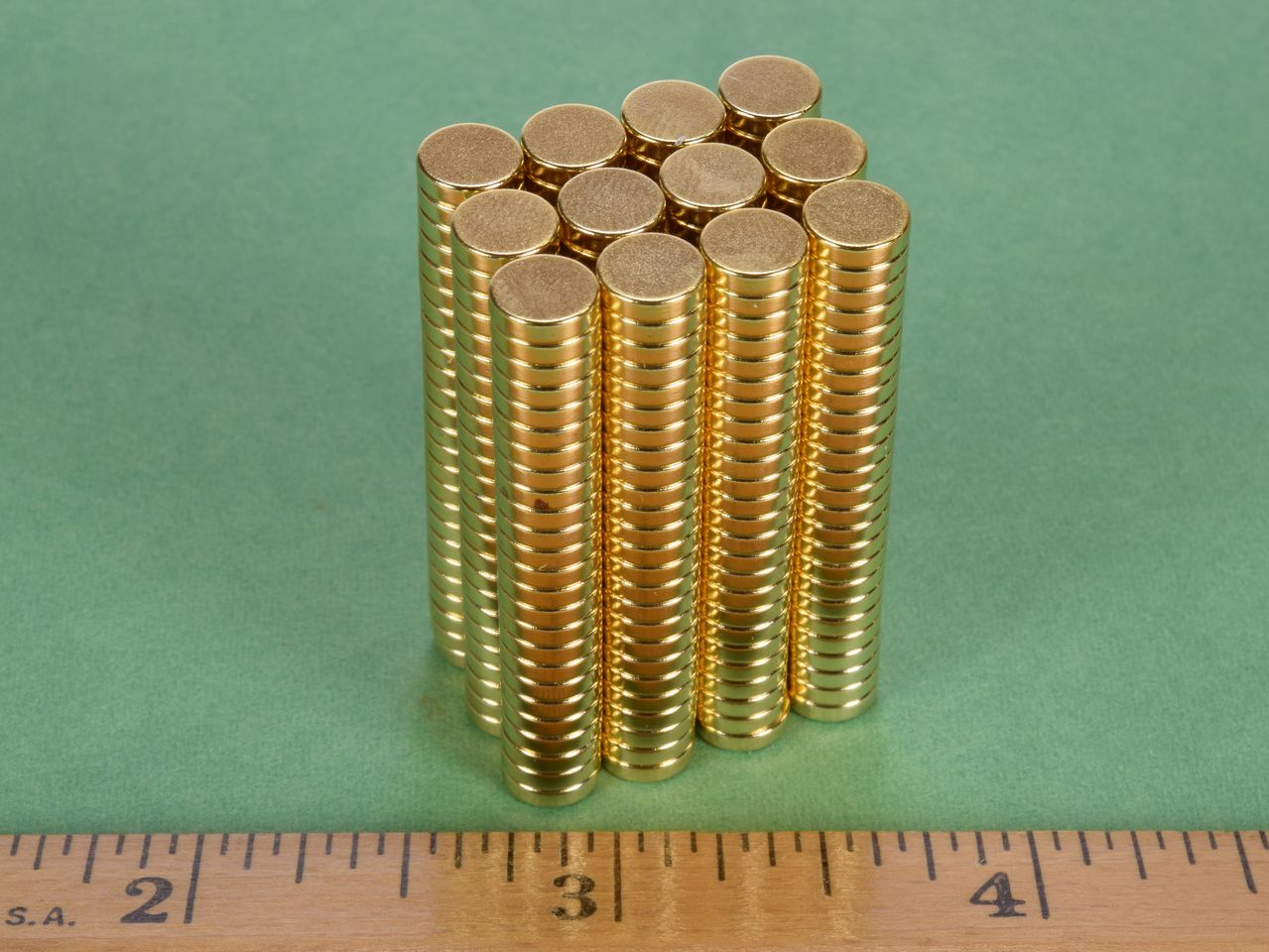

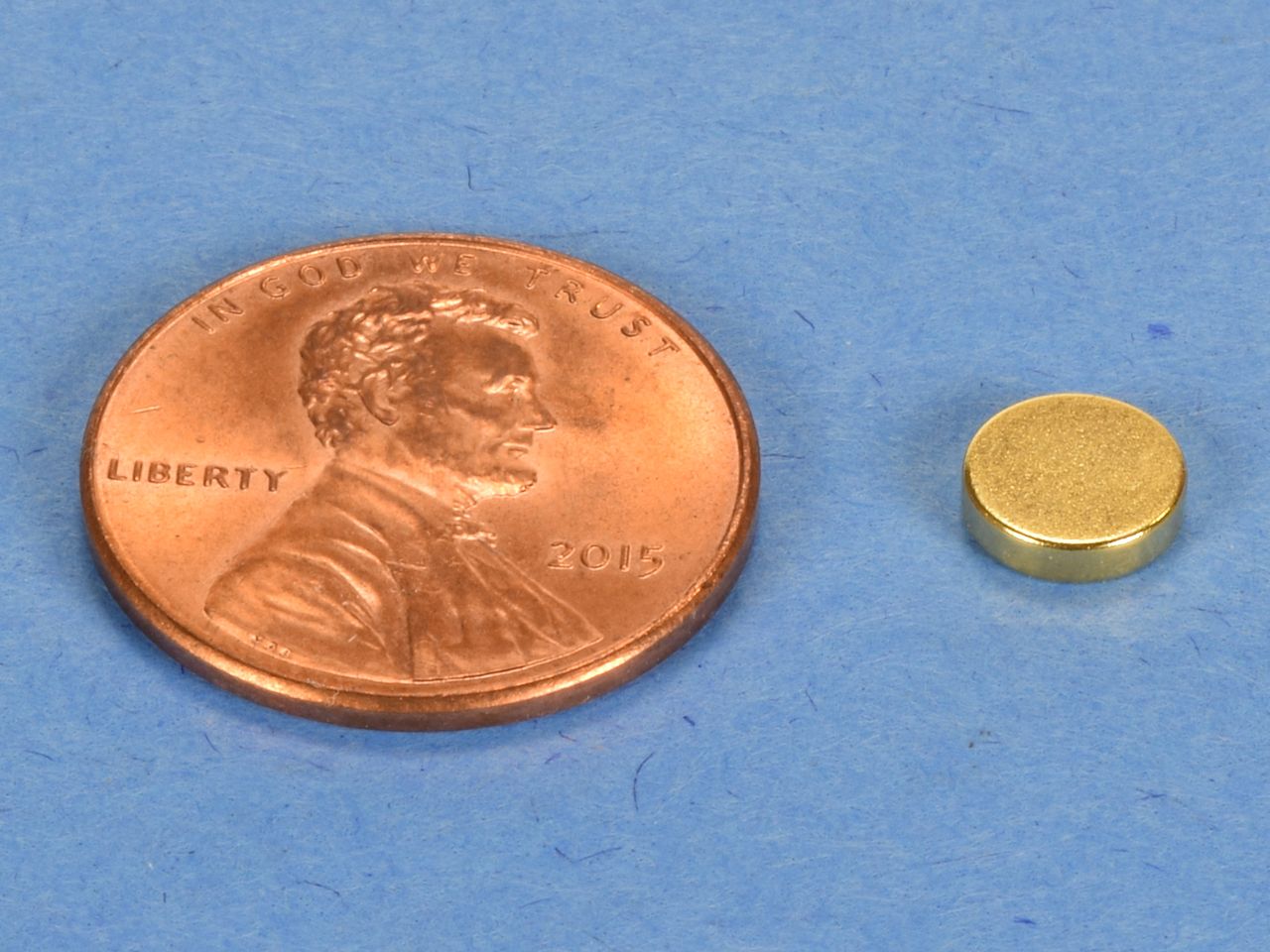

- Dimensions: 1/4" dia. x 1/16" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N52
- Plating/Coating: Ni-Cu-Ni-Au (Gold)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.0133 oz. (0.377 g)
- Pull Force, Case 1: 1.47 lbs
- Pull Force, Case 2: 4.42 lbs
- Surface Field: 3309 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 14,800 Gauss
- BHmax: 52 MGOe
This size is also available in grade N42 with silver Nickel plating as part number D41, in grade N52 with silver Nickel plating as part number D41-N52 and in High Temp grade N42SH as part number D41SH.
![]() | Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
![]() | Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
![]() | Pull Force, Case 3 vs. distance: Magnet to Magnet. |
![]() | Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
![]() | Click this link for a depiction of the magnetic field. |
![]() | View B-H curves for this magnet. |
![]() | Click this link to download a PDF Specification Sheet. |
![]() | Click this link to download a PDF drawing of this product. |
![]() | Click this link to download a Certificate of Compliance for this product. |
![]() | Click this link to download a RoHS Statement of Compliance for this product. |
![]() | Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
![]() | Click this link to download a Certificate of Origin for this product. |
![]() | Click this link for a REACH compliance statement. |
![]() | Click this link to download a .STEP file (3D model). |
![]() | Click this link to download an .IGS file (3D model). |
