D5H2 - Neodymium Disc Magnet

• Dimensions: 5/16" dia. x 2/10" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.067 oz. (1.89 g)
• Pull Force, Case 1: 4.54 lbs
• Pull Force, Case 2: 6.45 lbs
• Surface Field: 5201 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

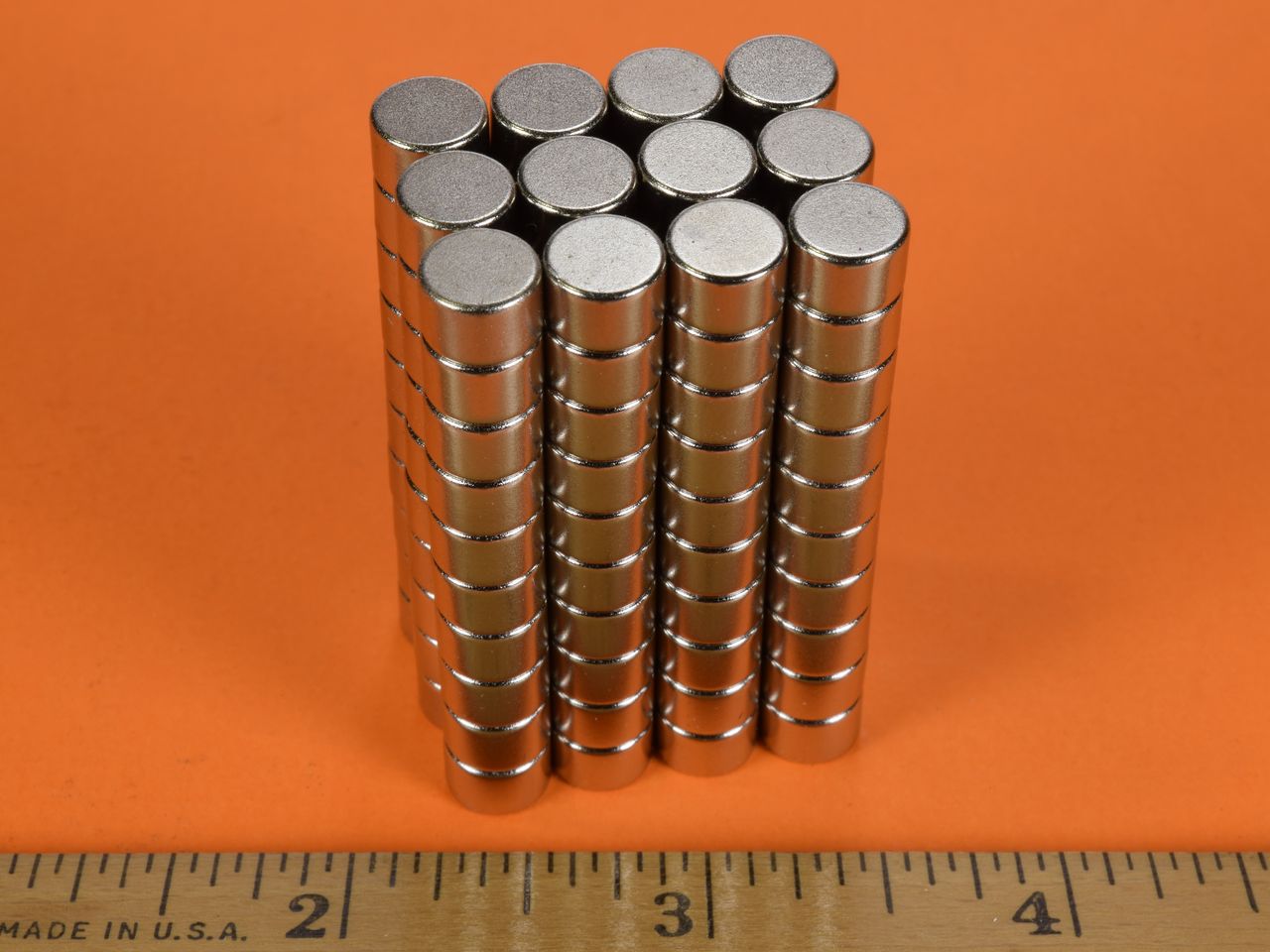

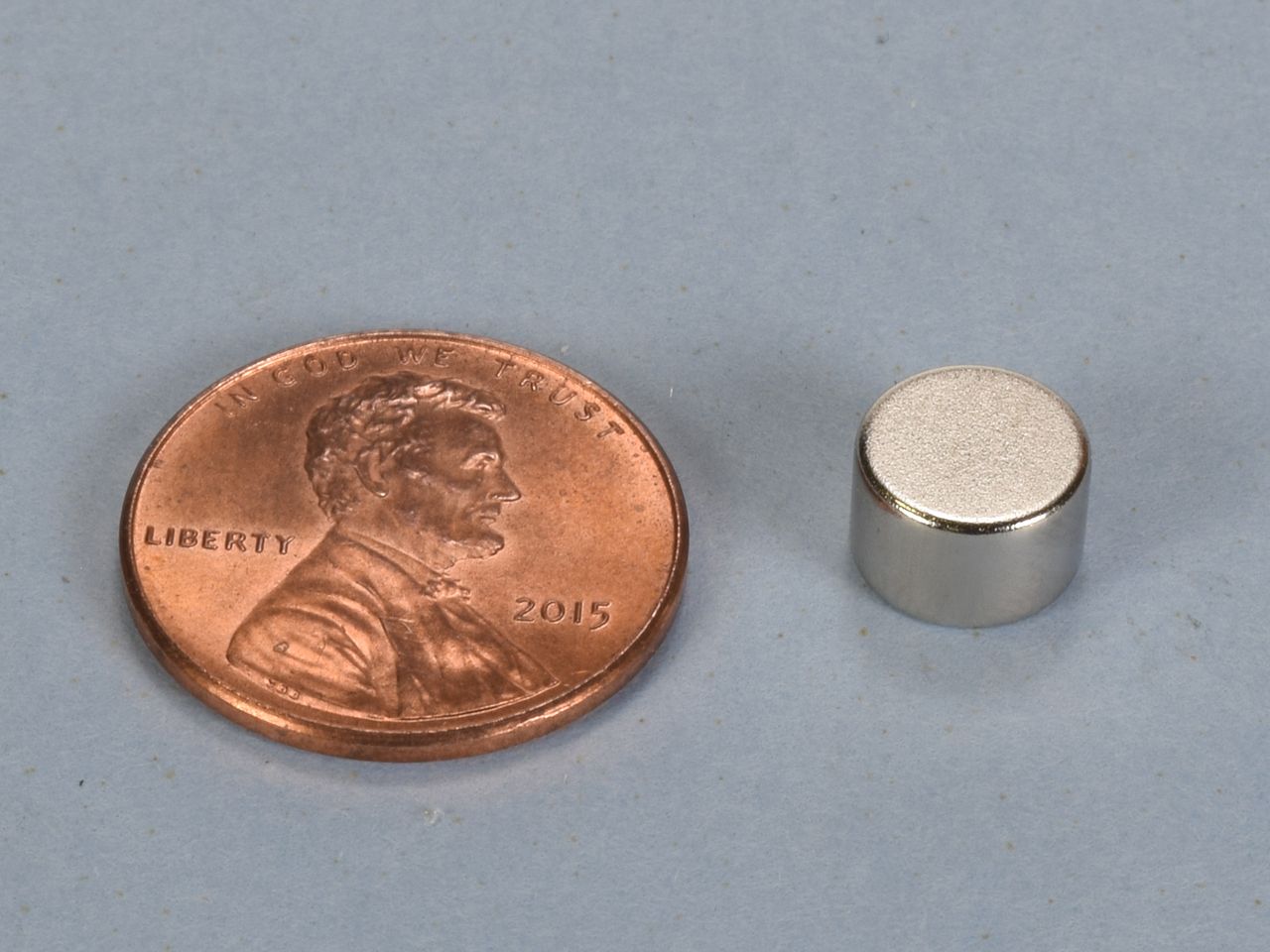

By popular demand we offer a 5/16" diameter disc in the rarely seen 2/10" (or 1/5") thickness.  A truly unique magnet for your unique application!
