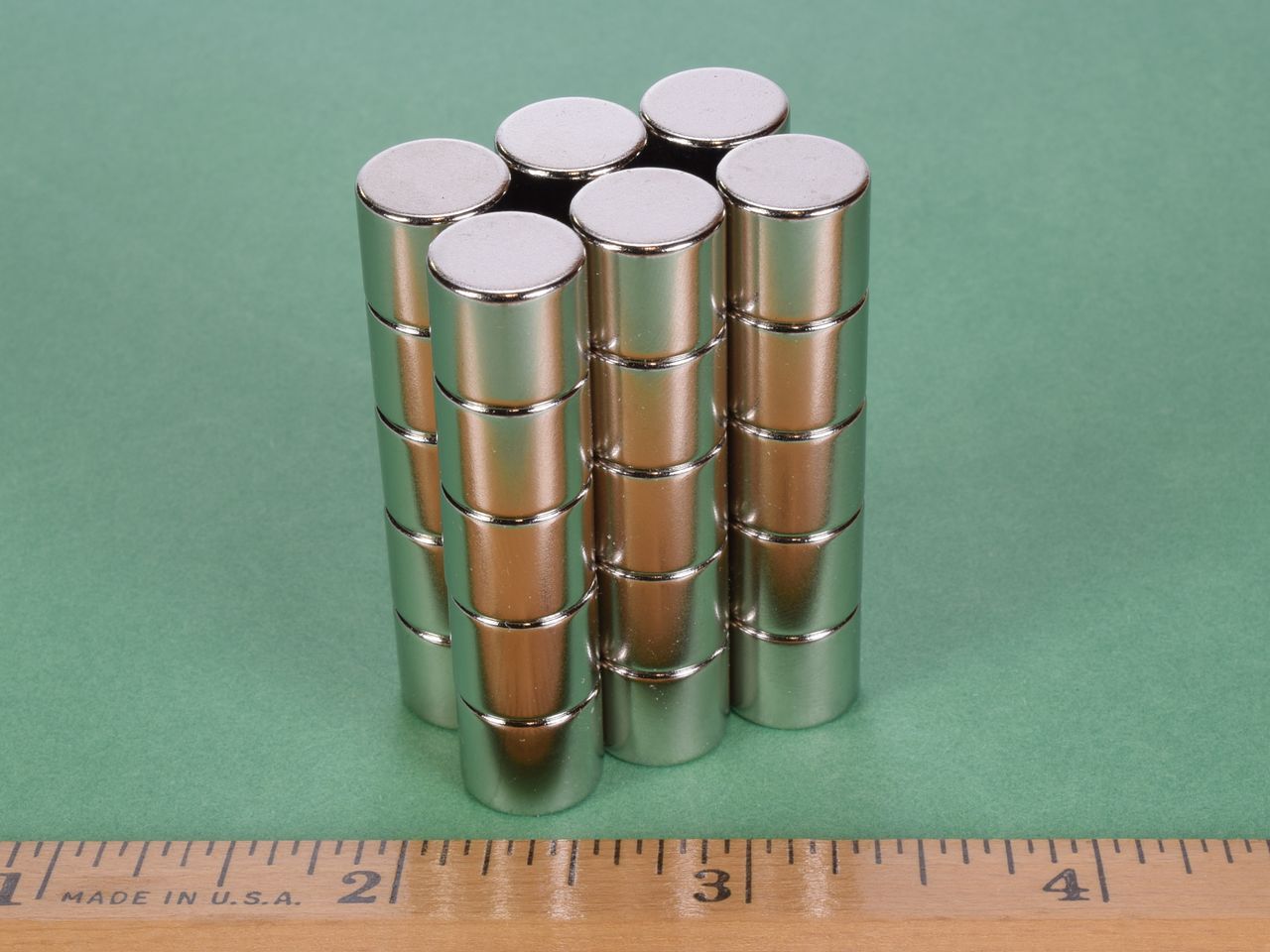

D76 - Neodymium Disc Magnet

• Dimensions: 7/16" dia. x 3/8" thick
• Tolerances: ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Axial (Poles on Flat Ends)
• Weight: 0.244 oz. (6.93 g)
• Pull Force, Case 1: 10.70 lbs
• Pull Force, Case 2: 12.70 lbs
• Surface Field: 5071 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

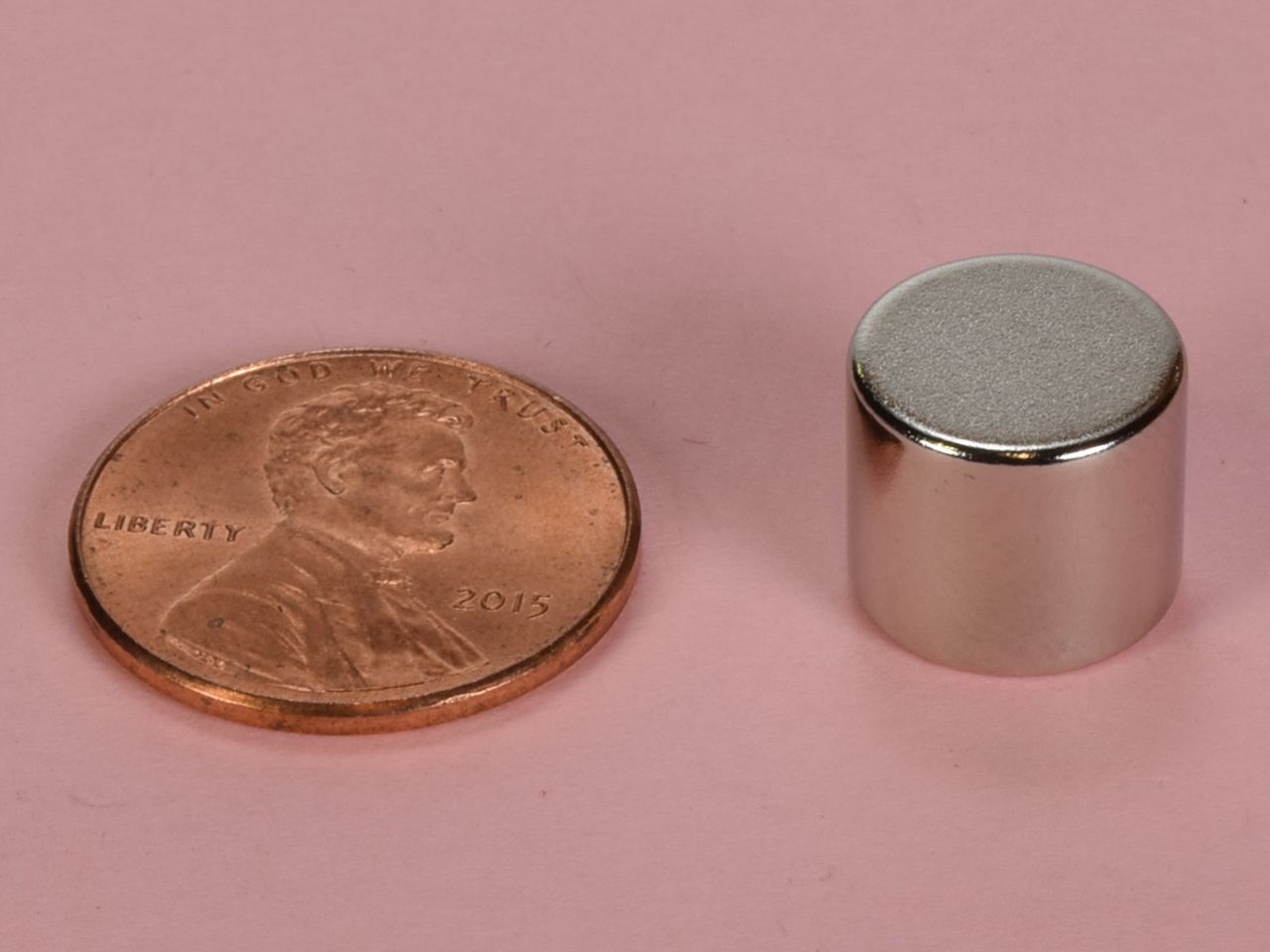

 This 7/16" diameter cylinder in the increasingly popular 3/8" thickness is easy to handle and quite powerful for it's relatively small size.  A strong and versatile little magnet!
