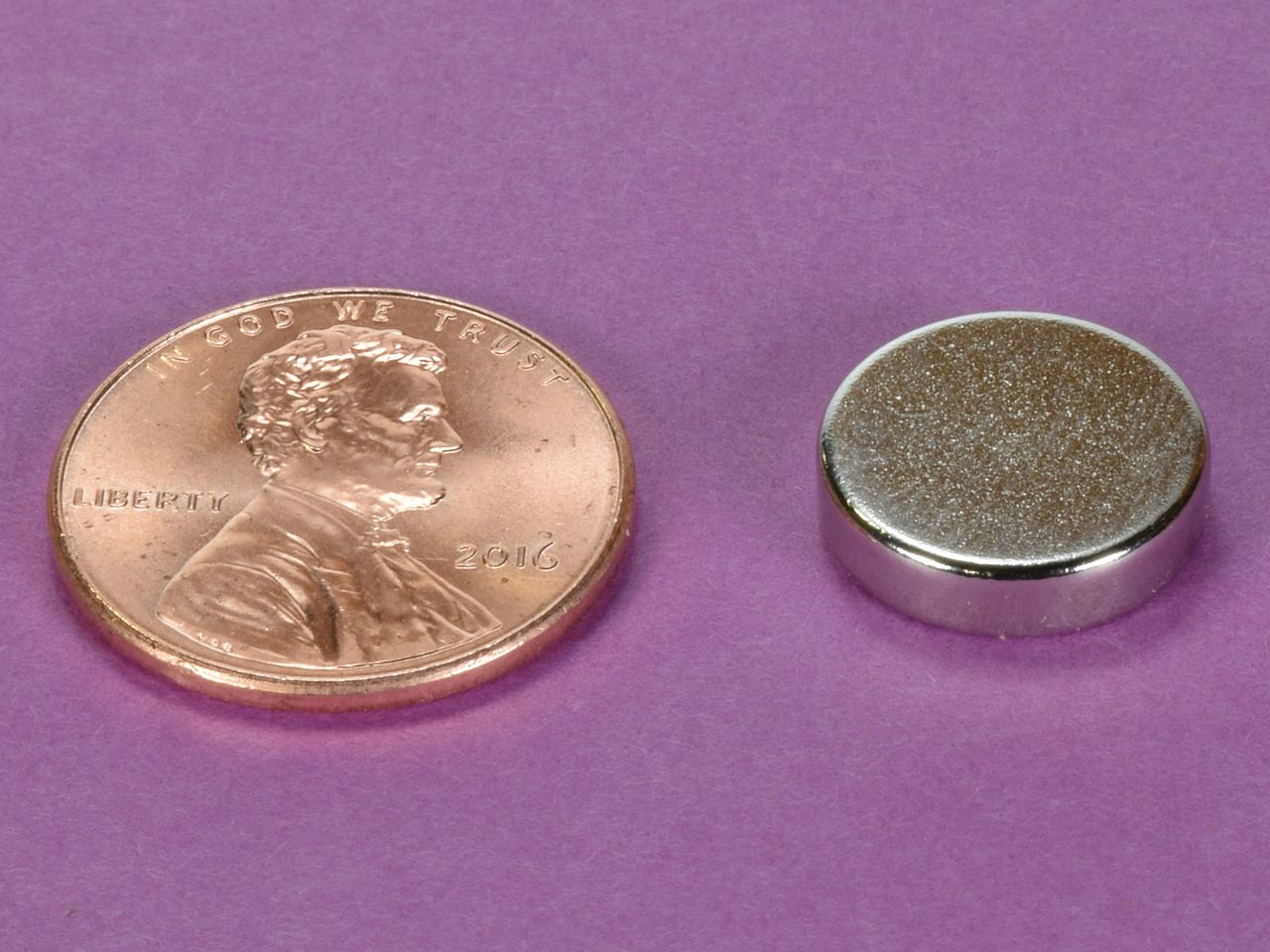

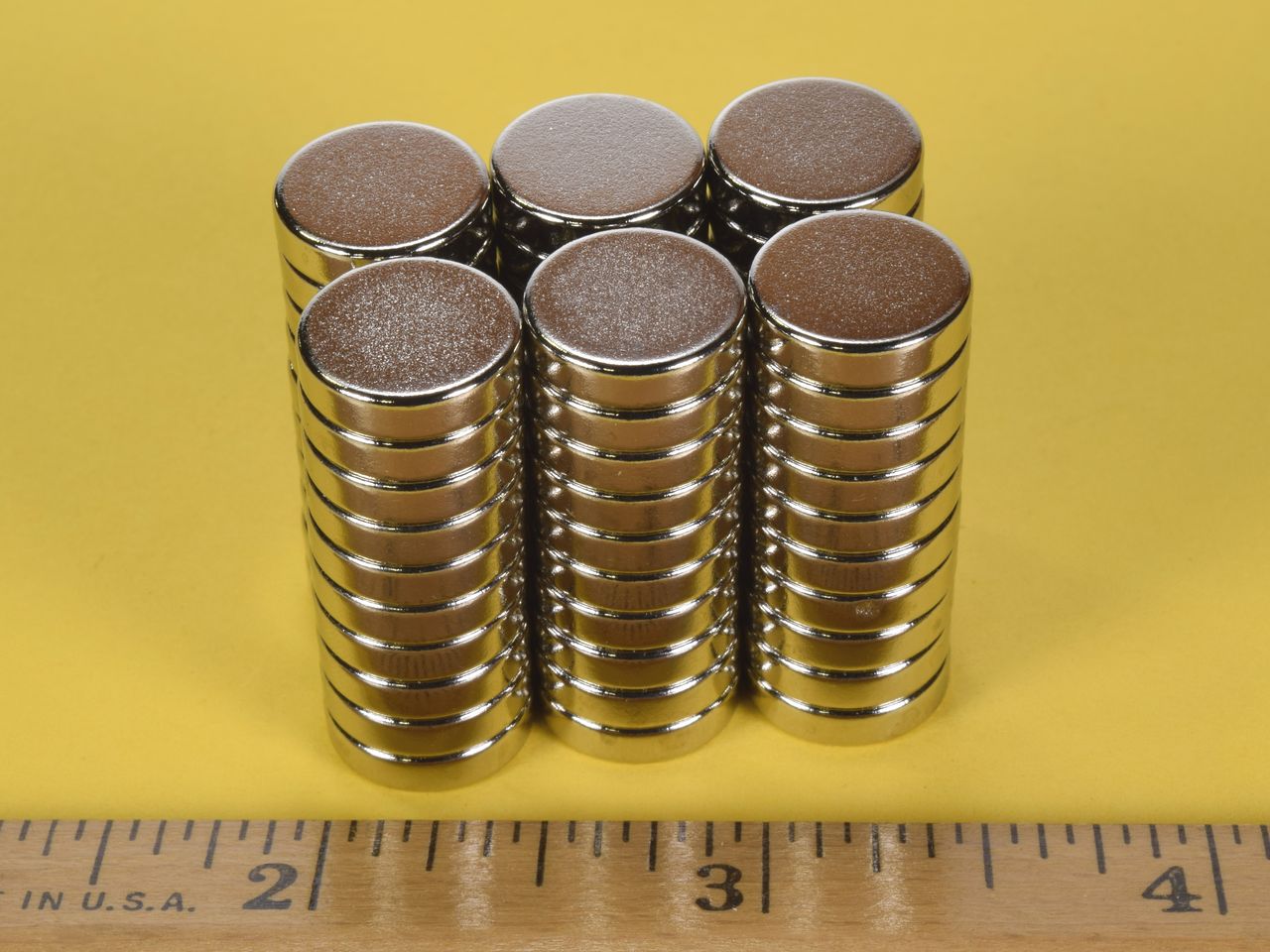

D82SH - Neodymium High Temp Disc Magnet

d82sh-neodymium-high-temp-disc-magnet--thumbnail-2

$1.49

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$1.49	1-9
$1.46	10-24	2%
$1.42	25-49	5%
$1.39	50-99	7%
$1.36	100-249	9%
$1.32	250-499	11%
$1.29	500-999	13%
$1.26	1000-2499	15%
$1.22	2500-4999	18%
$1.19	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads
Video

Dimensions: 1/2" dia. x 1/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42SH
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.106 oz. (3.02 g)
Pull Force, Case 1: 6.44 lbs
Pull Force, Case 2: 16.00 lbs
Surface Field: 2952 Gauss
Max Operating Temp: 302ºF (150ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

If you are looking for a powerful disc magnet to put in your oil pan or attach to an oil filter, this is the magnet you need. Our D82SH magnets are made with grade N42SH (SH = Super High Temperature) material. The SH material means that the magnets can be heated to 300° F without any permanent loss of magnetic strength, unlike standard neodymium magnets that begin to lose strength at 175° F. Suitable for many high temperature applications.

This size is also available in grade N42 as part number D82, in grade N52 with Black Nickel finish as part number D82B-N52, in grade N42 with a Black Epoxy coating as part number D82E, diametrically magnetized as part number D82DIA, and in grade N52 as part number D82-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
