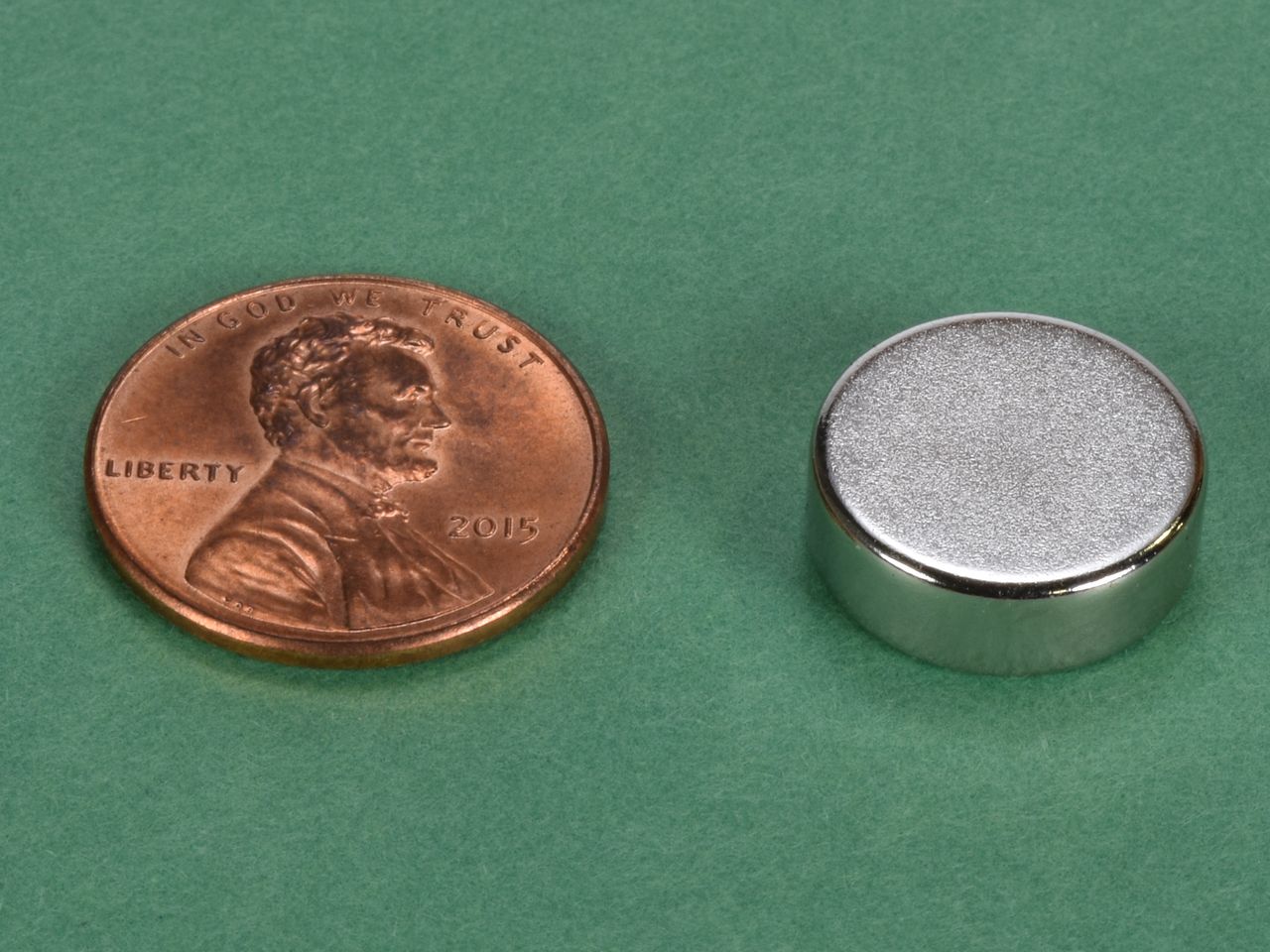

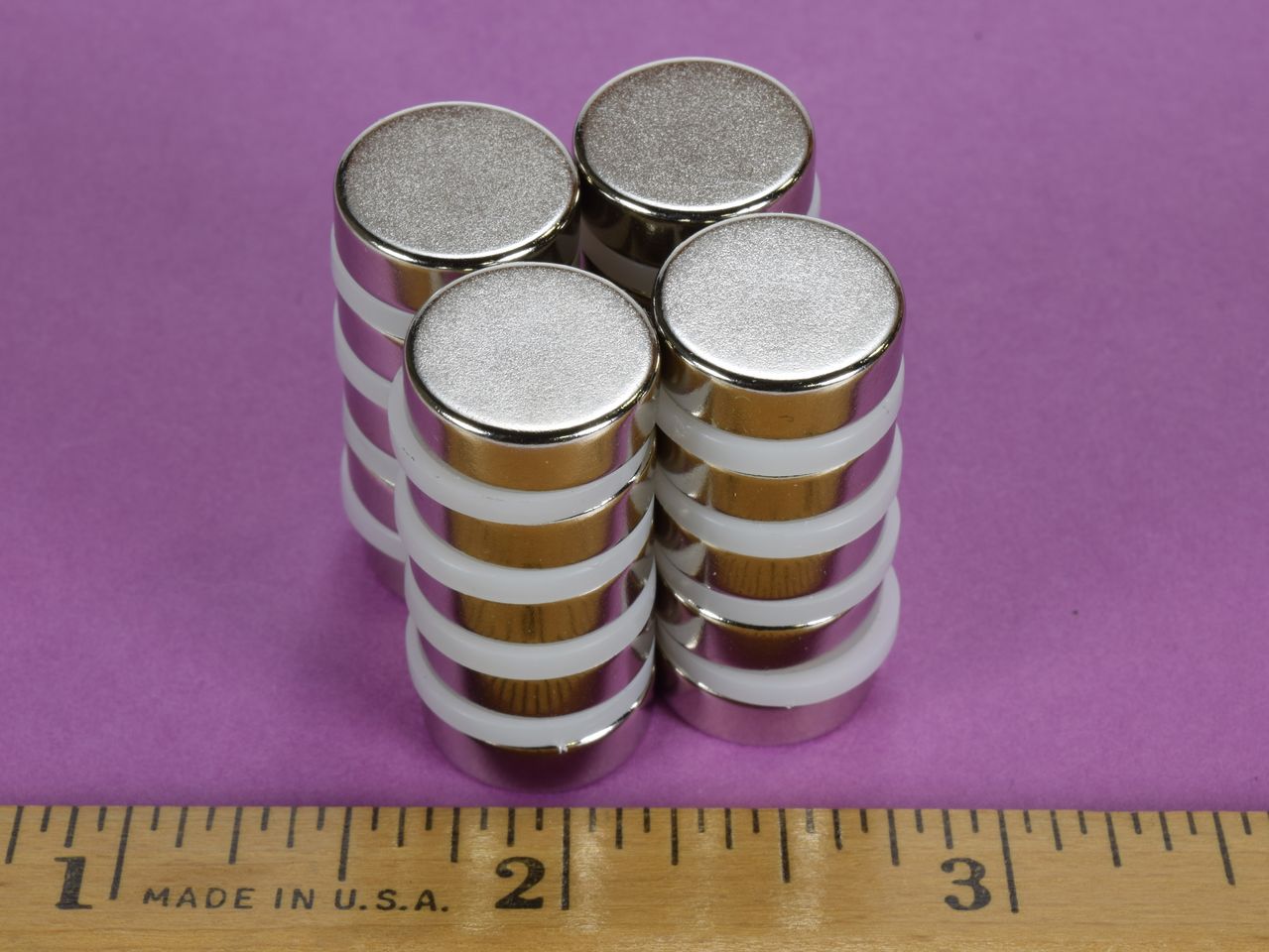

D93-N52 - Neodymium Disc Magnet

d93-n52-neodymium-disc-magnet--thumbnail-2

$2.09

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.09	1-9
$2.04	10-24	2%
$2.00	25-49	4%
$1.95	50-99	7%
$1.90	100-249	9%
$1.86	250-499	11%
$1.81	500-999	13%
$1.76	1000-2499	16%
$1.72	2500-4999	18%
$1.67	5000-9999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 9/16" dia. x 3/16" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.202 oz. (5.73 g)
Pull Force, Case 1: 13.54 lbs
Pull Force, Case 2: 26.25 lbs
Surface Field: 4105 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

If you are looking for a very strong intermediate size magnet, our D93-N52 could be the one for you. A stronger version of our D93, it is very strong and sturdy, it can hold a lot of weight. The 3/16" thickness makes it tougher and stronger than 1/8" thick neodymium magnets. Good and strong, but not overpowering.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
