![Magnetization direction](/images/magdir/adisc-2.png)
- Dimensions: 2/10" dia. x 1/10" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.0136 oz. (0.386 g)
- Pull Force, Case 1: 1.33 lbs
- Pull Force, Case 2: 2.31 lbs
- Surface Field: 4667 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe

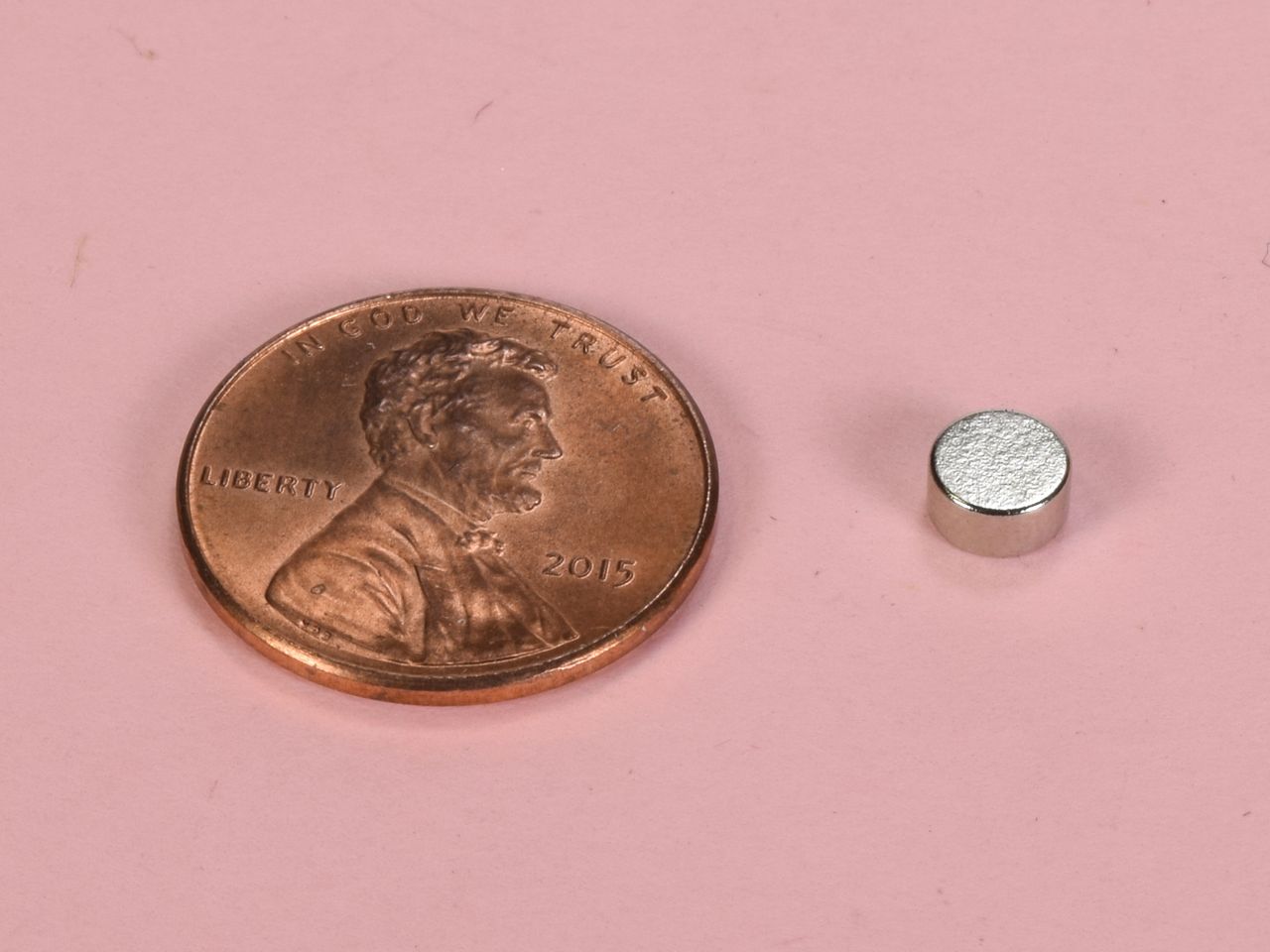

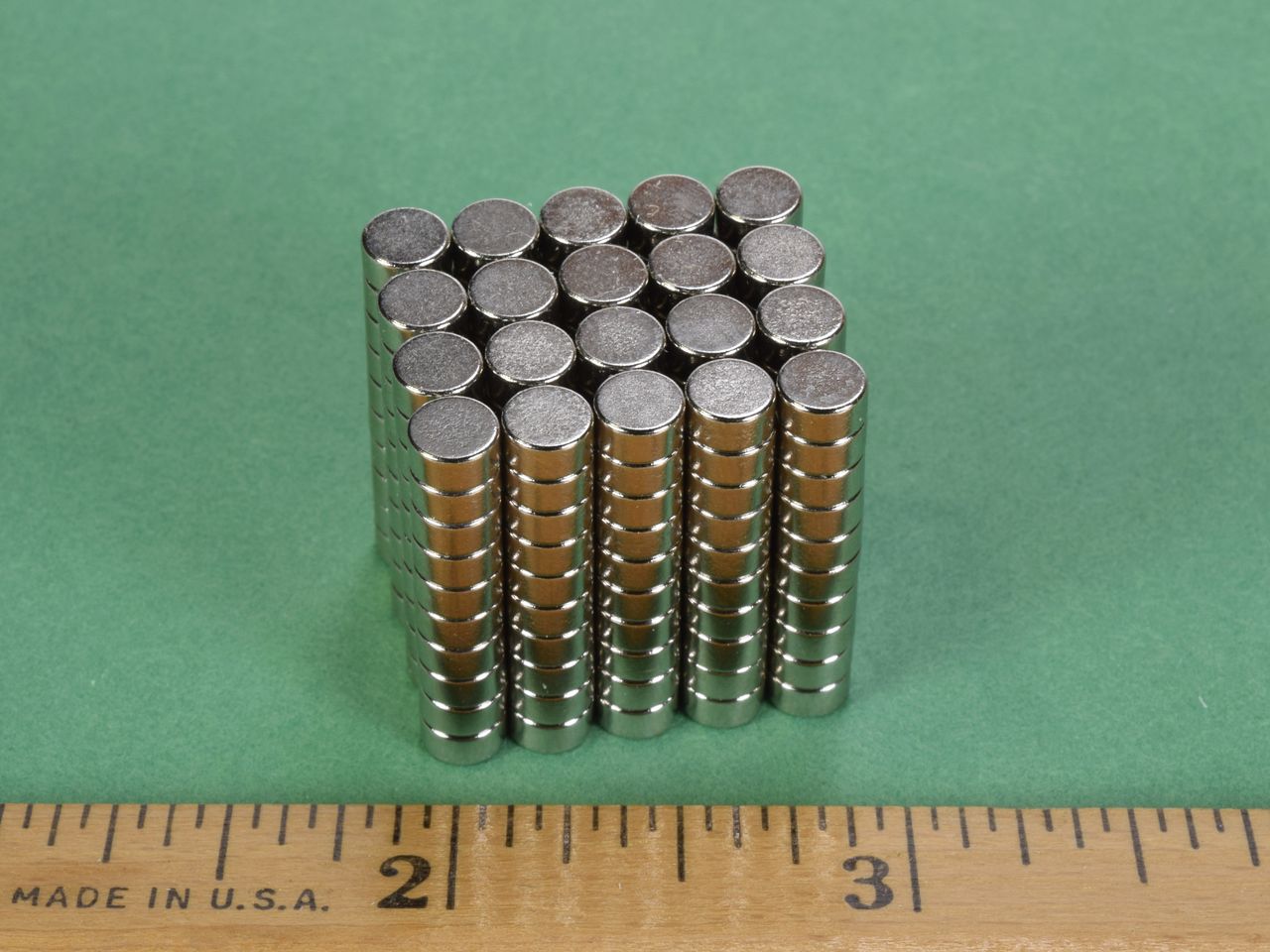

The DH2H1 is one of our newest additions featuring a true 0.200" (+/-0.004") diameter. It is also quite unique in that its thickness is a true 0.100" (+/-0.004"). These small magnets are in high demand since they are perfectly suited for use in today's ever-shrinking electronics, sensors and various medical devices. They are also great for hobbies, crafts, science experiments and so much more!
