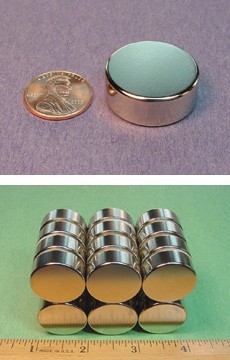

DX06 - Neodymium Disc Magnet

$8.33

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$8.33	1
$8.14	2-4	2%
$7.96	5-9	4%
$7.77	10-24	7%
$7.59	25-49	9%
$7.40	50-99	11%
$7.22	100-249	13%
$7.03	250-499	16%
$6.85	500-999	18%
$6.66	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads
Video

Dimensions: 1" dia. x 3/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 1.28 oz. (36.2 g)
Pull Force, Case 1: 37.65 lbs
Pull Force, Case 2: 59.80 lbs
Surface Field: 3960 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

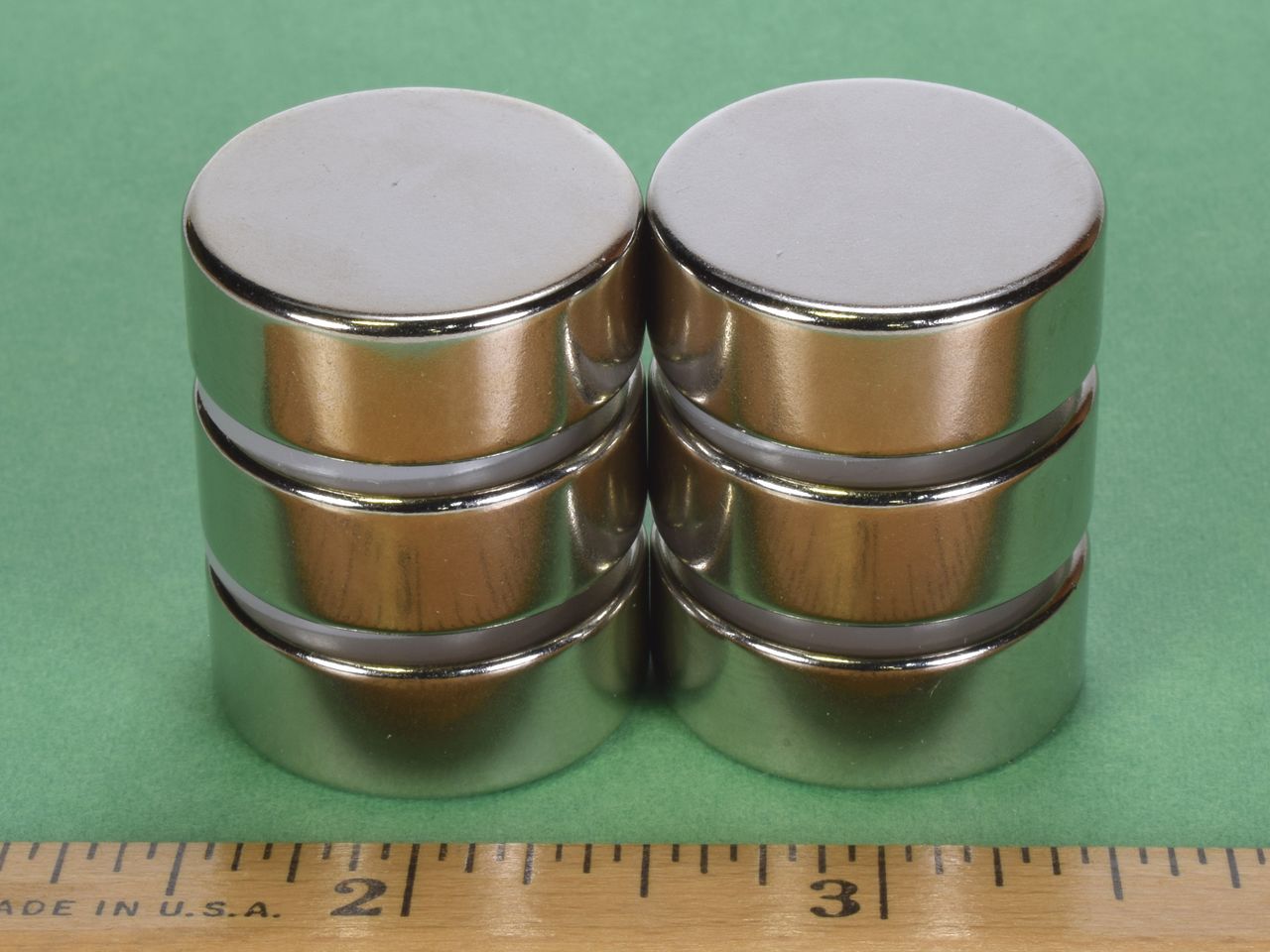

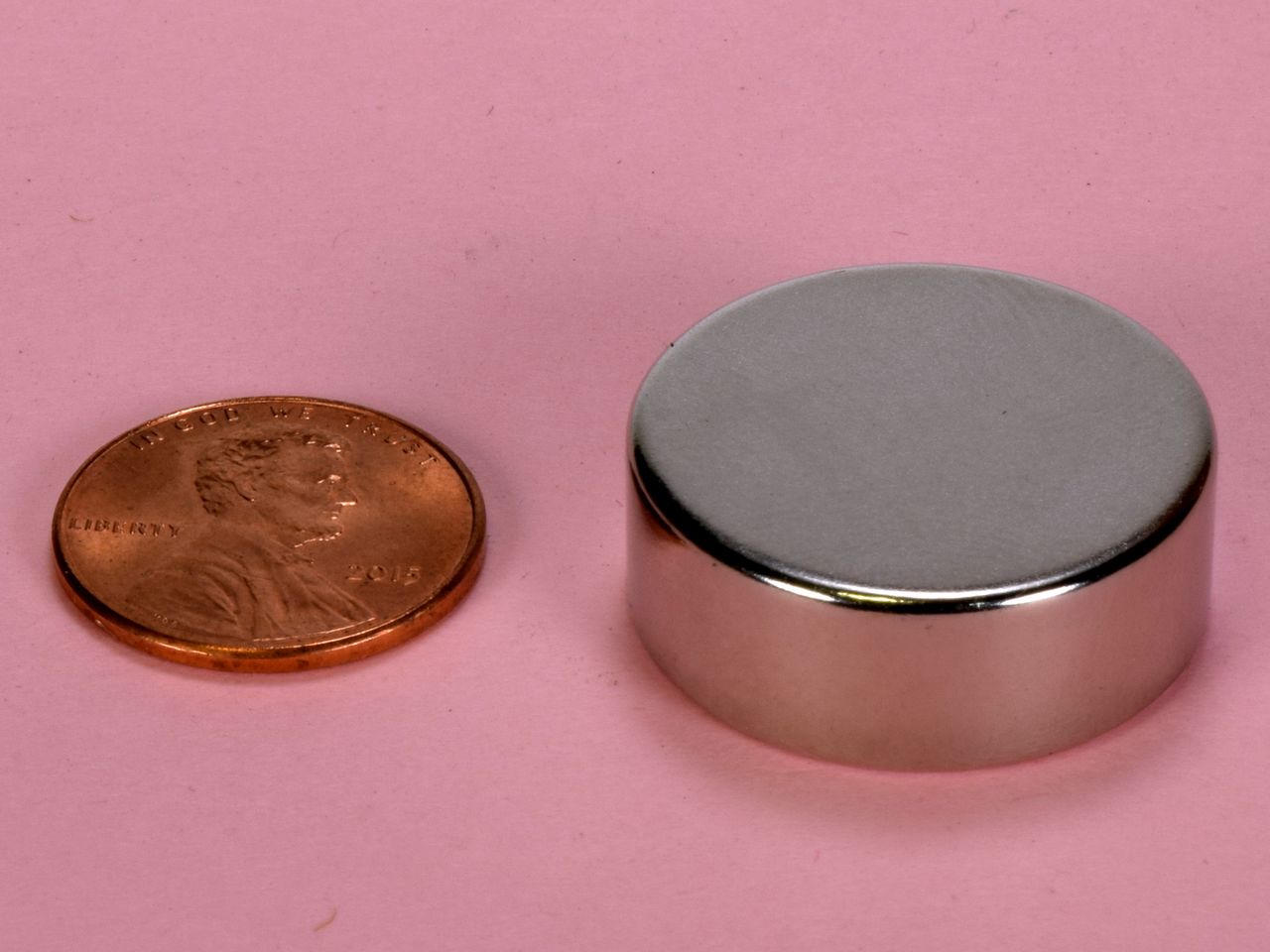

The DX06 is a powerful disc magnet in a great size. Each disc has a pull force of over 35 lbs. Separating two of these strong discs will require a great deal of effort. Take care when handling!

This size is also available in grade N52 as part number DX06-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
