DY84 - Neodymium Disc Magnet

$33.41

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$33.41	1
$32.67	2	2%
$31.93	3-4	4%
$31.18	5-6	7%
$30.44	7-9	9%
$29.70	10-24	11%
$28.96	25-49	13%
$28.21	50-99	16%
$27.47	100-249	18%
$26.73	250-499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 2 1/2" dia. x 1/4" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 5.32 oz. (150.8 g)
Pull Force, Case 1: 54.70 lbs
Pull Force, Case 2: 274.7 lbs
Surface Field: 1294 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

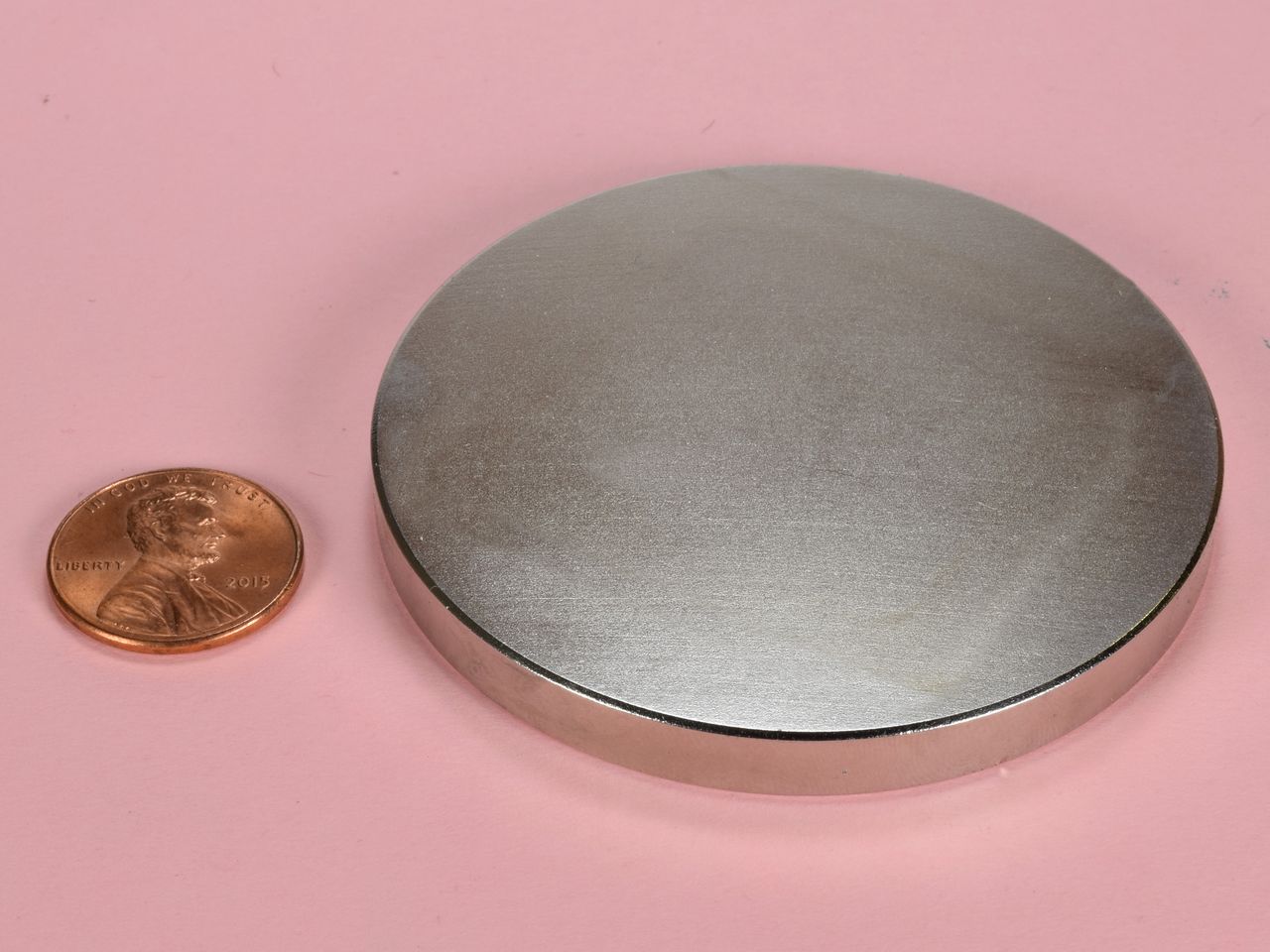

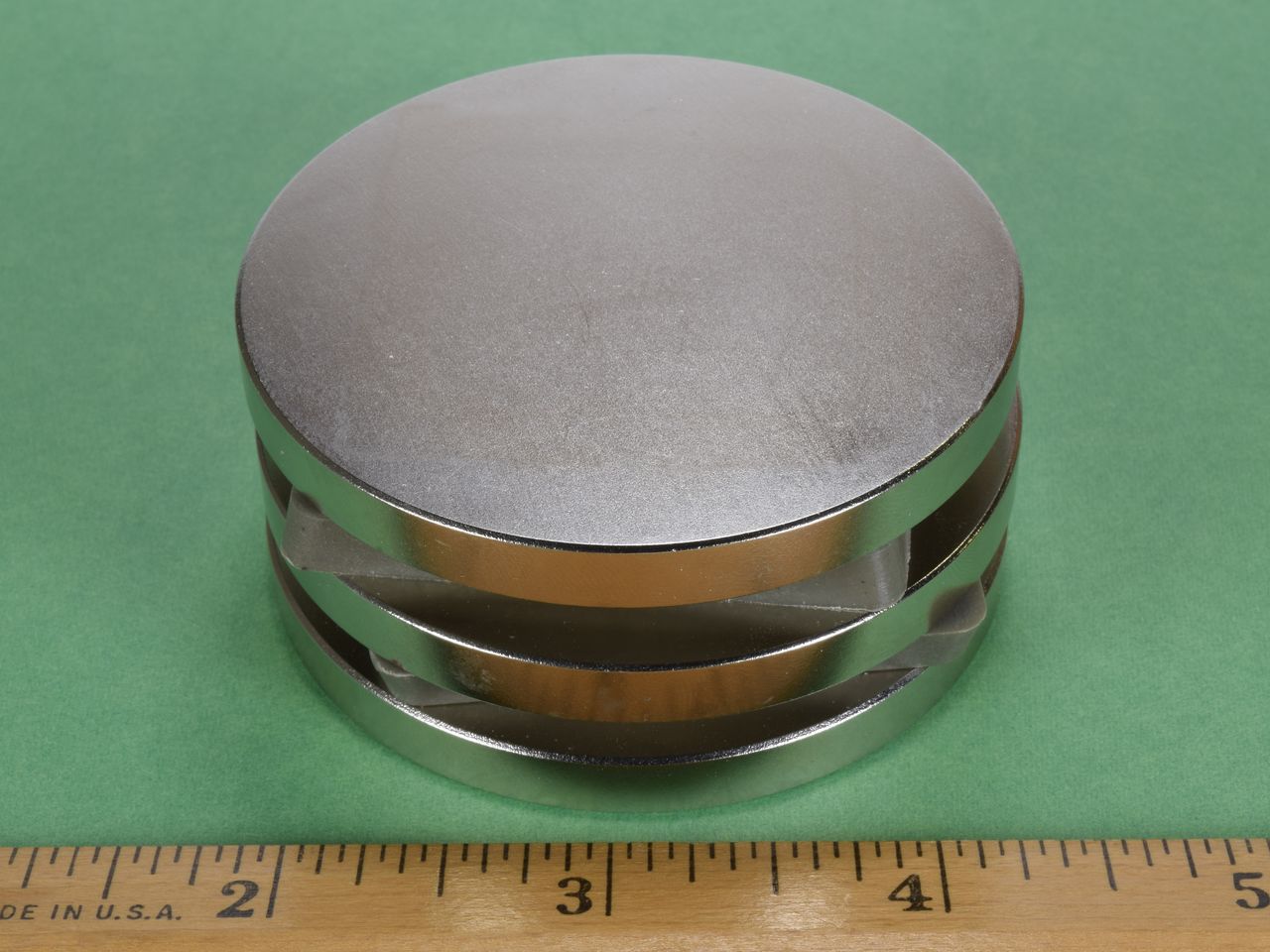

These powerful 2 1/2" discs are incredibly useful for a wide range of STRONG holding applications. The 1/4" thickness makes them very powerful, so they must be handled with care to avoid damage to the magnets and physical injury. The DY84 magnets can pinch very hard and therefore are not for the neodymium magnet amateur.

Please read our Neodymium Magnet Safety Page before ordering.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
