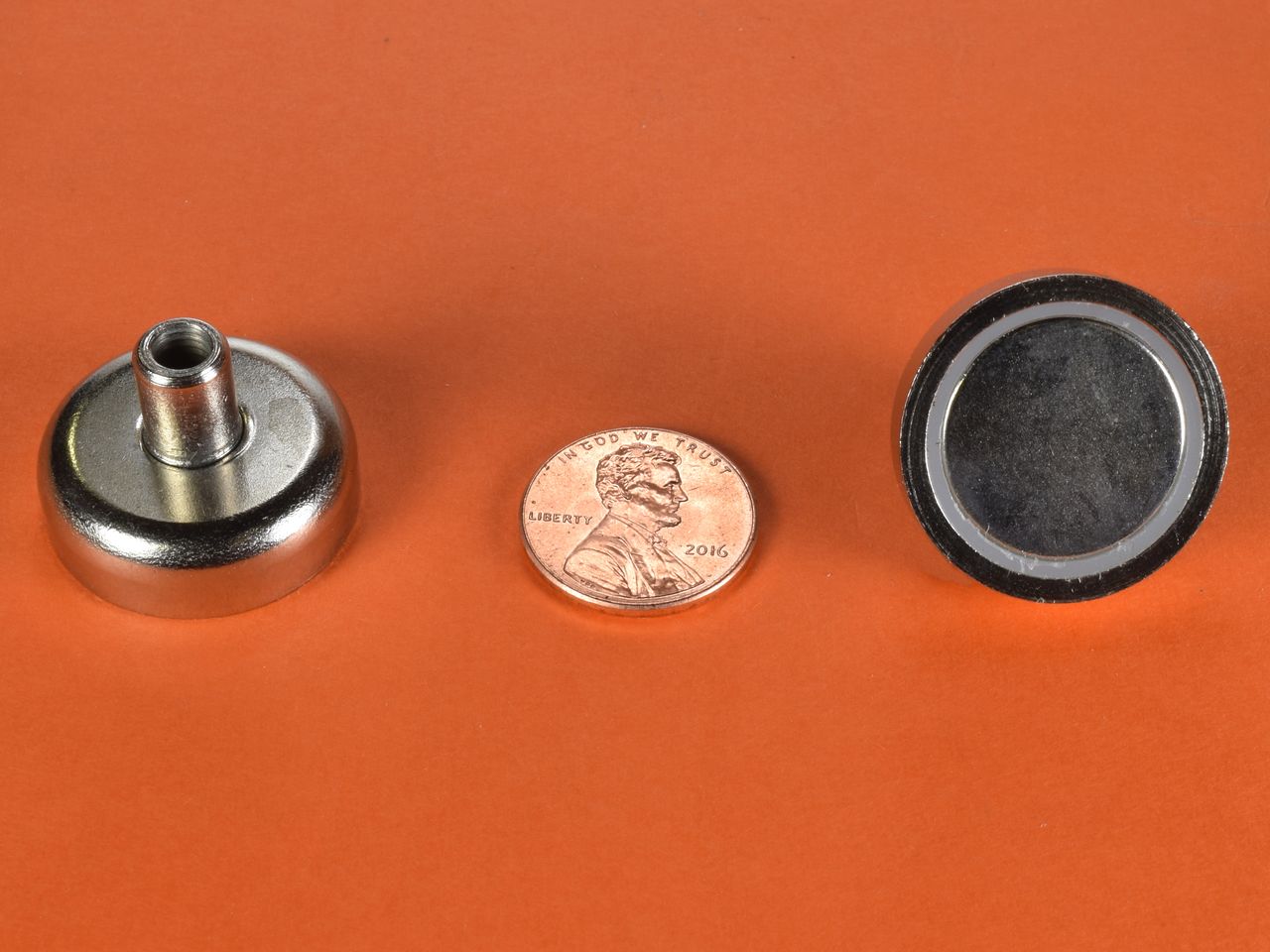

- Dimensions:

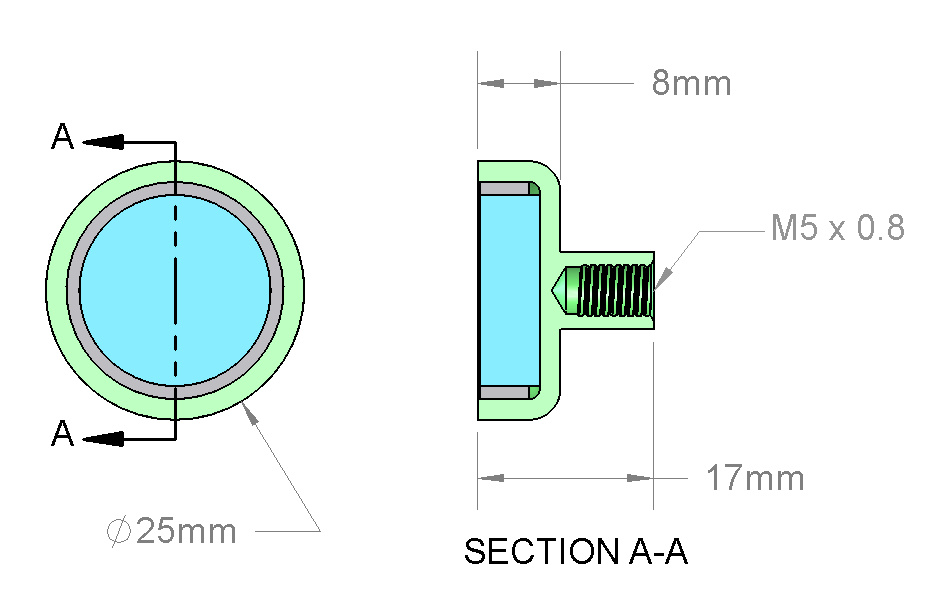

D=25mm (0.98")
d=5mm (0.20") (M5 Coarse Female threaded stud)
H=17mm (0.67")
h=8mm (0.31")
M=8mm (0.31") - Material: NdFeB, Grade N38
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.98 oz. (27.8 g)
- Pull Force: 48.5 lbs
- Surface Field: N/A
- Brmax: 12,600 Gauss
- BHmax: 38 MGOe
