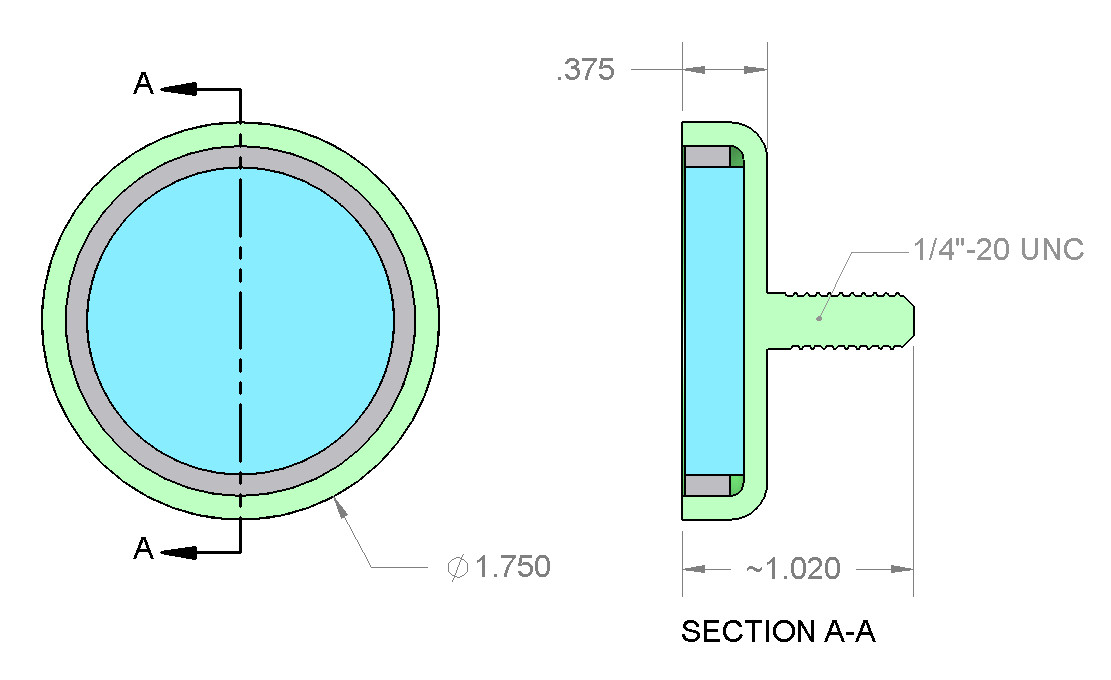

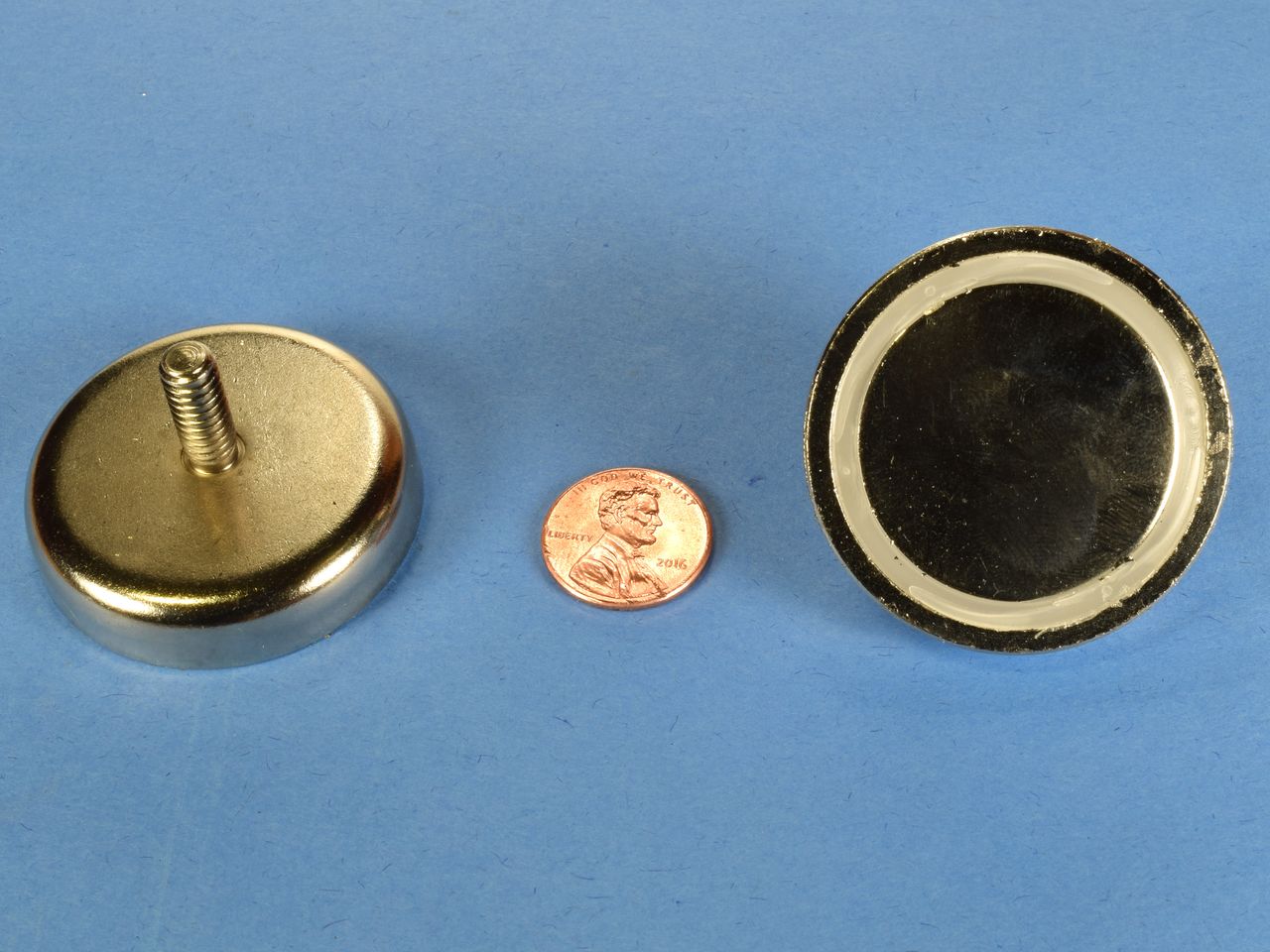

- Dimensions:
Diameter = 1 3/4" (1.75")
Threaded Male Stud = 1/4"-20 UNC 2A
Height = 3/8" (0.375") - Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 3.70 oz. (105.0 g)
- Pull Force: 125.4 lbs
- Surface Field: N/A
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe
![]() |
Click this link for a depiction of the magnetic field. |
![]() |
View B-H curves for this magnet. |
![]() |
Click this link to download a PDF Specification Sheet. |
![]() |
Click this link to download a PDF drawing of this product. |
![]() |
Click this link to download a Certificate of Compliance for this product. |
![]() |
Click this link to download a RoHS Statement of Compliance for this product. |
![]() |
Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
![]() |
Click this link to download a Conflict Minerals Reporting Template (CMRT). |
![]() |
Click this link to download a Certificate of Origin for this product. |
![]() | Click this link for a REACH compliance statement. |
![]() |
Click this link to download a .STEP file (3D model). |
![]() |
Click this link to download an .IGS file (3D model). |
