MMS-H-X8 - Neodymium Internal Thread Mounting Magnet

mms-h-x8-neodymium-internal-thread-mounting-magnet

mms-h-x8-neodymium-internal-thread-mounting-magnet--thumbnail-1

mms-h-x8-neodymium-internal-thread-mounting-magnet--thumbnail-2

$9.60

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$9.60	1
$9.39	2-4	2%
$9.17	5-9	4%
$8.96	10-24	7%
$8.75	25-49	9%
$8.53	50-99	11%
$8.32	100-249	13%
$8.11	250-499	16%
$7.89	500-999	18%
$7.68	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

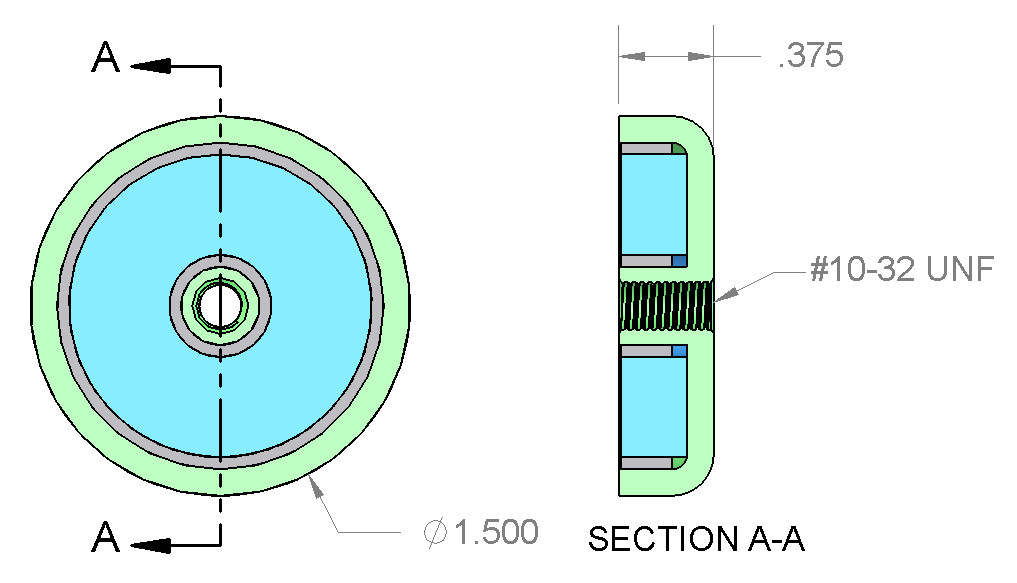

Dimensions:
    Diameter = 1 1/2" (1.5")
    Internal Thread Size = #10-32 UNF 2B
    Height = 3/8" (0.375")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 2.65 oz. (75.21 g)
Pull Force: 103.6 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

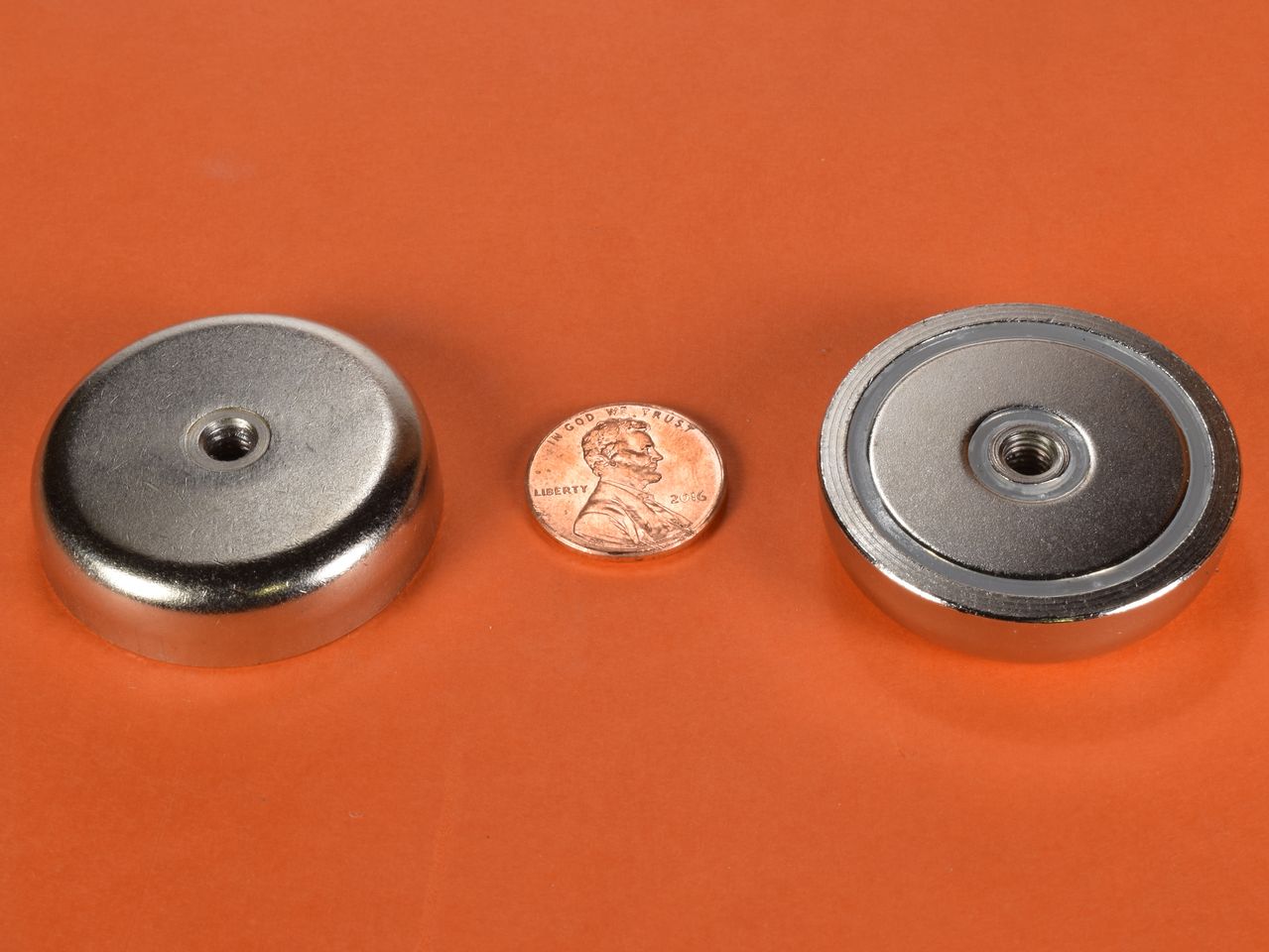

The MMS-H style is a flat mounting magnet with an internal thread in the center. These unique mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
