MMS-H-XC - Neodymium Internal Thread Mounting Magnet

mms-h-xc-neodymium-internal-thread-mounting-magnet

mms-h-xc-neodymium-internal-thread-mounting-magnet--thumbnail-1

mms-h-xc-neodymium-internal-thread-mounting-magnet--thumbnail-2

$13.92

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$13.92	1
$13.61	2	2%
$13.30	3-4	4%
$12.99	5-9	7%
$12.68	10-24	9%
$12.38	25-49	11%
$12.07	50-99	13%
$11.76	100-249	16%
$11.45	250-499	18%
$11.14	500-999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

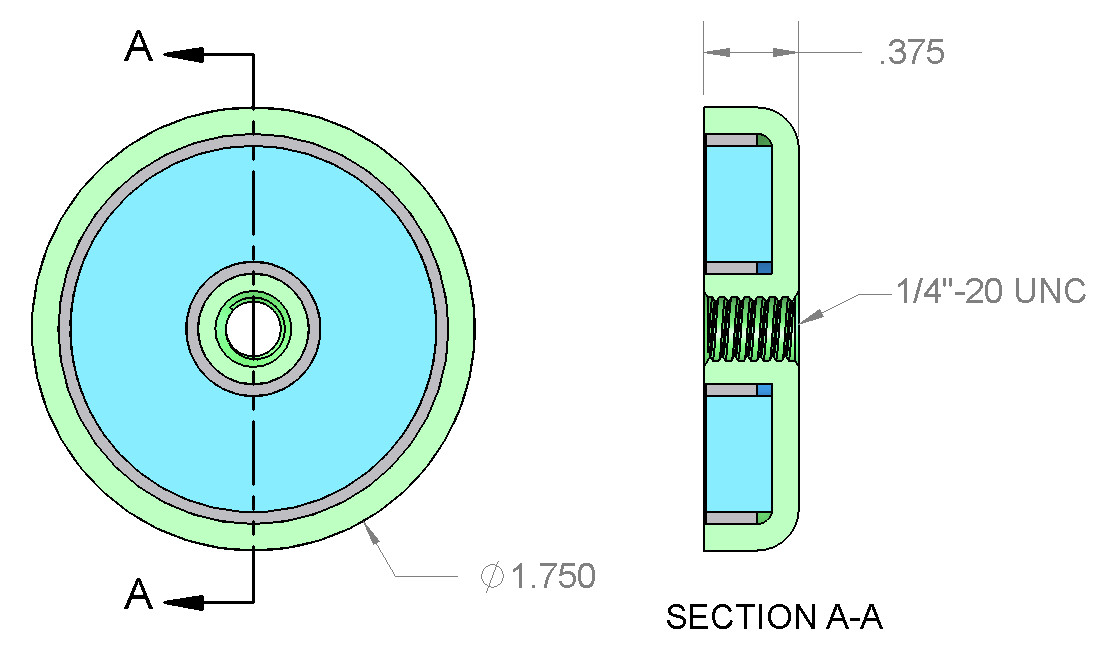

Dimensions:
    Diameter = 1 3/4" (1.75")
    Internal Thread Size = 1/4"-20 UNC 2B
    Height = 3/8" (0.375")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 3.62 oz. (102.67 g)
Pull Force: 142.05 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

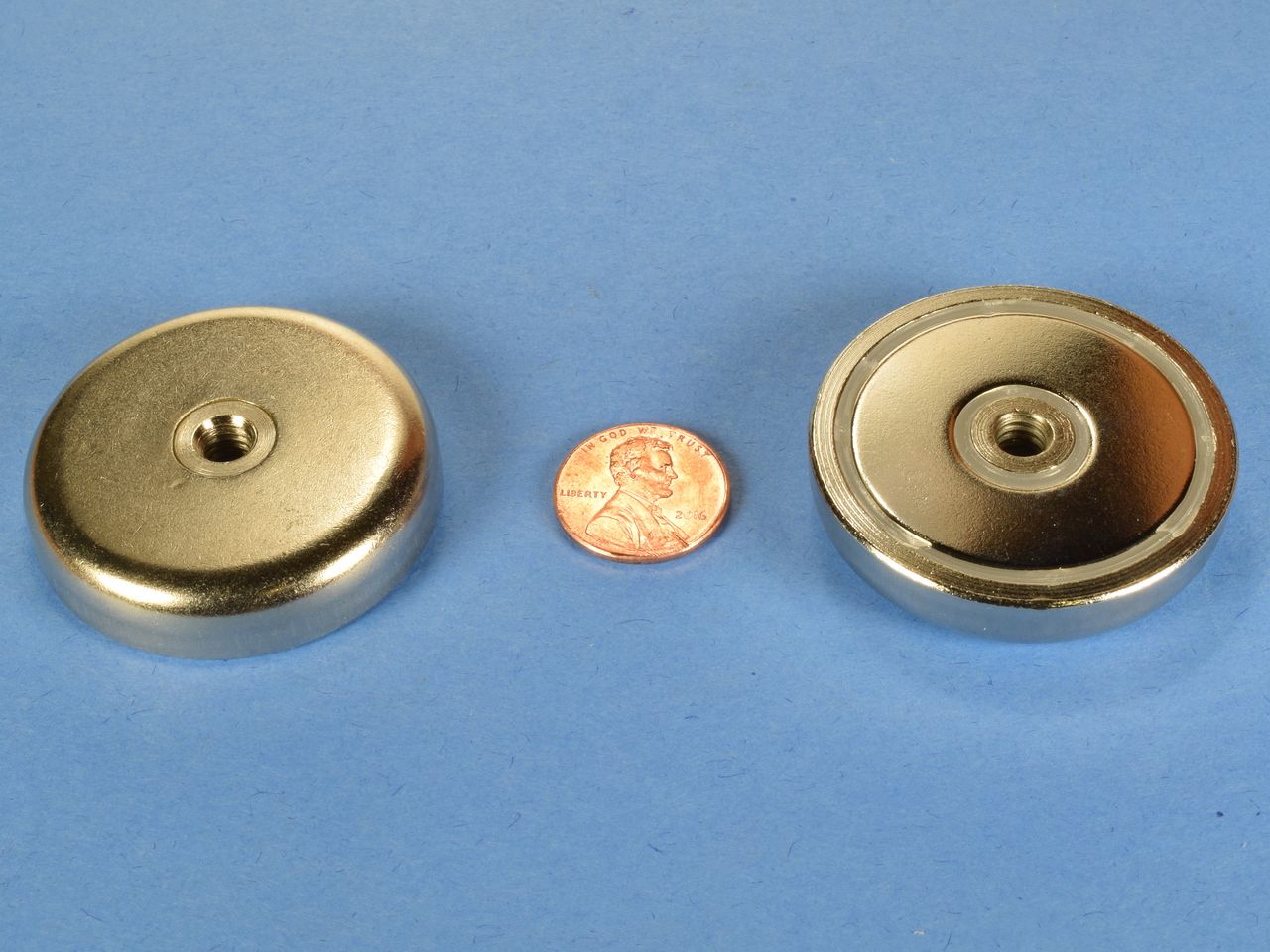

The MMS-H style is a flat mounting magnet with an internal thread in the center. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
