D101-N52 - Neodymium Disc Magnet

Description
Technical
Downloads

Dimensions: 1/16" dia. x 1/32" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.000416 oz. (0.0118 g)
Pull Force, Case 1: 0.07 lbs
Pull Force, Case 2: 0.11 lbs
Surface Field: 5233 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

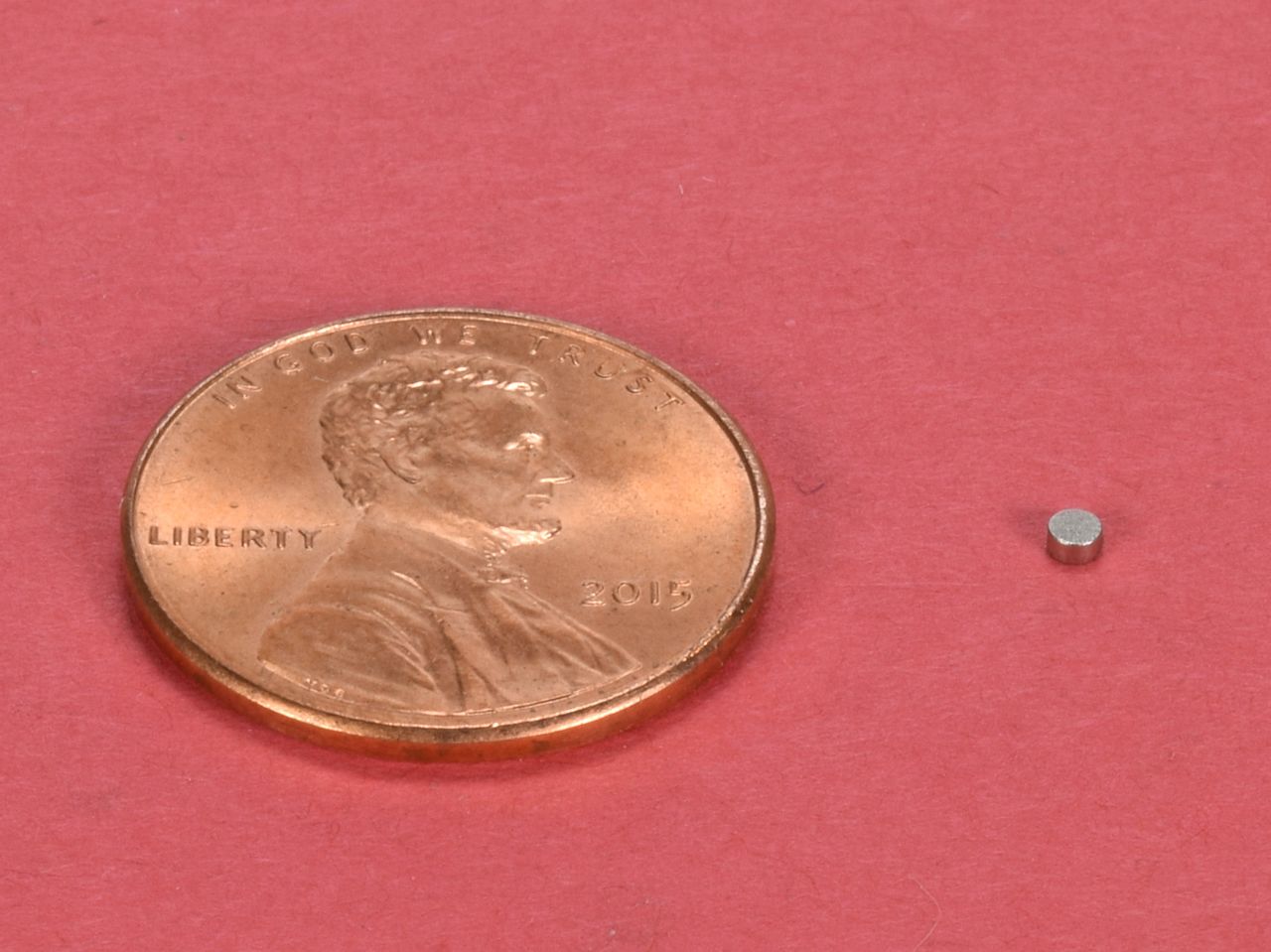

These discs are incredibly small. Even though they are tiny, just one or two of these incredible magnets will hold a sheet of 8 1/2" x 11" paper to a fridge or filing cabinet.

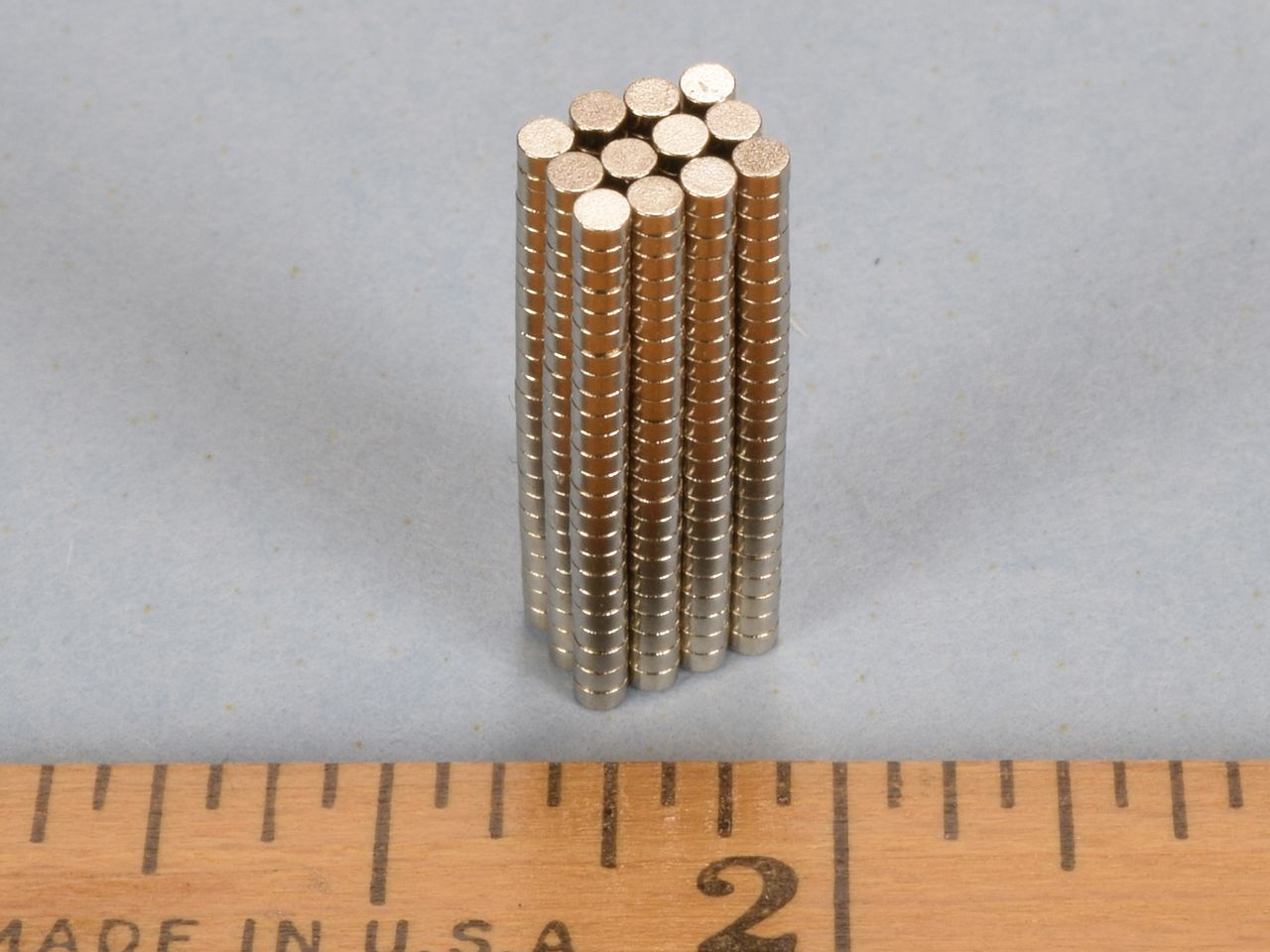

These magnets are sold in packs of 100. Order a quantity of 1 and get 100 magnets. Order a quantity of 2 and get 200 magnets. Order a quantity of 3 and get 300...

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $14.00
