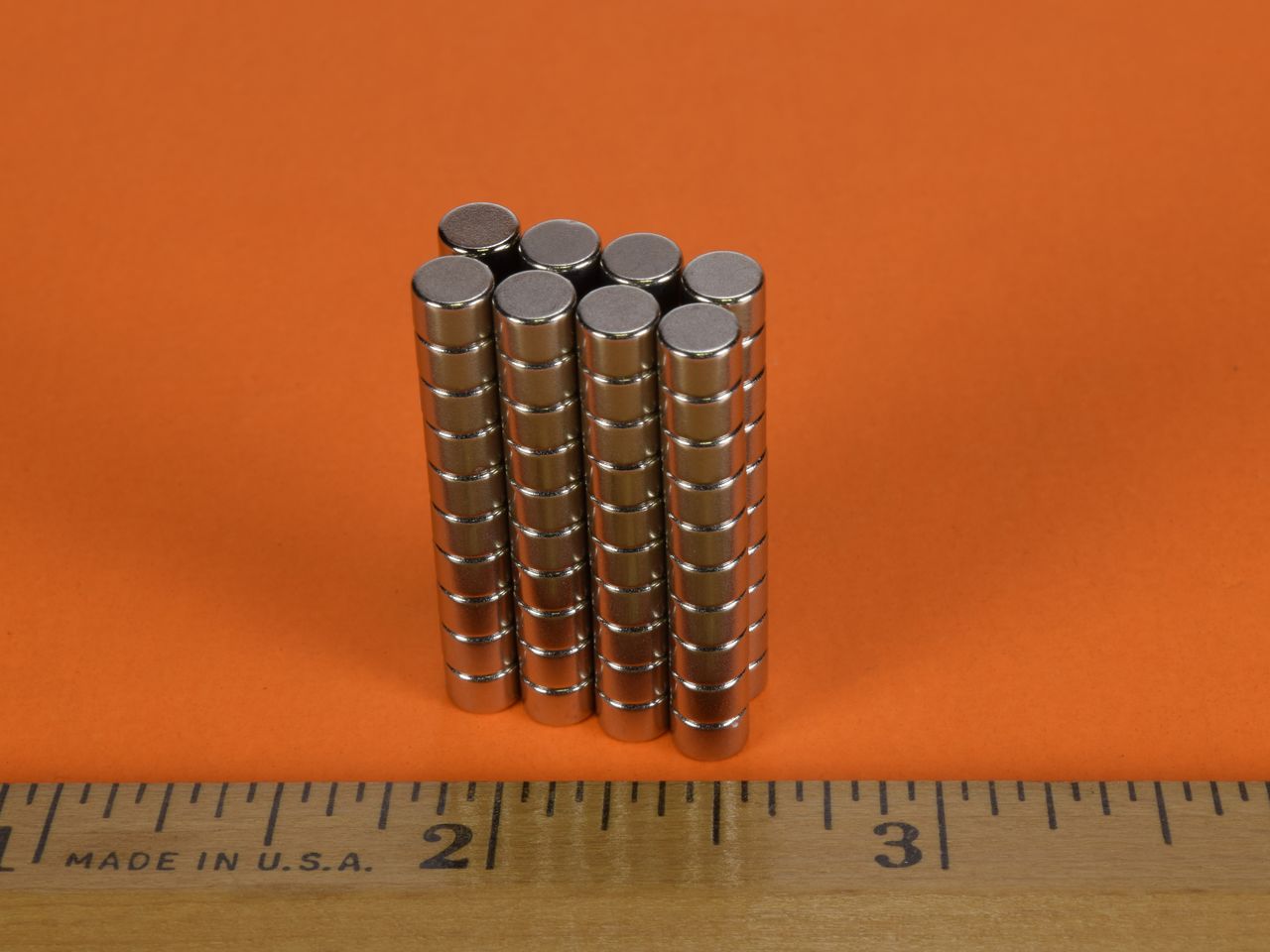

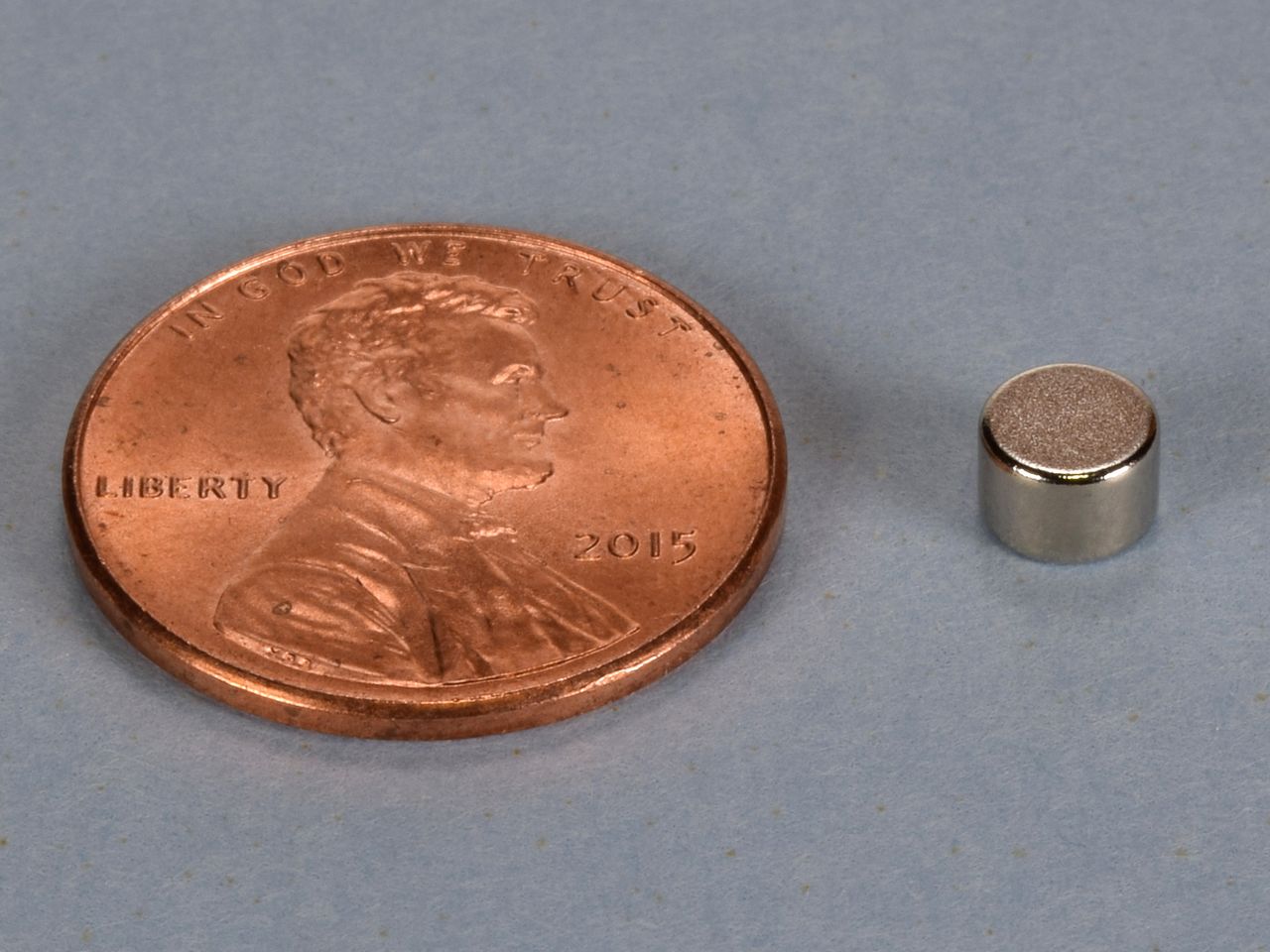

D32 | 3/16" Dia x 1/8" Thi | Neodymium Disc Magnet

Price ea.	Qty	Discount
$0.25	1-49
$0.24	50-249	4%
$0.23	250-999	8%
$0.22	1000-4999	12%
$0.21	5000-24999	16%
$0.20	25000-49999	20%
Email us for even bigger discounts on higher order quantities

Dimensions: 3/16" dia. x 1/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0150 oz. (0.424 g)
Pull Force, Case 1: 1.37 lbs
Pull Force, Case 2: 2.01 lbs
Surface Field: 5280 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Strong little discs that can be used for a wide variety of applications. Each one of these disc magnets has a pull force of over 1 lbs. That is over 1000 times the weight of the magnet!

This size is also available in grade N52 as part number D32-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
