MM-B-42 - Neodymium Counterbored Mounting Magnet - 42mm Dia

mm-b-42-neodymium-counterbored-mounting-magnet

mm-b-42-neodymium-counterbored-mounting-magnet--thumbnail-1

mm-b-42-neodymium-counterbored-mounting-magnet--thumbnail-2

$11.45

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$11.45	1
$11.20	2	2%
$10.94	3-4	4%
$10.69	5-9	7%
$10.43	10-24	9%
$10.18	25-49	11%
$9.92	50-99	13%
$9.67	100-249	16%
$9.41	250-499	18%
$9.16	500-999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

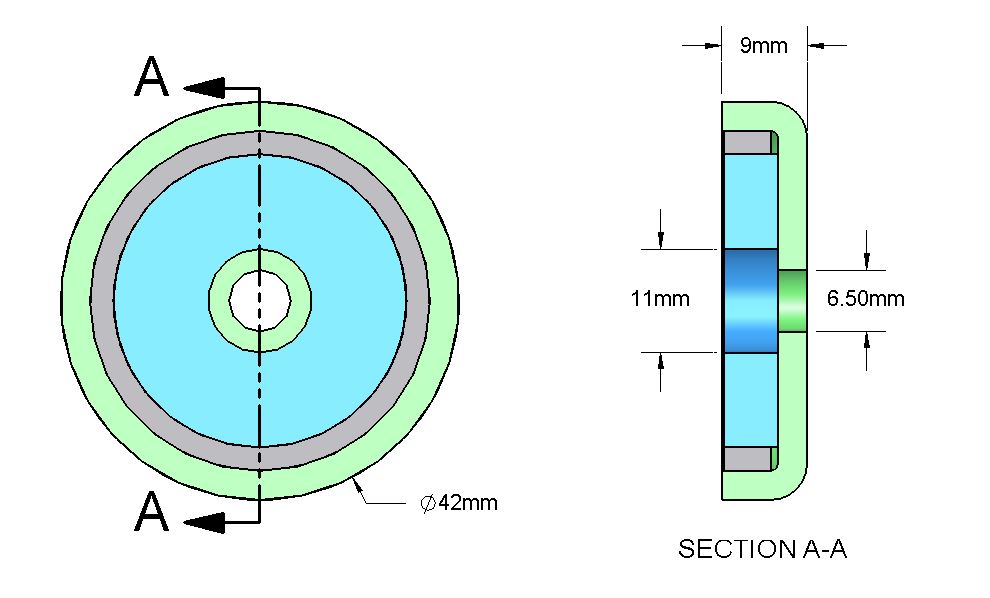

Dimensions:
    D=42mm (1.65")
    d1=6.5mm (0.26") (Sized for M6 screw)
    d2=12.5mm (0.49") (Straight counterbored hole)
    h=9mm (0.35")
Material: NdFeB, Grade N38
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 2.71 oz. (76.8 g)
Pull Force: 70.5 lbs
Surface Field: N/A
Brmax: 12,600 Gauss
BHmax: 38 MGOe

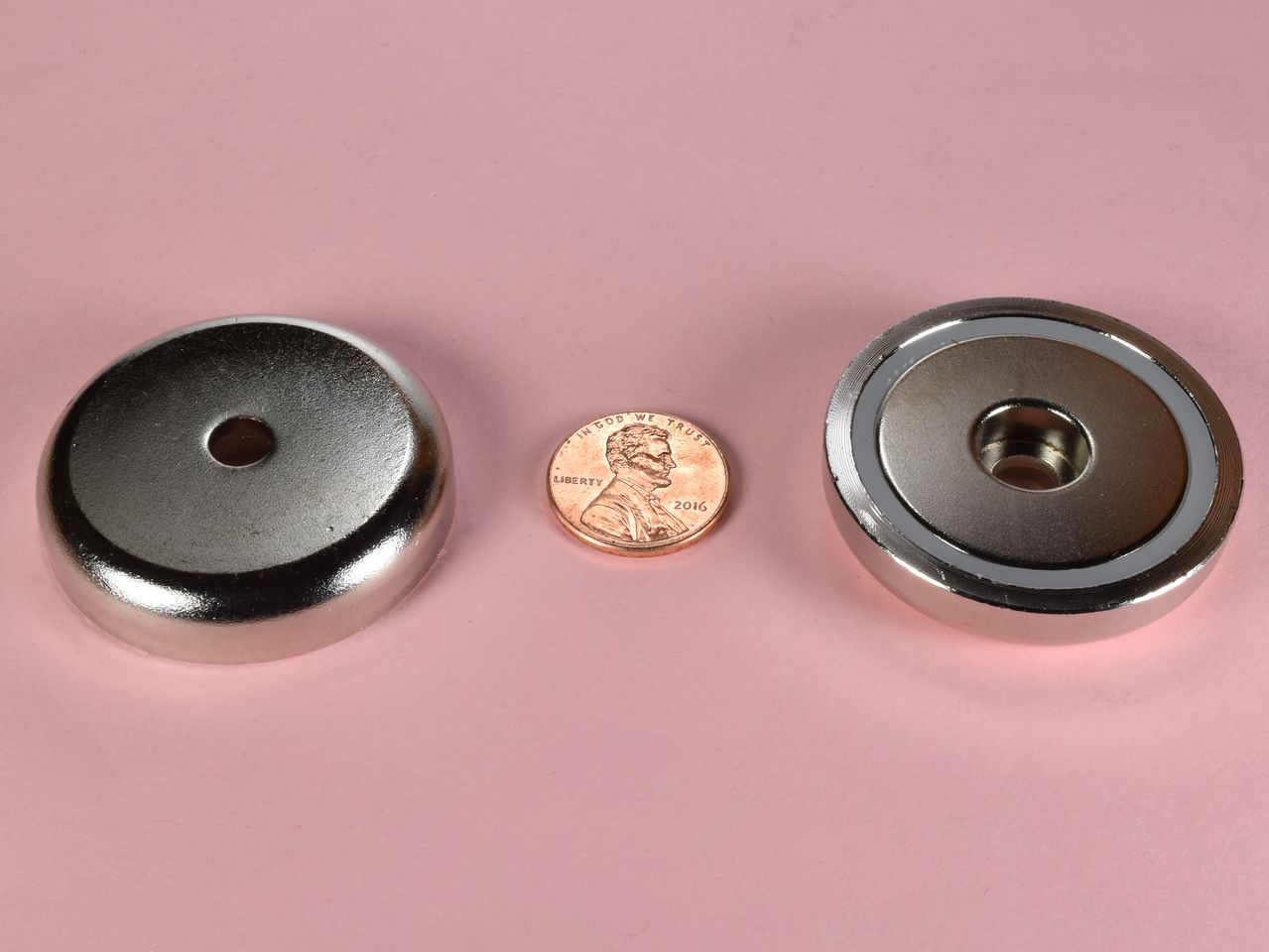

The MM-B style is a flat mounting magnet with a straight hole through the magnet to recess a screw or bolt head. These mounting magnets are incredibly useful for when you need to securely fasten a magnet to your project.
