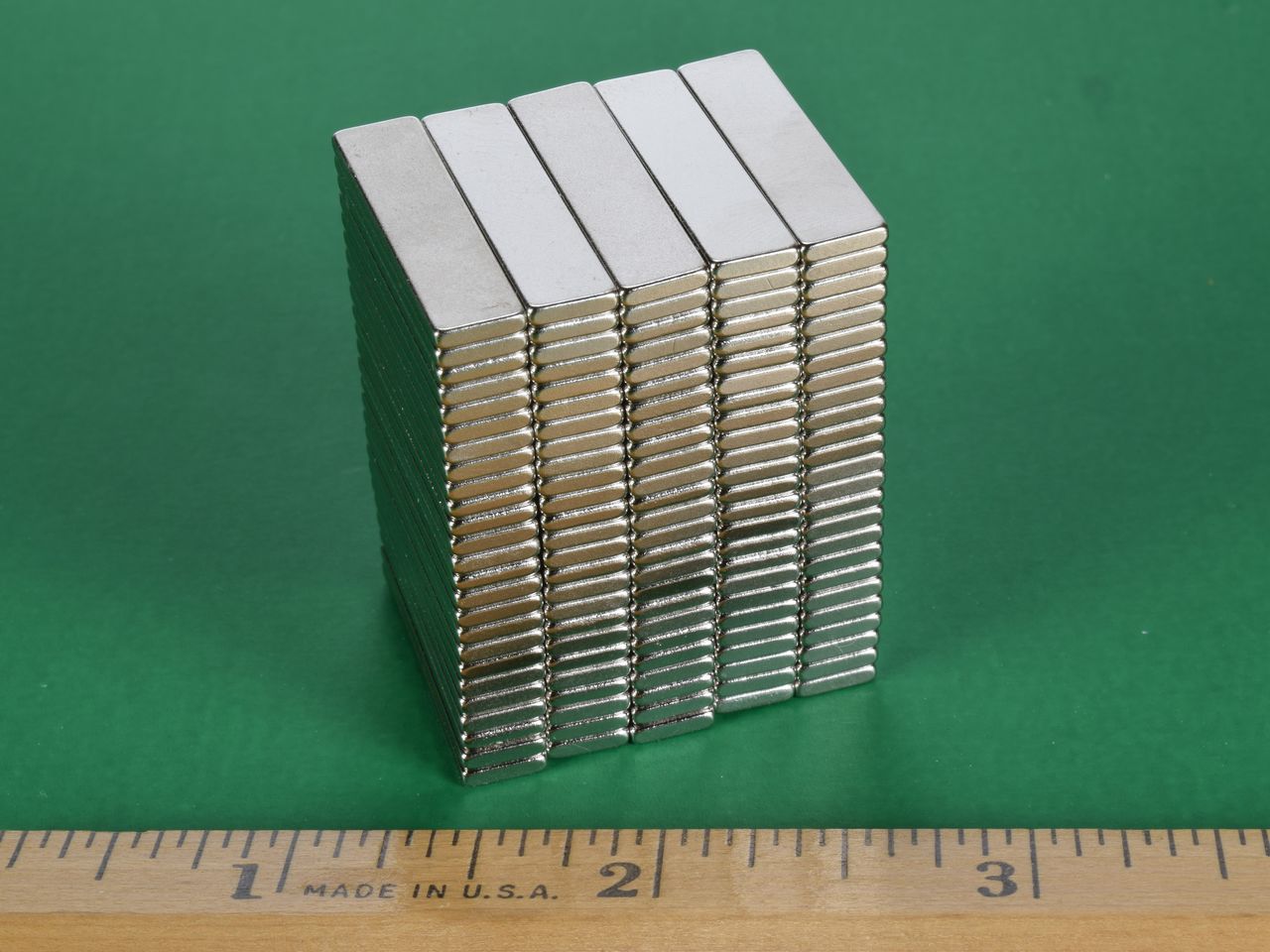

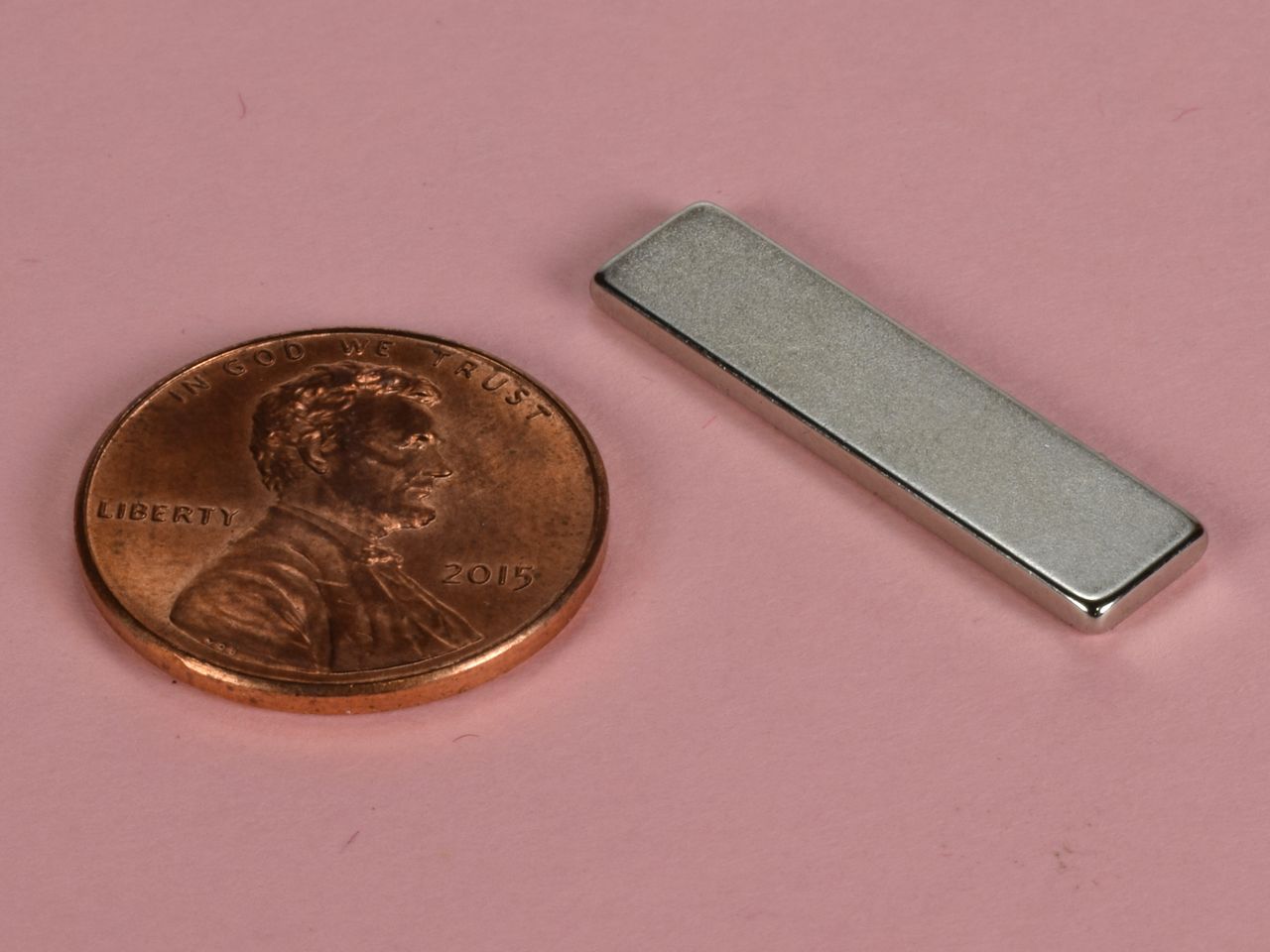

BX041-N52 - Neodymium Block Magnet

• Dimensions: 1" x 1/4" x 1/16" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.0678 oz. (1.92 g)
• Pull Force, Case 1: 4.45 lbs
• Pull Force, Case 2: 24.26 lbs
• Surface Field: 2256 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

These thin neodymium blocks are very useful for hanging or holding flat metal objects as well as a wide range of other magnetic applications.  This is a very popular size with the power of N52 grade NdFeB!

This size is also available in grade N42 as part number BX041.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.
