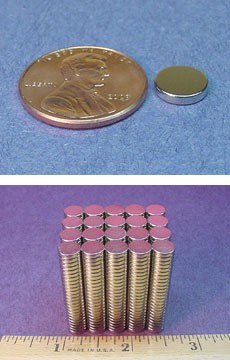

D51 - Neodymium Disc Magnet

Description
Technical
Downloads

Dimensions: 5/16" dia. x 1/16" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.0208 oz. (0.589 g)
Pull Force, Case 1: 1.66 lbs
Pull Force, Case 2: 6.08 lbs
Surface Field: 2451 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

If you need a thin, 5/16" diameter neodymium disc magnet (doesn't everybody?), the D51 is the magnet for you. Very powerful for it"s size, the D51 is easy magnet to handle. They are a hard to find 5/16" size that have a wide variety of uses. An excellent value.

This size is also available in grade N52 as part number D51-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $0.32

Quantity:

Qty:

Price ea.	Qty
$0.32	1-49
$0.31	50-99
$0.30	100-499
$0.29	500-999
$0.28	1000-2499
$0.27	2500-9999
$0.26	10000-24999
$0.25	25000-49999
For pricing at higher order quantities, please email us!
