MMS-A-Z0 - Countersunk Mounting Magnet

Description
Technical
Downloads

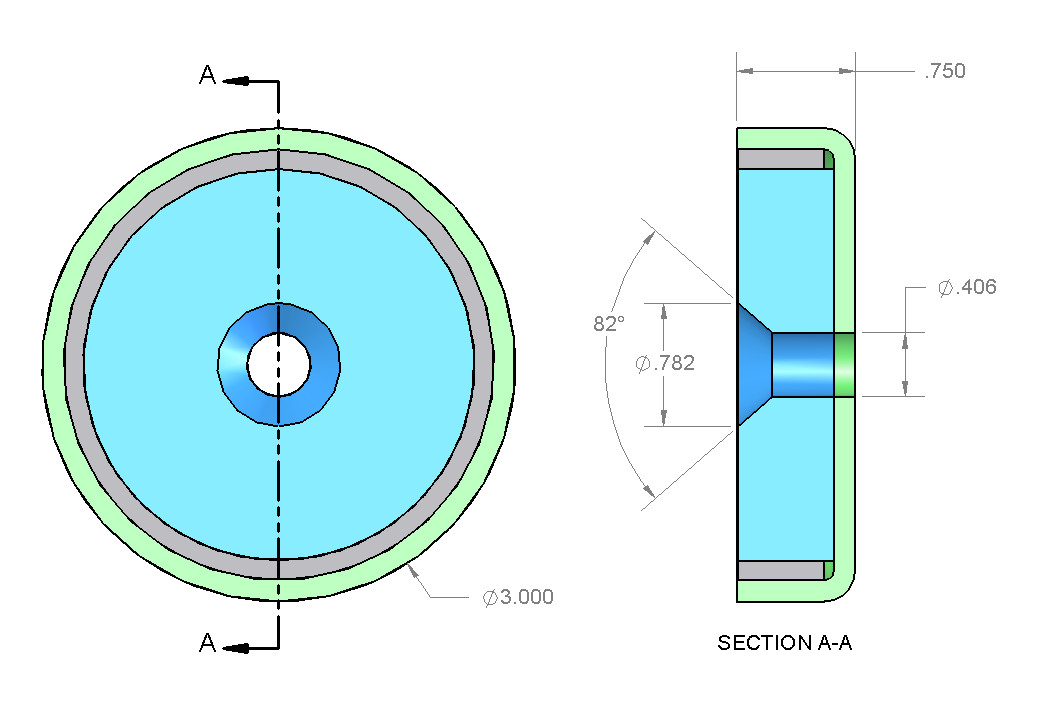

Dimensions:
    Diameter= 3" (3.00")
    Hole Size= 3/8" Screw
    Height= 3/4" (0.750")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 20.53 oz. (582.2 g)
Pull Force: 350.1 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

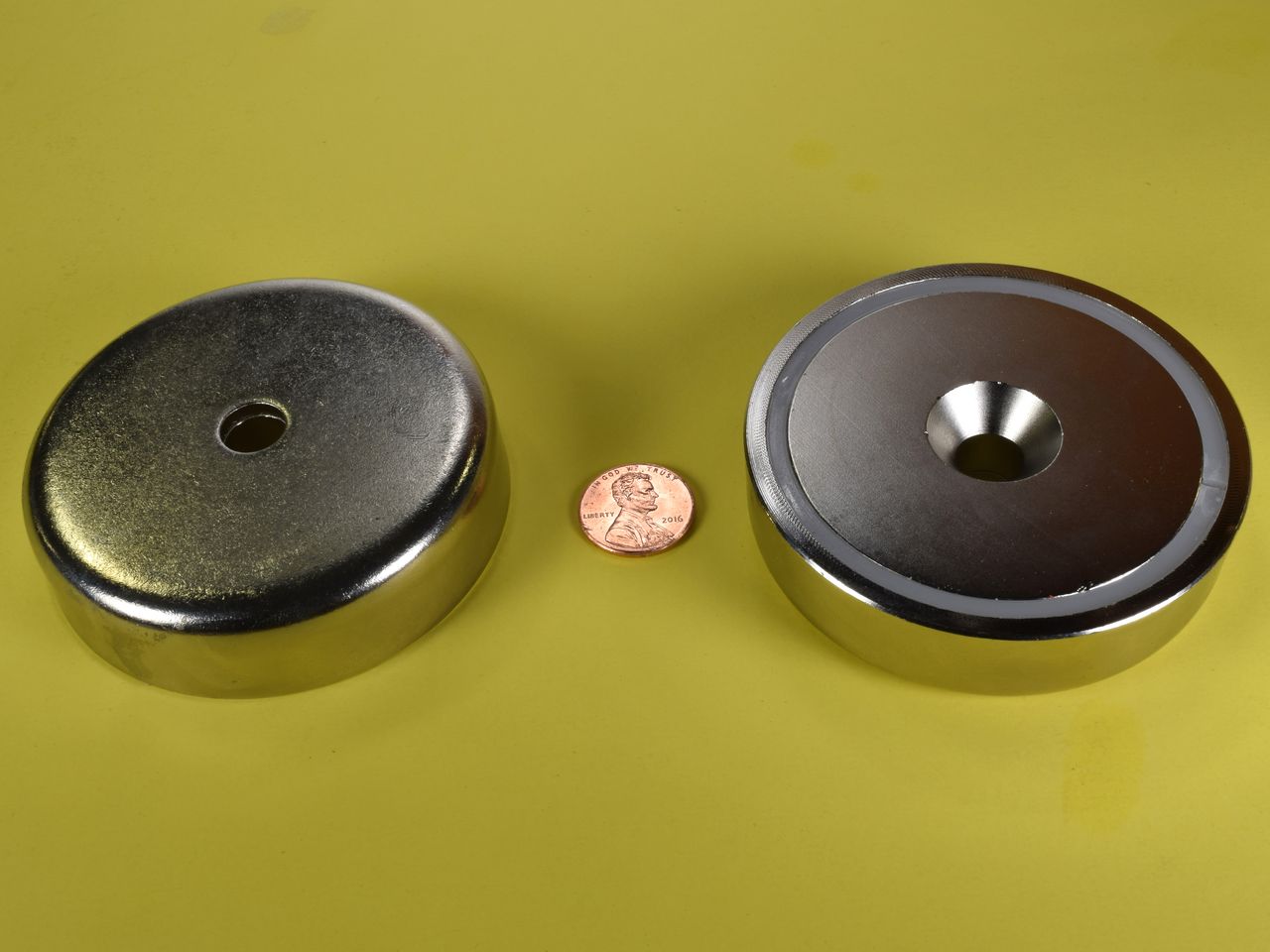

The MMS-A style is a flat mounting magnet with a tapered hole to recess a screw head. One can be attached to an object that needs to be hung from a metal surface, or it can be screwed to a wall, ceiling or fixture to hold metallic objects in place. Incredibly handy!

	Click here for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click here to download a PDF Specification Sheet.
	Click here to download a PDF drawing of this product.
	Click here to download a Certificate of Compliance for this product.
	Click here to download a RoHS Statement of Compliance for this product.
	Click here to download a Material Safety Data Sheet (MSDS) for this product.
	Click here to download a Conflict Minerals Reporting Template (CMRT).
	Click here to download a Certificate of Origin for this product.
	Click here for a REACH compliance statement.
	Click here to download a .STEP file (3D model).
	Click here to download an .IGS file (3D model).

Download the free Adobe Acrobat Reader

Price: $94.02

Quantity:

Qty:

Price ea.	Qty
$94.02	1
$91.93	2
$89.84	3-4
$87.75	5-9
$85.66	10-14
$83.58	15-19
$81.49	20-24
$79.40	25-49
$77.31	50-99
$75.22	100-249
For pricing at higher order quantities, please email us!
