MMS-C-Y0 - Neodymium Male Stud Mounting Magnet

mms-c-y0-neodymium-male-stud-mounting-magnet--thumbnail-2

$19.91

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$19.91	1
$19.47	2	2%
$19.03	3-4	4%
$18.58	5-9	7%
$18.14	10-24	9%
$17.70	25-49	11%
$17.26	50-99	13%
$16.81	100-249	16%
$16.37	250-499	18%
$15.93	500-999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

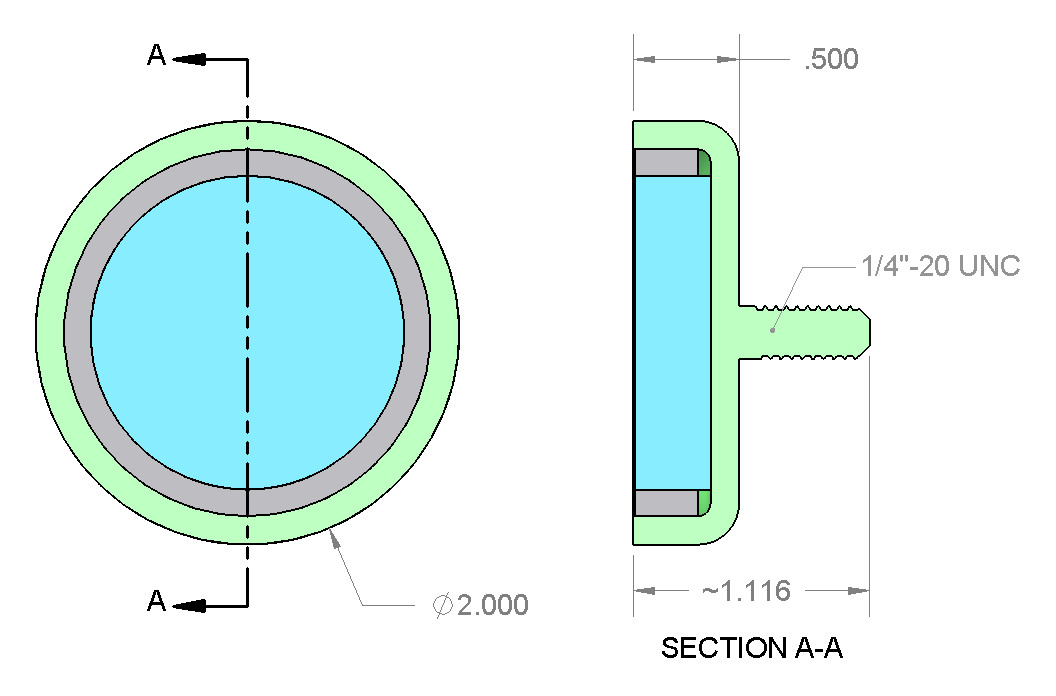

Dimensions:
    Diameter = 2" (2.00")
    Threaded Male Stud = 1/4"-20 UNC 2A
    Height = 1/2" (0.50")
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 6.27 oz. (176.5 g)
Pull Force: 173.0 lbs
Surface Field: N/A
Brmax: 13,200 Gauss
BHmax: 42 MGOe

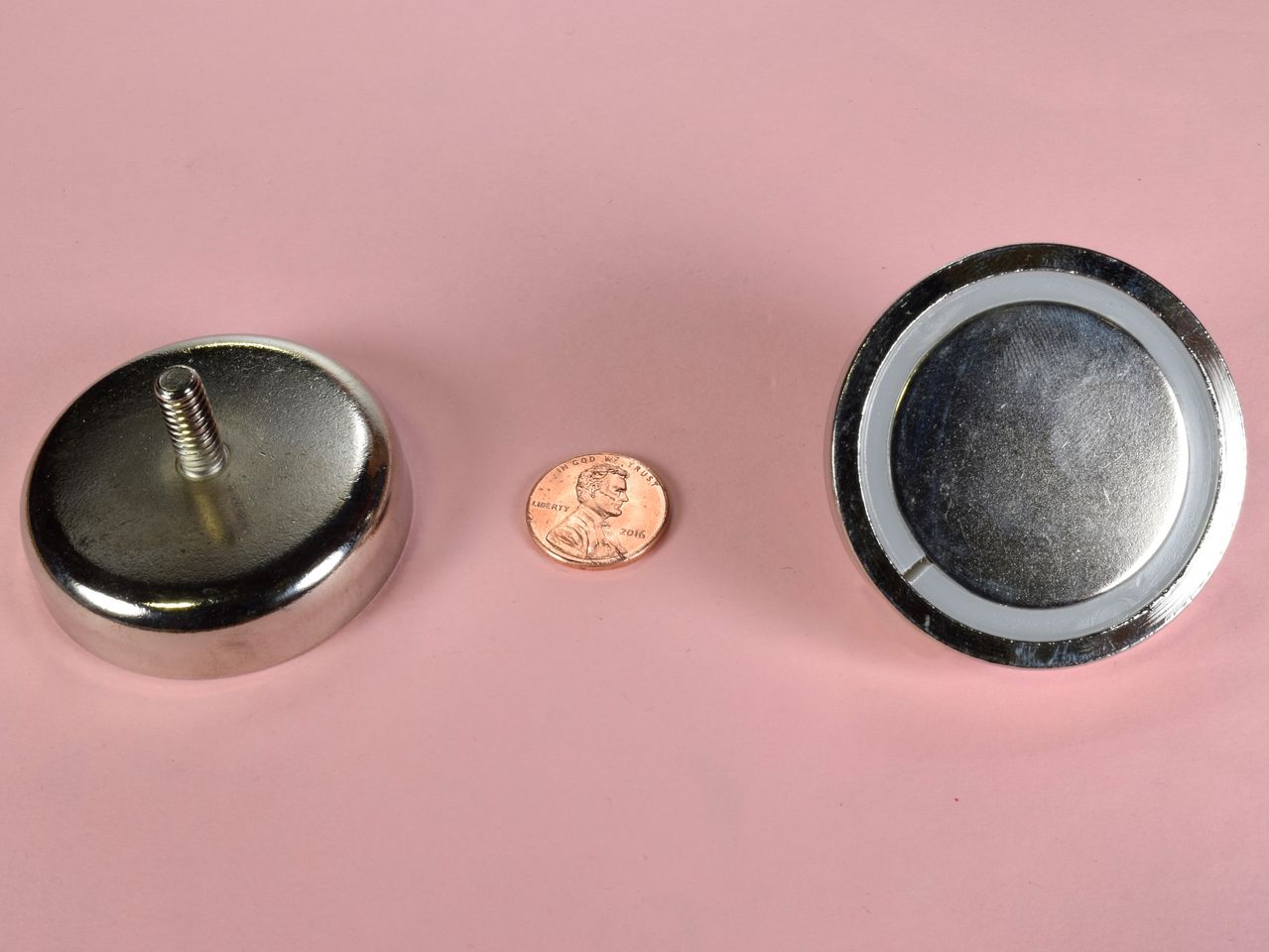

The MMS-C style is a flat mounting magnet with male stud permanently attached to the mount. Perfect for putting through a hole and fastening with a nut to attach any hardware assembly.

We like this magnet, paried with a MMS-D-Y0, for the popular hobby of magnet fishing.

	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
