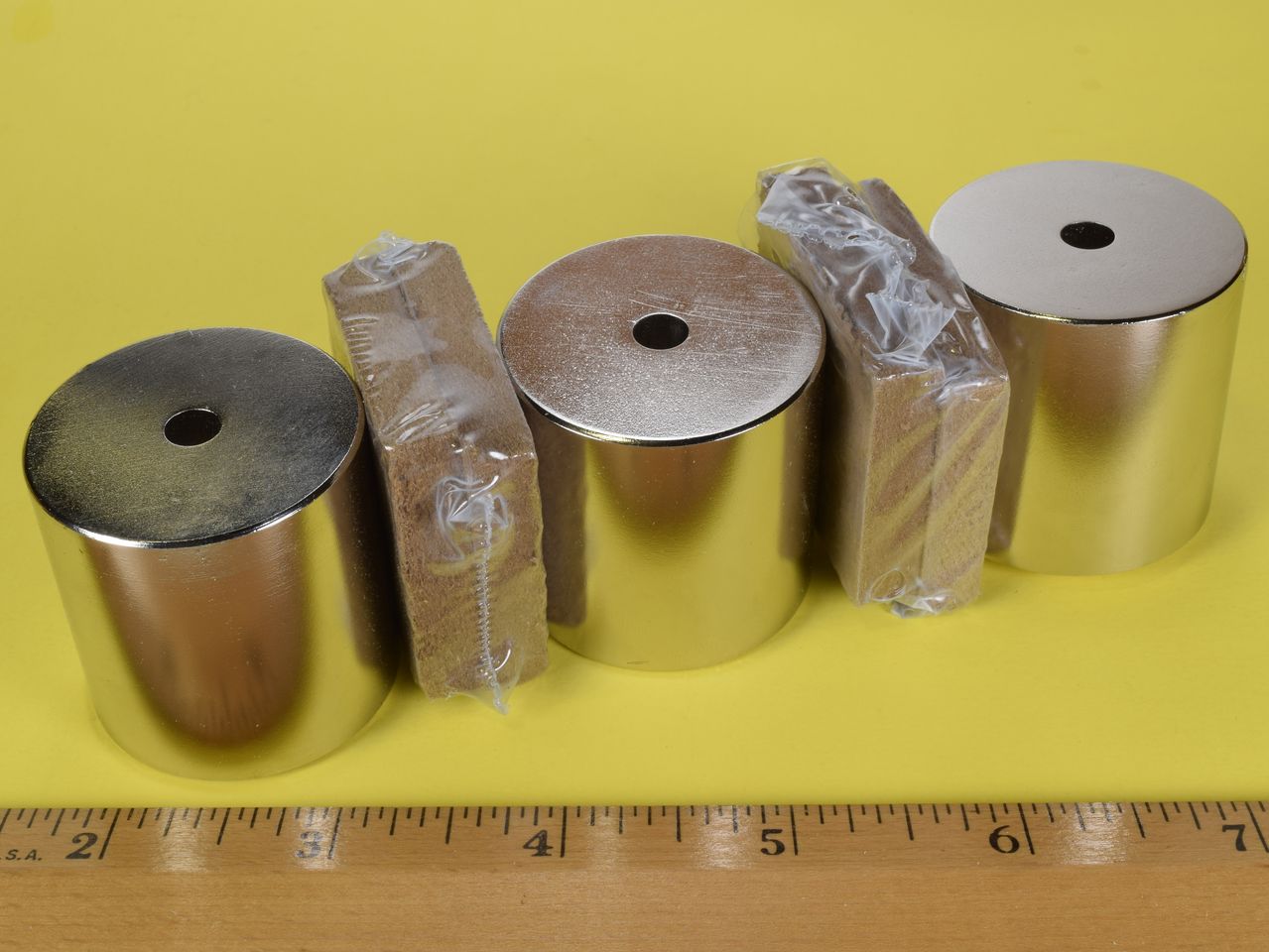

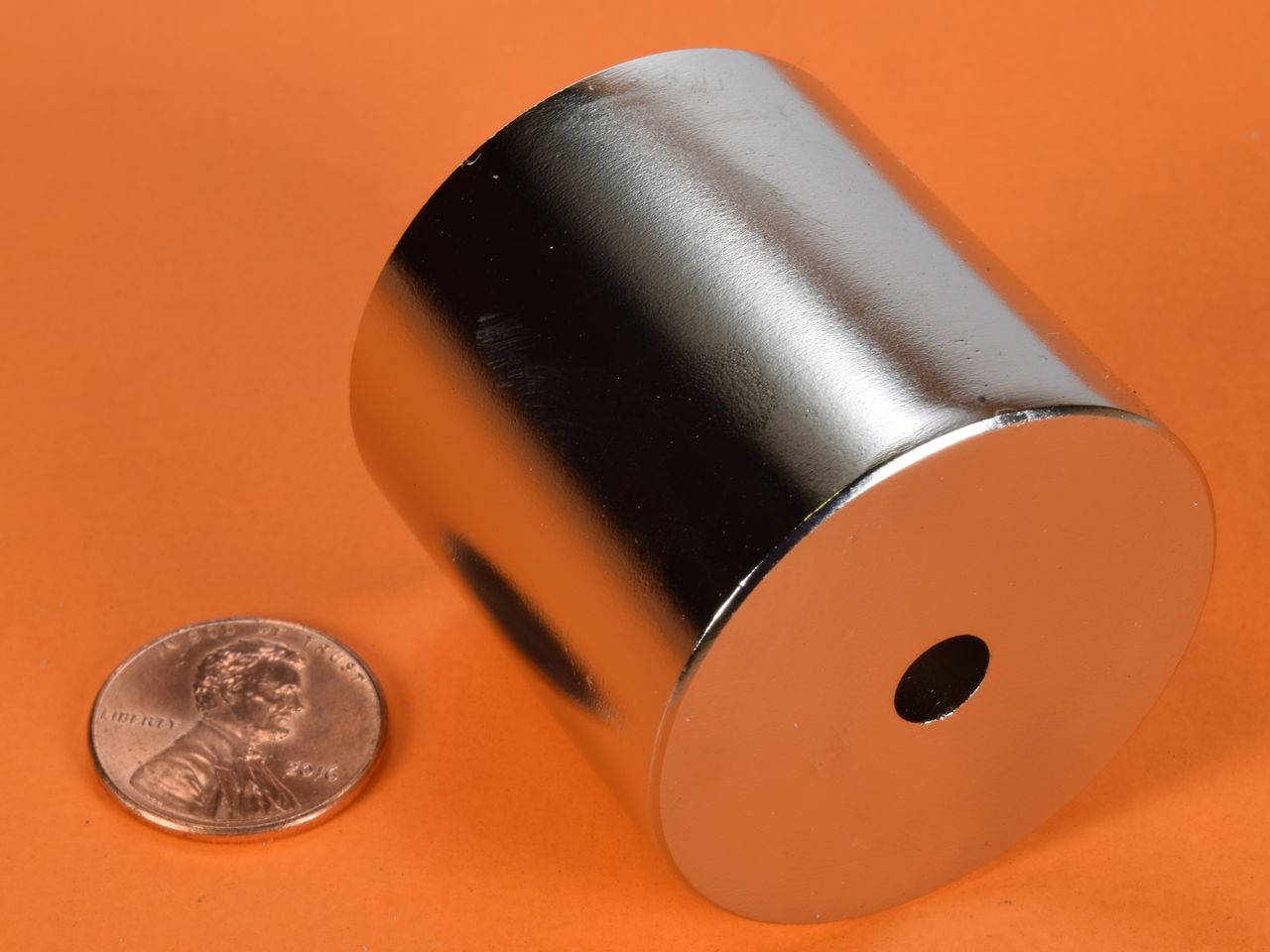

- Dimensions: 1 1/2" od x 1/4" id x 1 1/2" thick
- Tolerances: ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Diametrical
- Weight: 11.17 oz. (316.7 g)
- Pull Force, Case 1: 72.93 lbs
- Pull Force, Case 2: 93.12 lbs
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe
As with any rare-earth magnet of this size, they can pinch very hard and cause great harm if they are not handled with care and respect. THESE ARE DANGEROUS!
You must read and understand our Neodymium Magnet Safety Page before ordering these magnets and agree to our Terms and Conditions prior to purchasing.
This size is also available axially magnetized as part number RX84X8.
 |
Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
 |
Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
 |
Pull Force, Case 3 vs. distance: Magnet to Magnet. |
 |
Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
 |
View B-H curves for this magnet. |
 |
Click this link to download a PDF Specification Sheet. |
 |
Click this link to download a PDF drawing of this product. |
 |
Click this link to download a Certificate of Compliance for this product. |
 |
Click this link to download a RoHS Statement of Compliance for this product. |
 |
Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
 |
Click this link to download a Conflict Minerals Reporting Template (CMRT). |
 |
Click this link to download a Certificate of Origin for this product. |
 | Click this link for a REACH compliance statement. |
 |
Click this link to download a .STEP file (3D model). |
 |
Click this link to download an .IGS file (3D model). |
