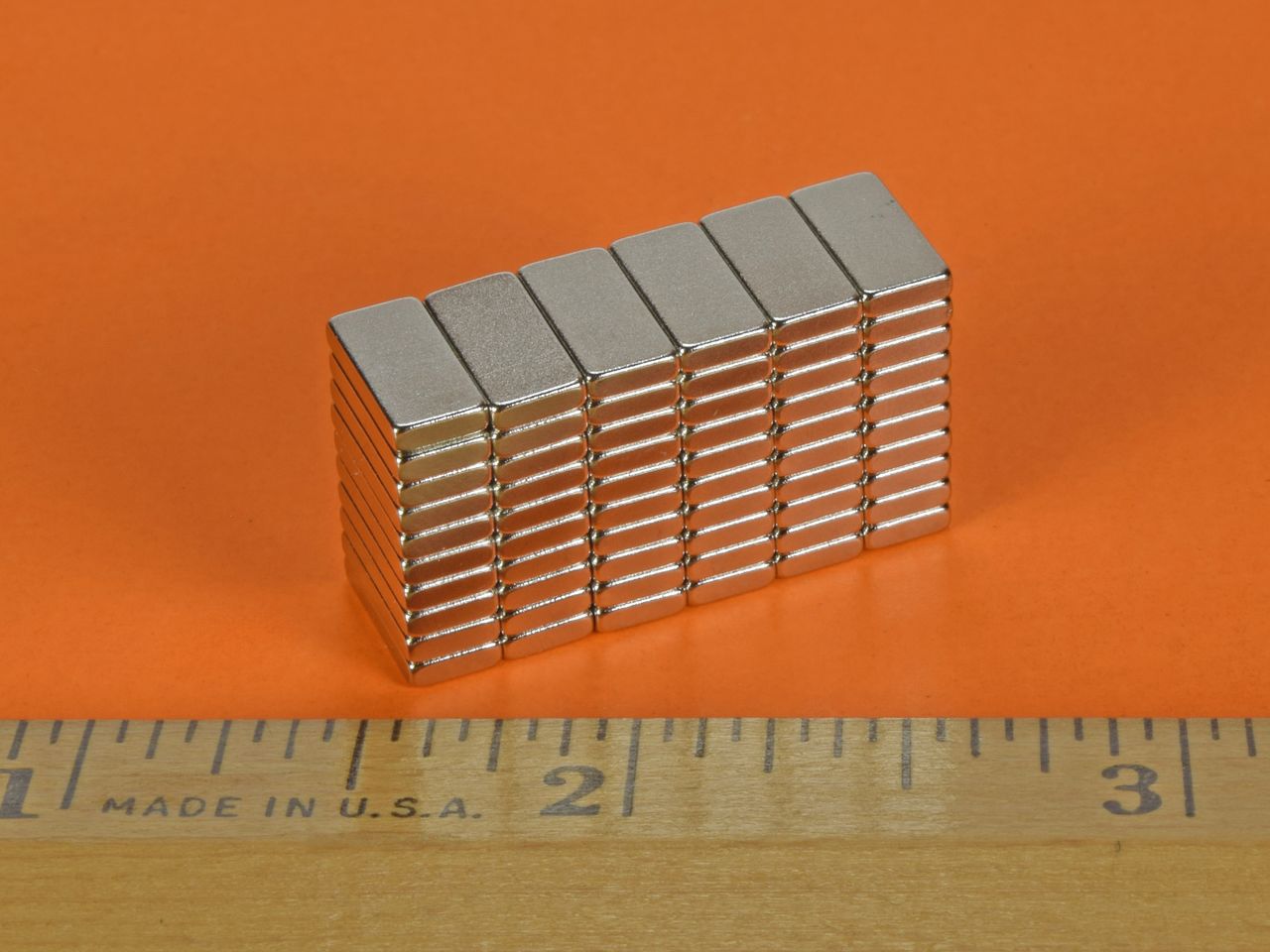

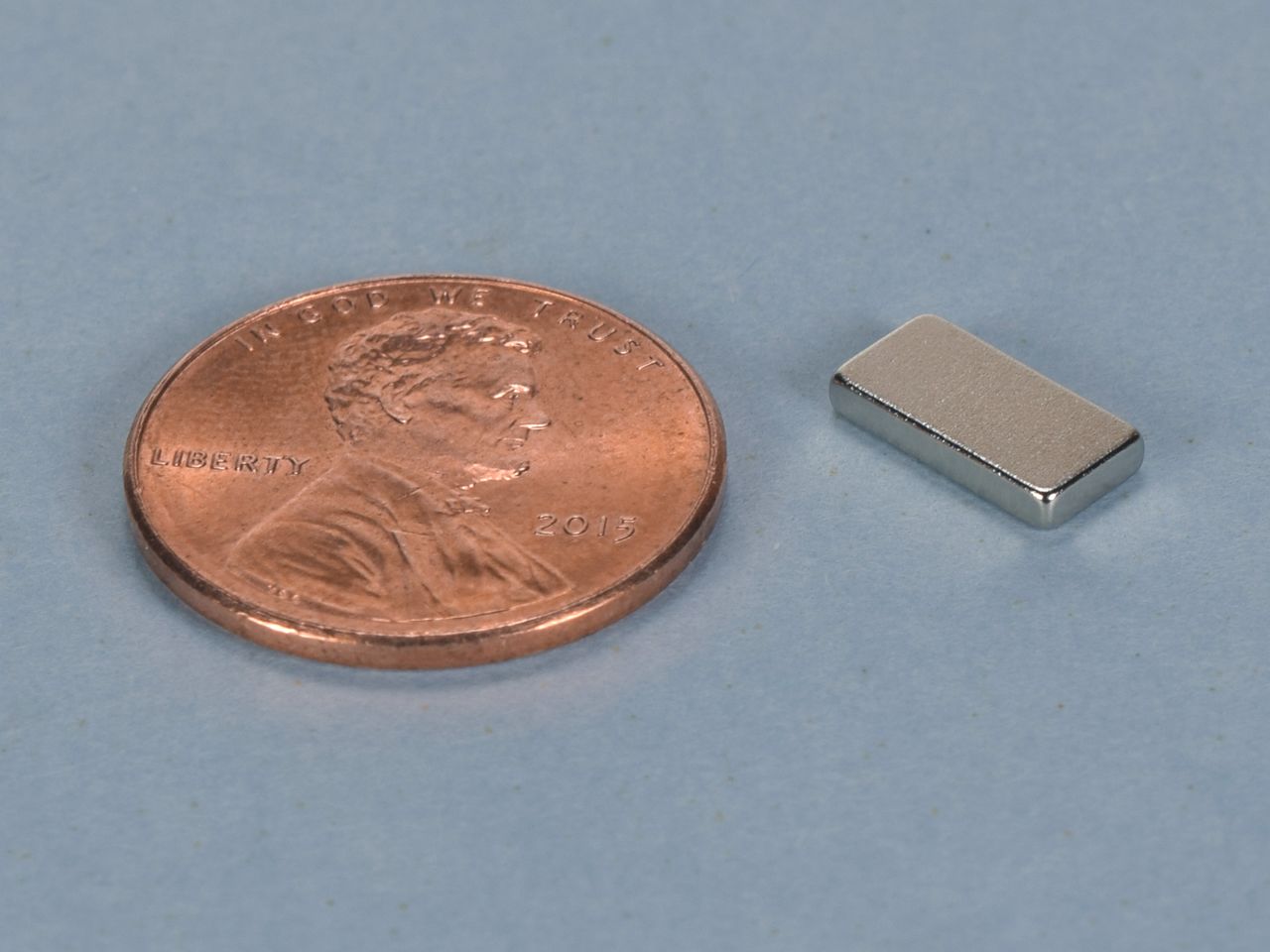

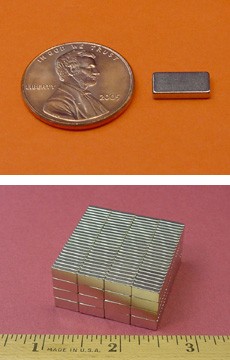

- Dimensions: 3/8" x 3/16" x 1/16" thick
- Tolerances: ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Thru Thickness
- Weight: 0.0191 oz. (0.540 g)
- Pull Force, Case 1: 1.56 lbs
- Pull Force, Case 2: 5.55 lbs
- Surface Field: 2777 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe
This size is also available in grade N42 as part number B631-N52.
Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. | |
Pull Force, Case 2 vs. distance: Between 2 Steel Plates. | |
Pull Force, Case 3 vs. distance: Magnet to Magnet. | |
Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. | |
Click this link for a depiction of the magnetic field. | |
View B-H curves for this magnet. |
Click this link to download a PDF Specification Sheet. | |
Click this link to download a PDF drawing of this product. | |
Click this link to download a Certificate of Compliance for this product. | |
Click this link to download a RoHS Statement of Compliance for this product. | |
Click this link to download a Material Safety Data Sheet (MSDS) for this product. | |
Click this link to download a Conflict Minerals Reporting Template (CMRT). | |
Click this link to download a Certificate of Origin for this product. | |
Click this link for a REACH compliance statement. | |
Click this link to download a .STEP file (3D model). | |
Click this link to download an .IGS file (3D model). |
