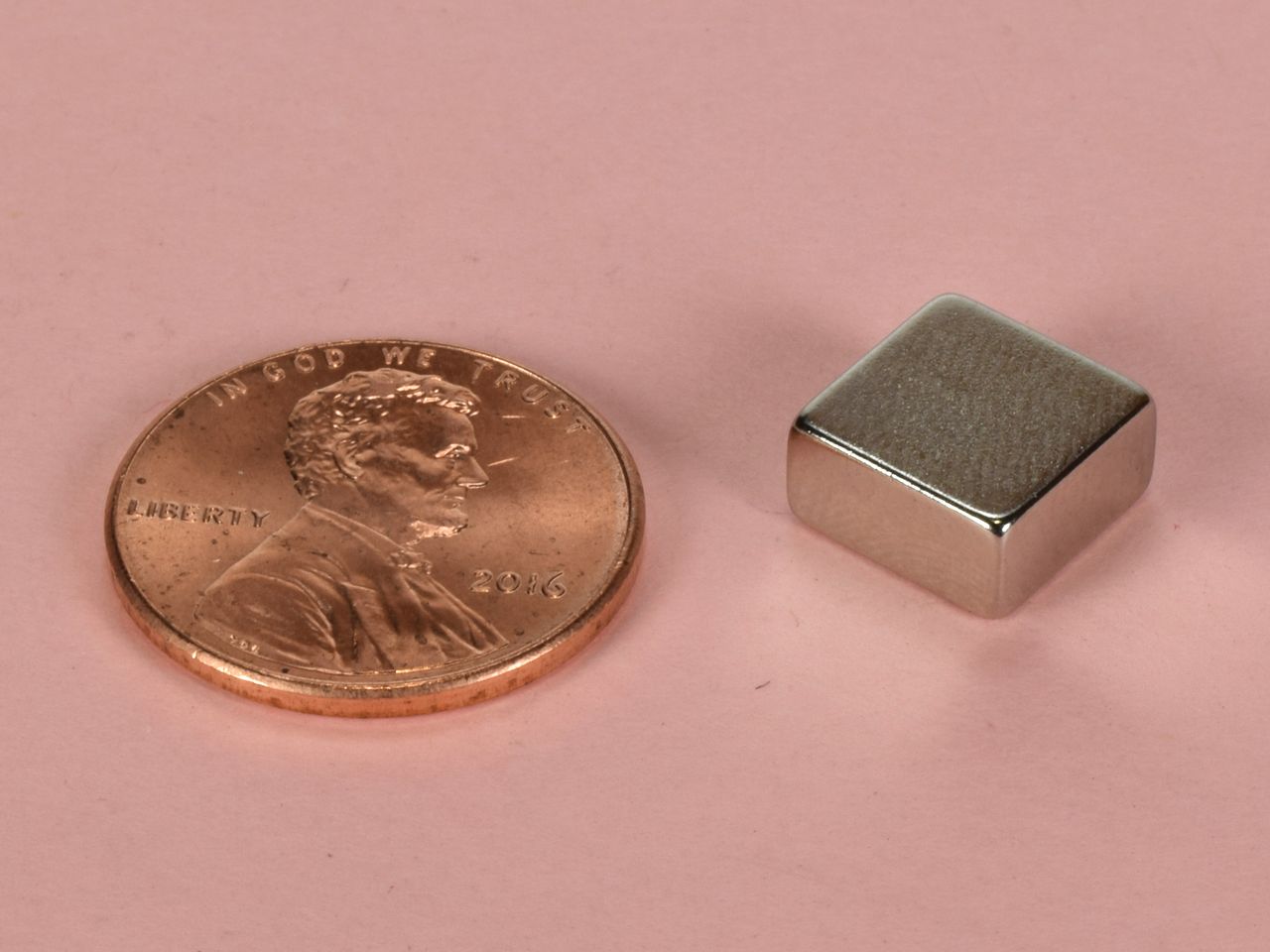

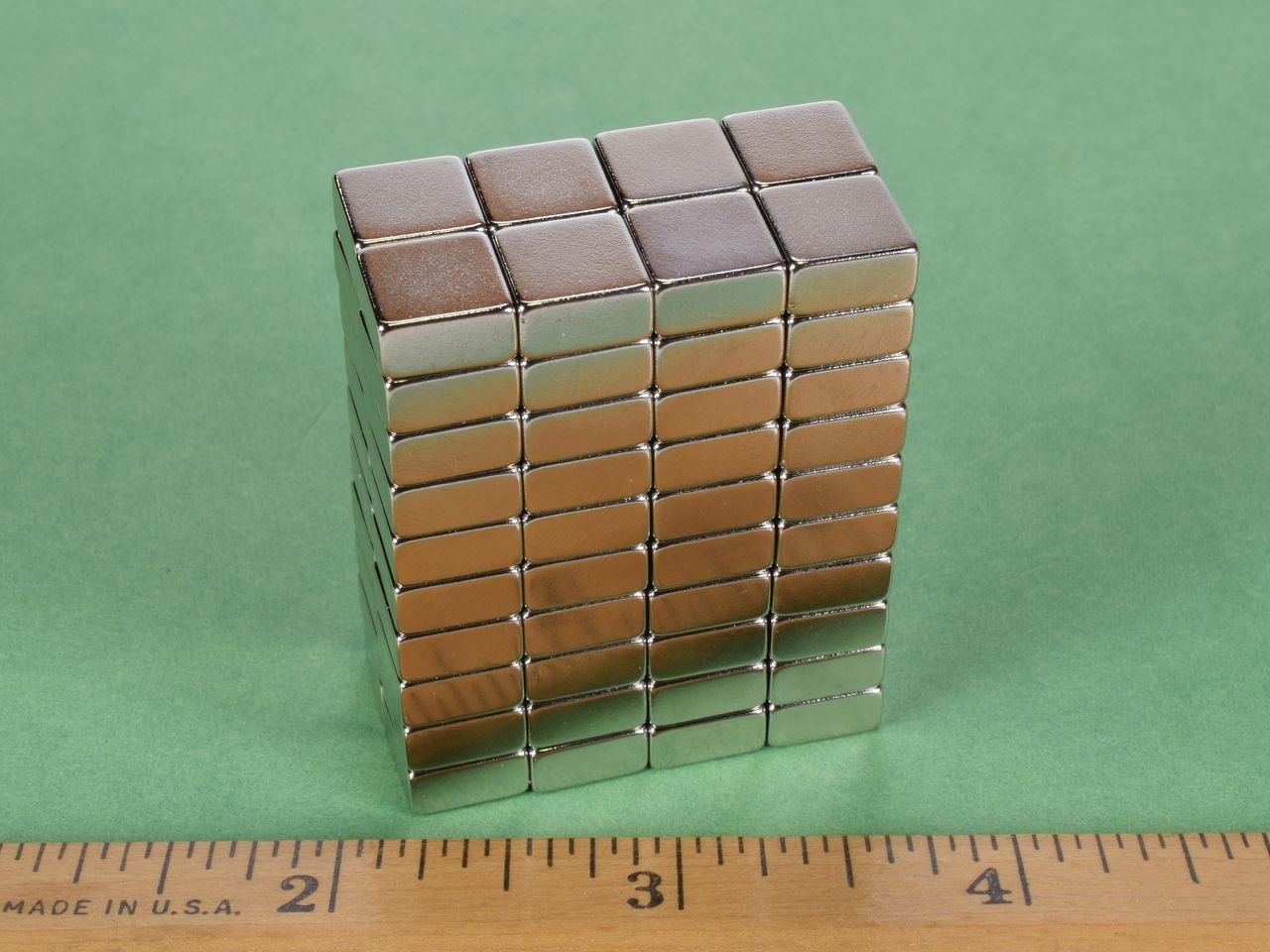

B663 - Neodymium Block Magnet

• Dimensions: 3/8" x 3/8" x 3/16" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.114 oz. (3.23 g)
• Pull Force, Case 1: 7.09 lbs
• Pull Force, Case 2: 11.80 lbs
• Surface Field: 4400 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

The B663 is a great general purpose magnet because of its flat shape and great strength. Customers frequently use them in craft projects where they need a strong hold with a magnet that is easy to grasp.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
