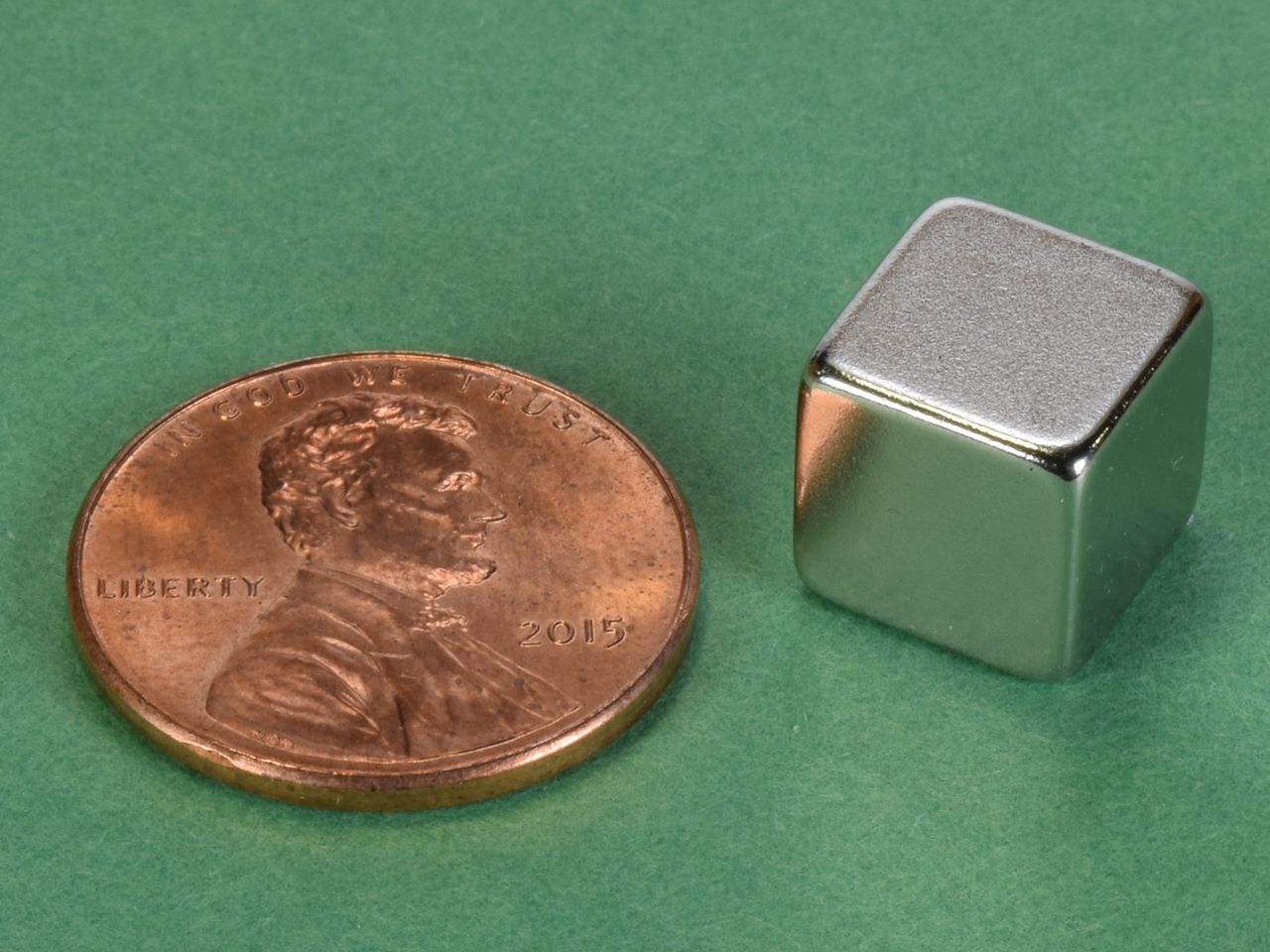

B666-N52 - Neodymium Block Magnet

b666-n52-neodymium-block-magnet--thumbnail-2

$2.34

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.34	1-4
$2.29	5-9	2%
$2.24	10-24	4%
$2.18	25-49	7%
$2.13	50-99	9%
$2.08	100-249	11%
$2.03	250-499	13%
$1.97	500-999	16%
$1.92	1000-2499	18%
$1.87	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads
Video

Dimensions: 3/8" x 3/8" x 3/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.229 oz. (6.48 g)
Pull Force, Case 1: 12.46 lbs
Pull Force, Case 2: 14.70 lbs
Surface Field: 6451 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

Our 3/8" Neodymium Cube Magnets have been so popular, that we've decided to carry them in Grade N52 as well! This mighty little cube is deceptively strong. And while they may be powerful enough to pinch, they are still incredibly useful. A great size for magnetic whiteboards or even your fridge, as just one of them will easily hold a stack of papers firmly in place. The B666-N52 is large enough to grab and easily move. Strong and sturdy!

This size is also available with a 3/32" hole through the center as part number B666-03PE and in Grade N42 as part number B666.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
