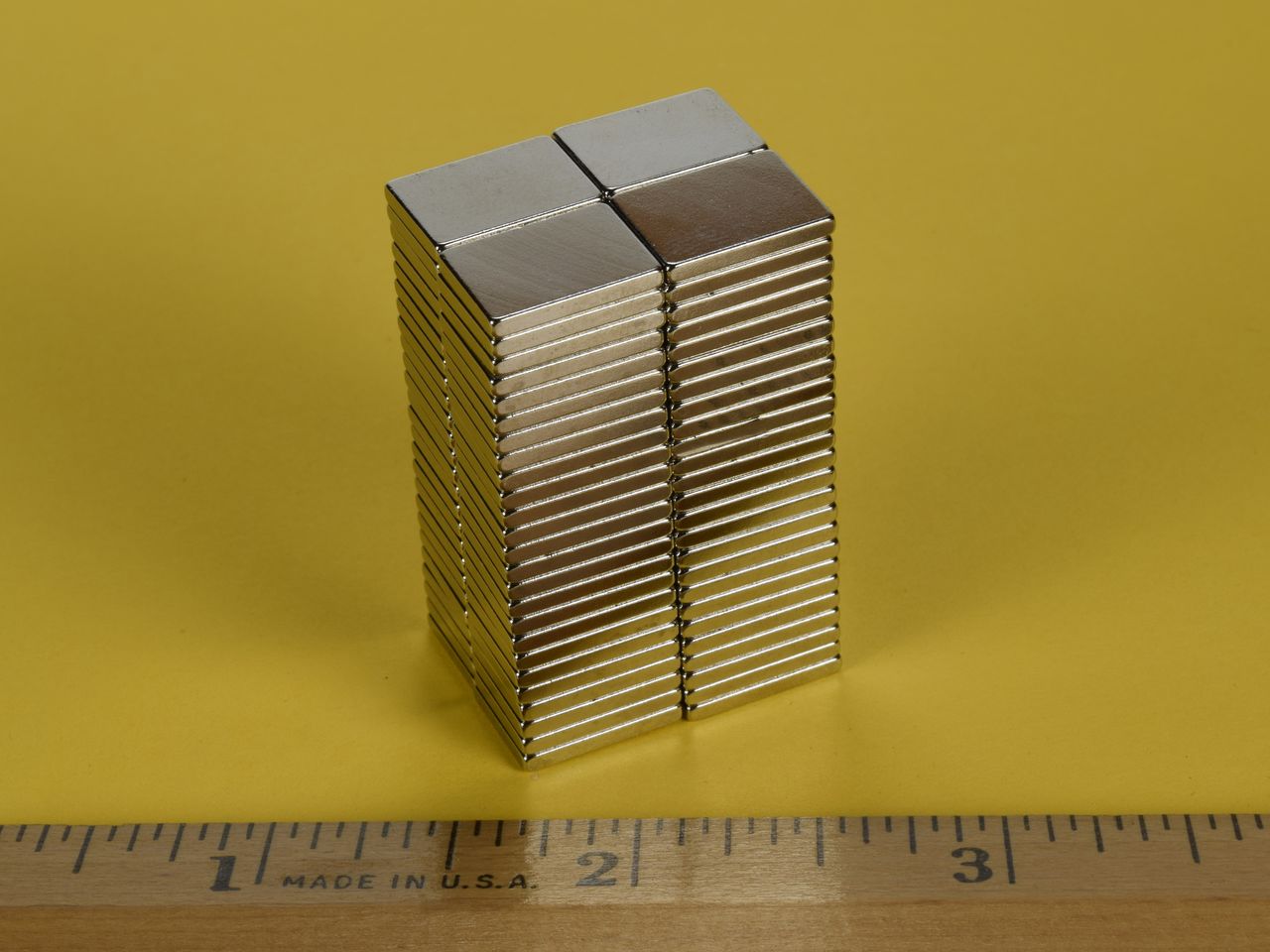

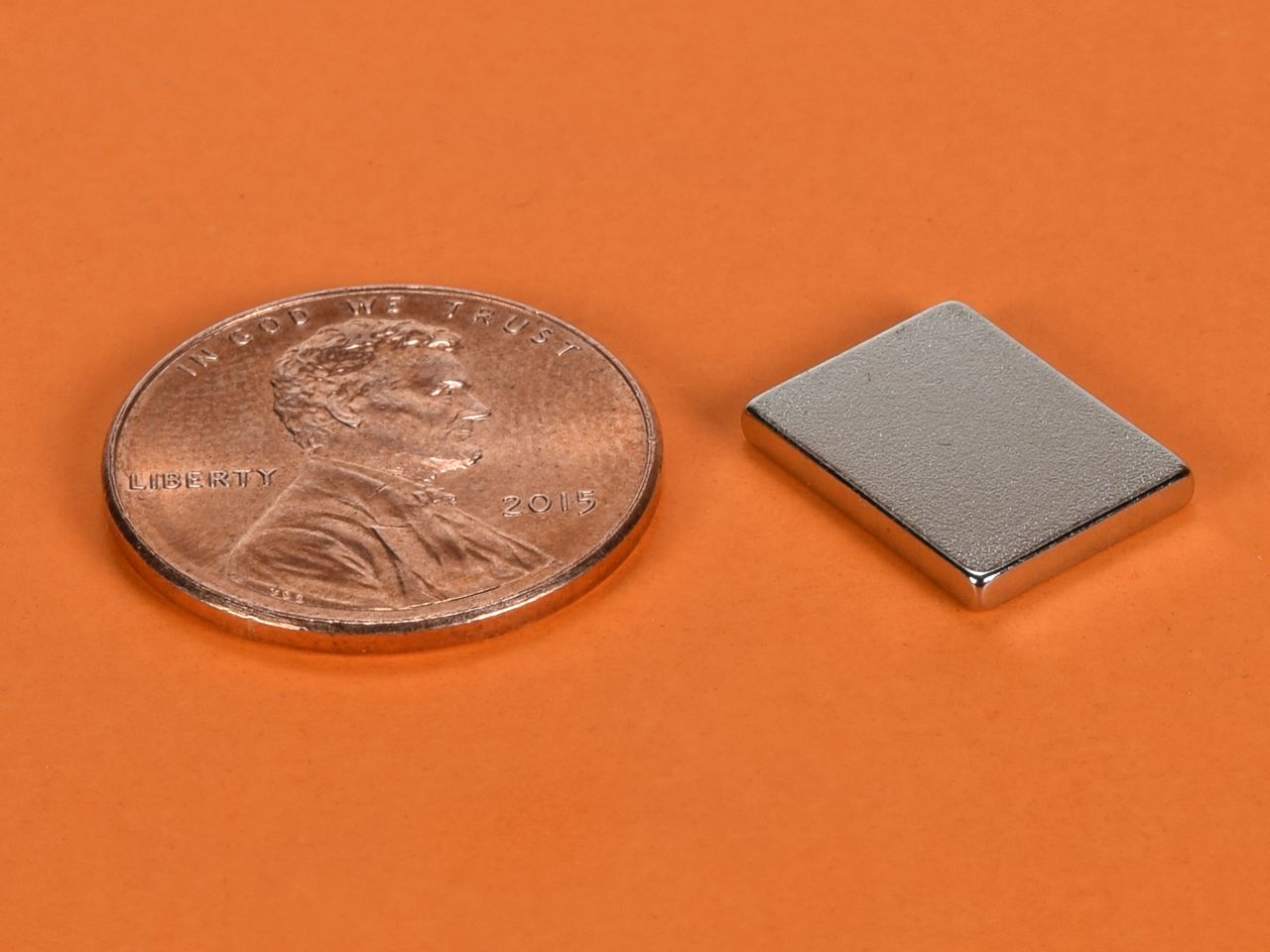

B861 - Neodymium Block Magnet

B861

$0.61

-

+

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.61	1-24
$0.60	25-49	2%
$0.58	50-99	5%
$0.57	100-249	7%
$0.56	250-499	8%
$0.54	500-999	11%
$0.53	1000-2499	13%
$0.52	2500-4999	15%
$0.50	5000-9999	18%
$0.49	10000-24999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Magnetization direction

Dimensions: 1/2" x 3/8" x 1/16" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.051 oz. (1.44 g)
Pull Force, Case 1: 3.01 lbs
Pull Force, Case 2: 13.51 lbs
Surface Field: 1688 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The B861 is a perfect block magnet for discreet closures on boxes or bags. Tiny and powerful! A great size and strength for a wide variety of applications.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
