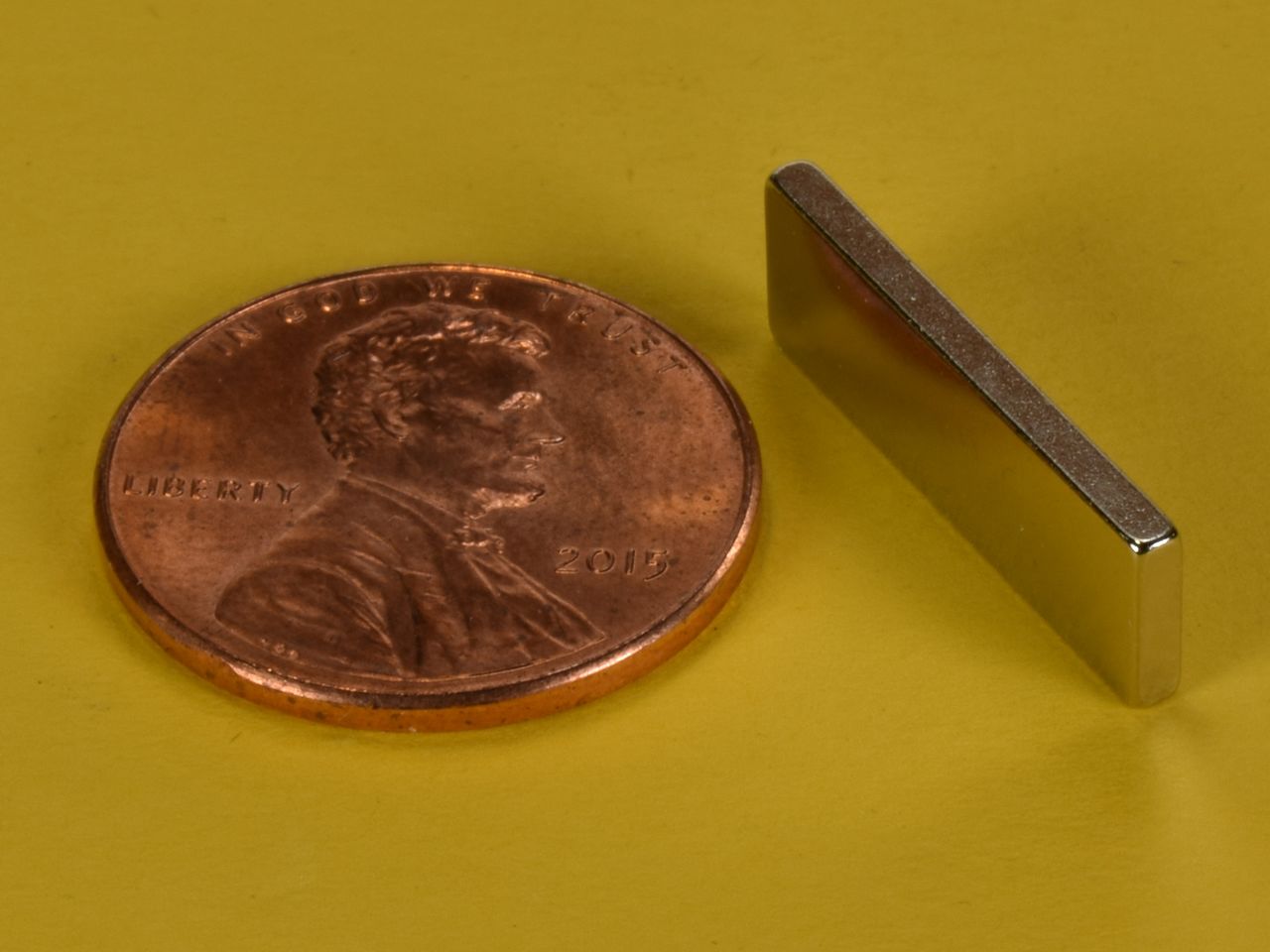

BC14-N52 - Neodymium Block Magnet

• Dimensions: 3/4" x 1/16" x 1/4" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N52
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.0508 oz. (1.44 g)
• Pull Force, Case 1: 3.99 lbs
• Pull Force, Case 2: 4.57 lbs
• Surface Field: 6913 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 14,800 Gauss
• BHmax: 52 MGOe

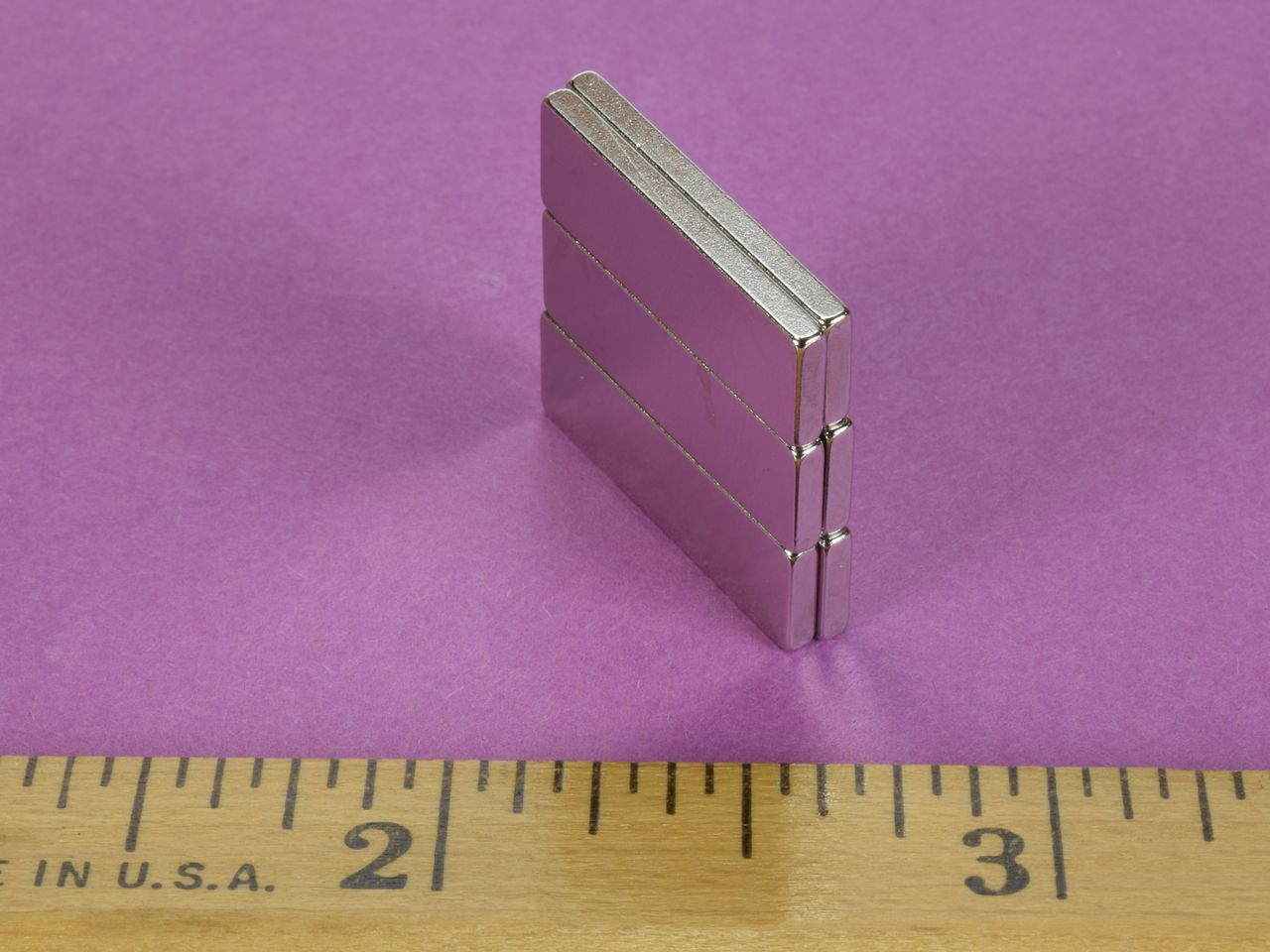

Our BC14 blocks are the same size as our BC41's, but they are magnetized through the 1/4" dimension and are grade N52.  The poles are located on the 3/4" x 1/16" "sides", so the magnets will attract to each other "side-to-side".

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.
