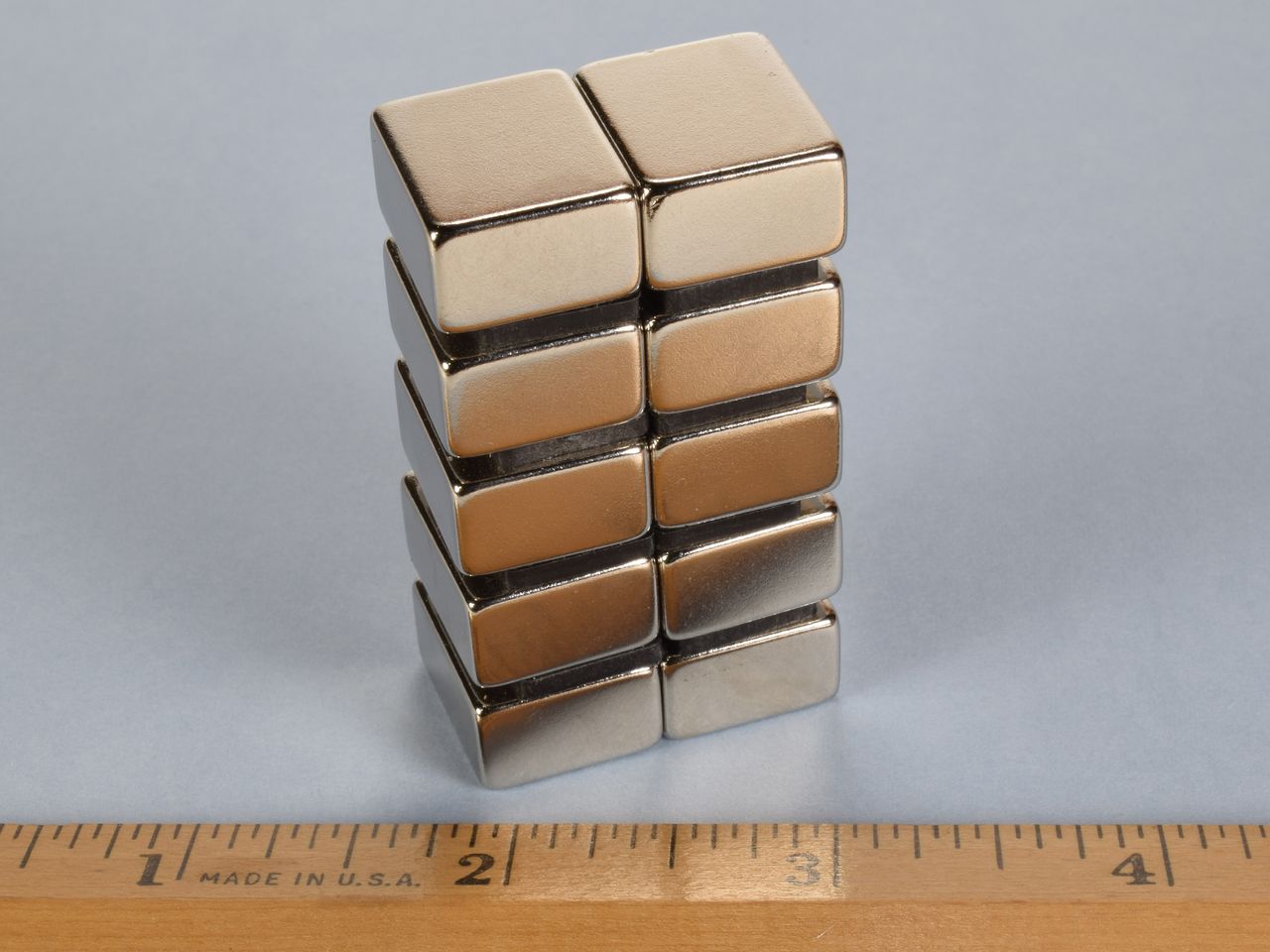

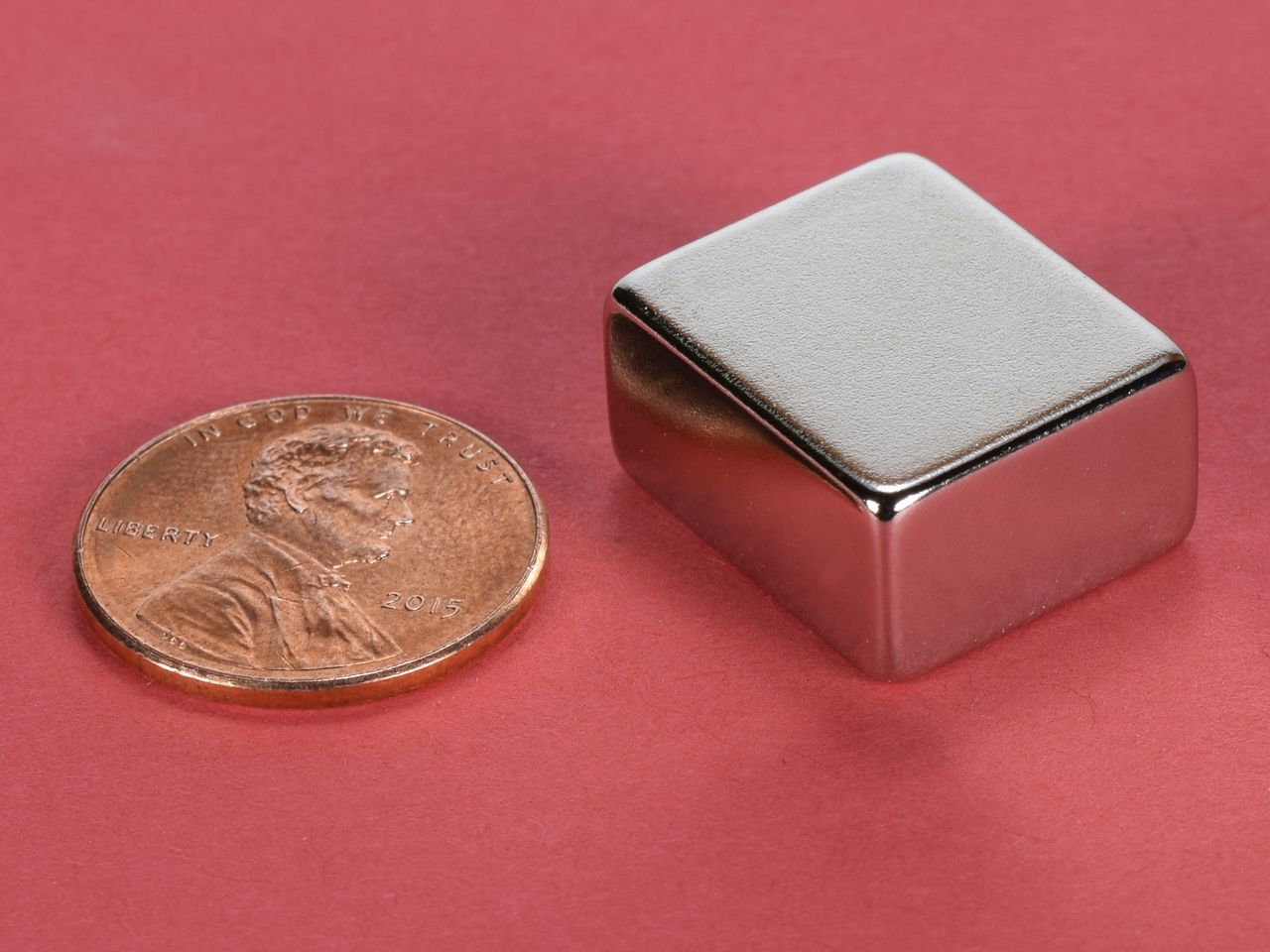

BCA6 - Neodymium Block Magnet

bca6-neodymium-block-magnet--thumbnail-2

$5.20

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$5.20	1-4
$5.08	5-9	2%
$4.97	10-24	4%
$4.85	25-49	7%
$4.74	50-99	9%
$4.62	100-249	11%
$4.51	250-499	13%
$4.39	500-999	16%
$4.28	1000-2499	18%
$4.16	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 3/4" x 5/8" x 3/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.762 oz. (21.61 g)
Pull Force, Case 1: 25.42 lbs
Pull Force, Case 2: 38.21 lbs
Surface Field: 4626 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The BCA6 is quite powerful, despite it's relatively small size. Working with this strong block shouldn't prove too difficult for the seasoned neodymium veteran. But those with a bit less experience will need to use caution, so as not to get pinched. The BCA6 is amazingly strong for it's size!

Many folks are looking for magnets exactly this size magnet per specifications like, "3/4" long, 5/8" wide, 3/8" thick, Alnico 4, M-60, 12Al, 28Ni, 5Co, BaFe Isotropic Permanent Magnets." While our BCA6 magnets are the same size, it is not an Alnico magnet. Expect much more strength than a comparably sized Alnico magnet -- roughly 10 times more!

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
