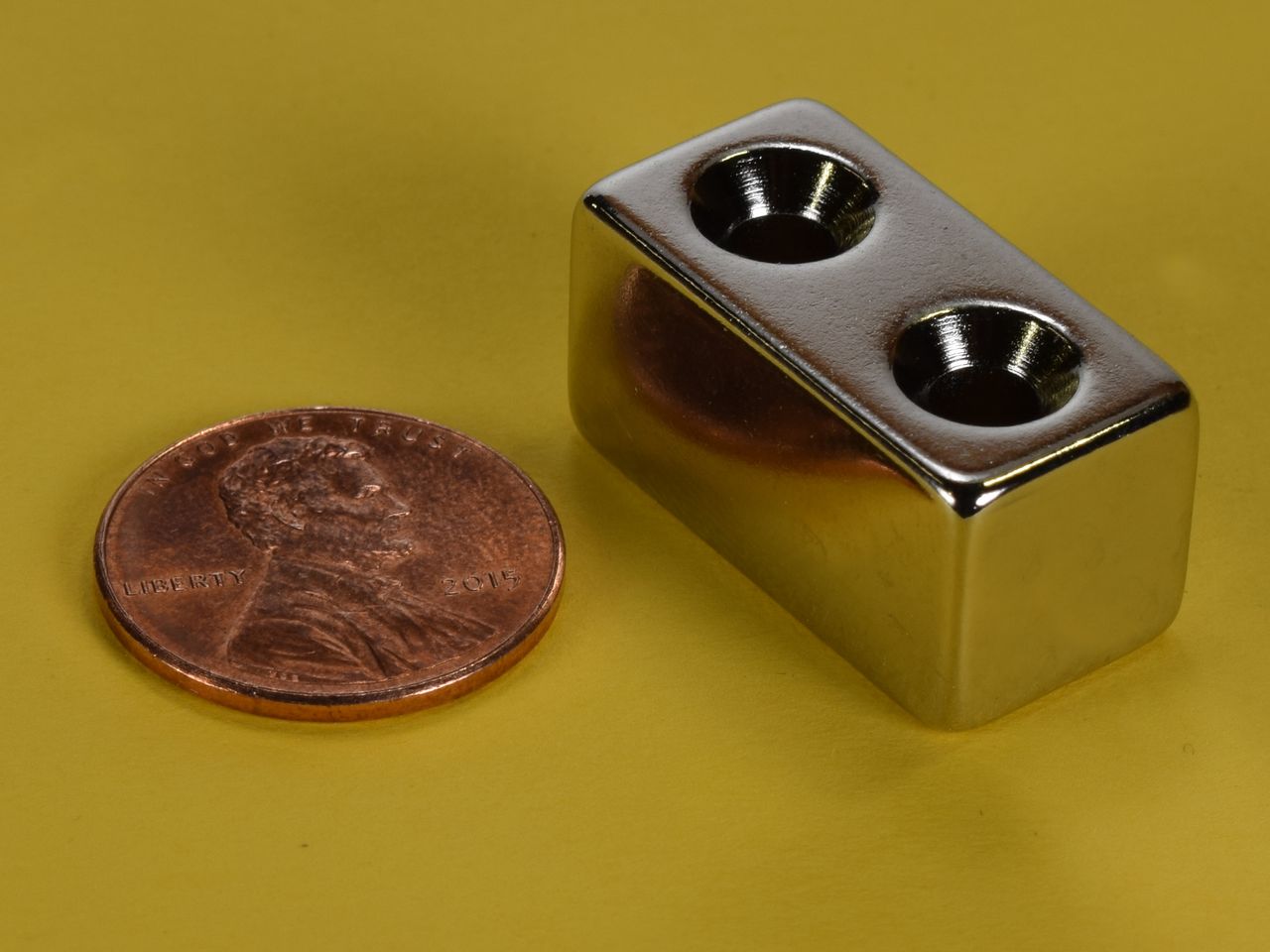

- Dimensions: 1" x 1/2" x 1/2" thick w/ countersunk holes to accept #6 screws
- Tolerances: ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N42
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Thru Thickness
- Weight: 0.96 oz. (27.19 g)
- Pull Force, Case 1: 26.74 lbs
- Pull Force, Case 2: 34.89 lbs
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 13,200 Gauss
- BHmax: 42 MGOe
See our full line of Countersunk Magnets.
This size is also available in grade N52, without the countersunk holes, as part number BX088-N52.
 | Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
 | Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
 | Pull Force, Case 3 vs. distance: Magnet to Magnet. |
 | Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
 | View B-H curves for this magnet. |
 | Click this link to download a PDF Specification Sheet. |

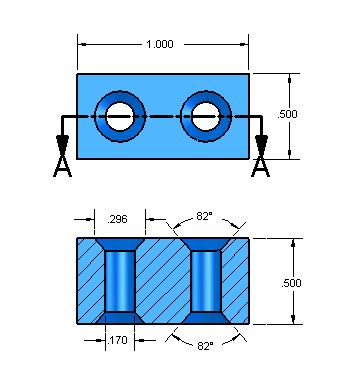

 | Click this link to download a PDF drawing of this product. |
