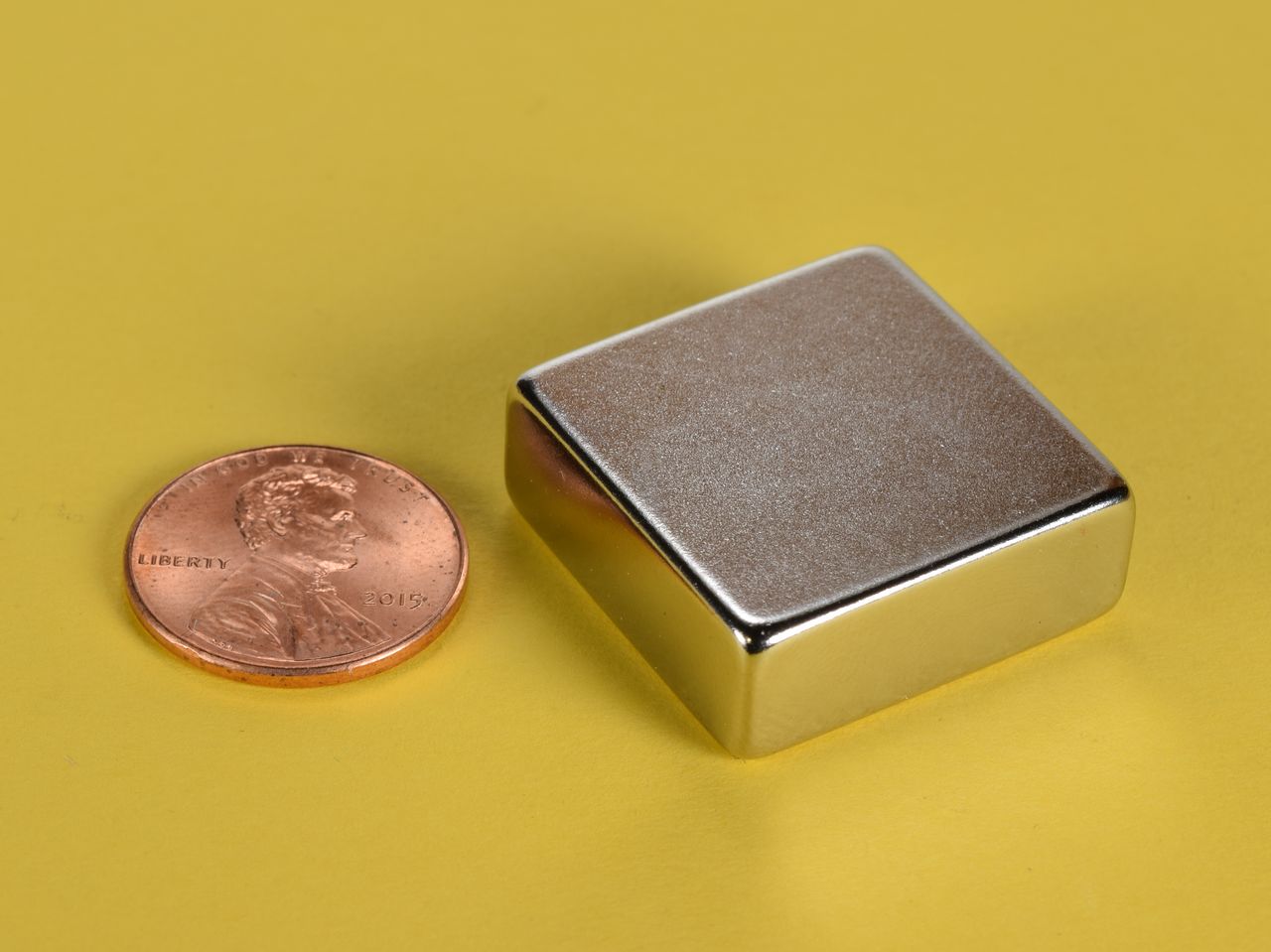

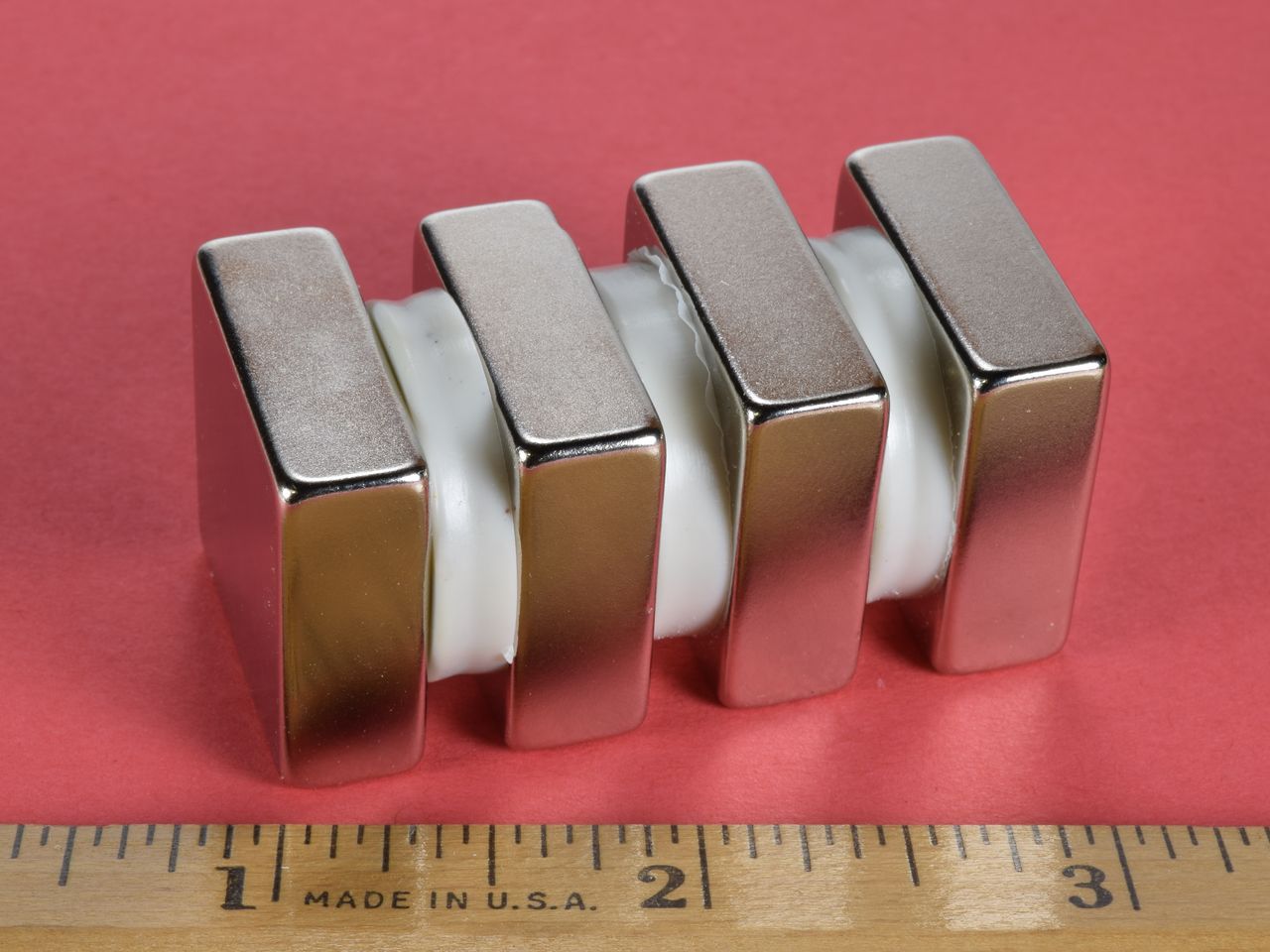

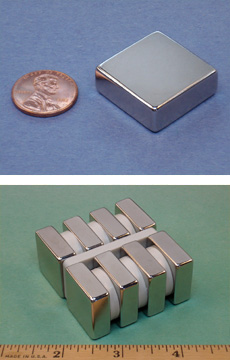

BX0X06 - Neodymium Block Magnet

bx0x06-neodymium-block-magnet--thumbnail-2

$10.51

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$10.51	1
$10.28	2-4	2%
$10.04	5-9	4%
$9.81	10-24	7%
$9.58	25-49	9%
$9.34	50-99	11%
$9.11	100-249	13%
$8.88	250-499	16%
$8.64	500-999	18%
$8.41	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1" x 1" x 3/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 1.63 oz. (46.10 g)
Pull Force, Case 1: 43.24 lbs
Pull Force, Case 2: 74.04 lbs
Surface Field: 3682 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

Definitely not toys. These things are strong and will pinch if mishandled. They have an incredible amount of holding power and are a great choice for firmly attaching metal objects to each other. Only purchase these if you are very familiar with neodymium magnets and can handle large ones safely.

These blocks are often used for water conditioning and making fuel saving devices.

Also available in this size: BX0X06-N52 (Grade N52) and BX0X06TP-N52 (Grade N52, Black rubber coated)

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
