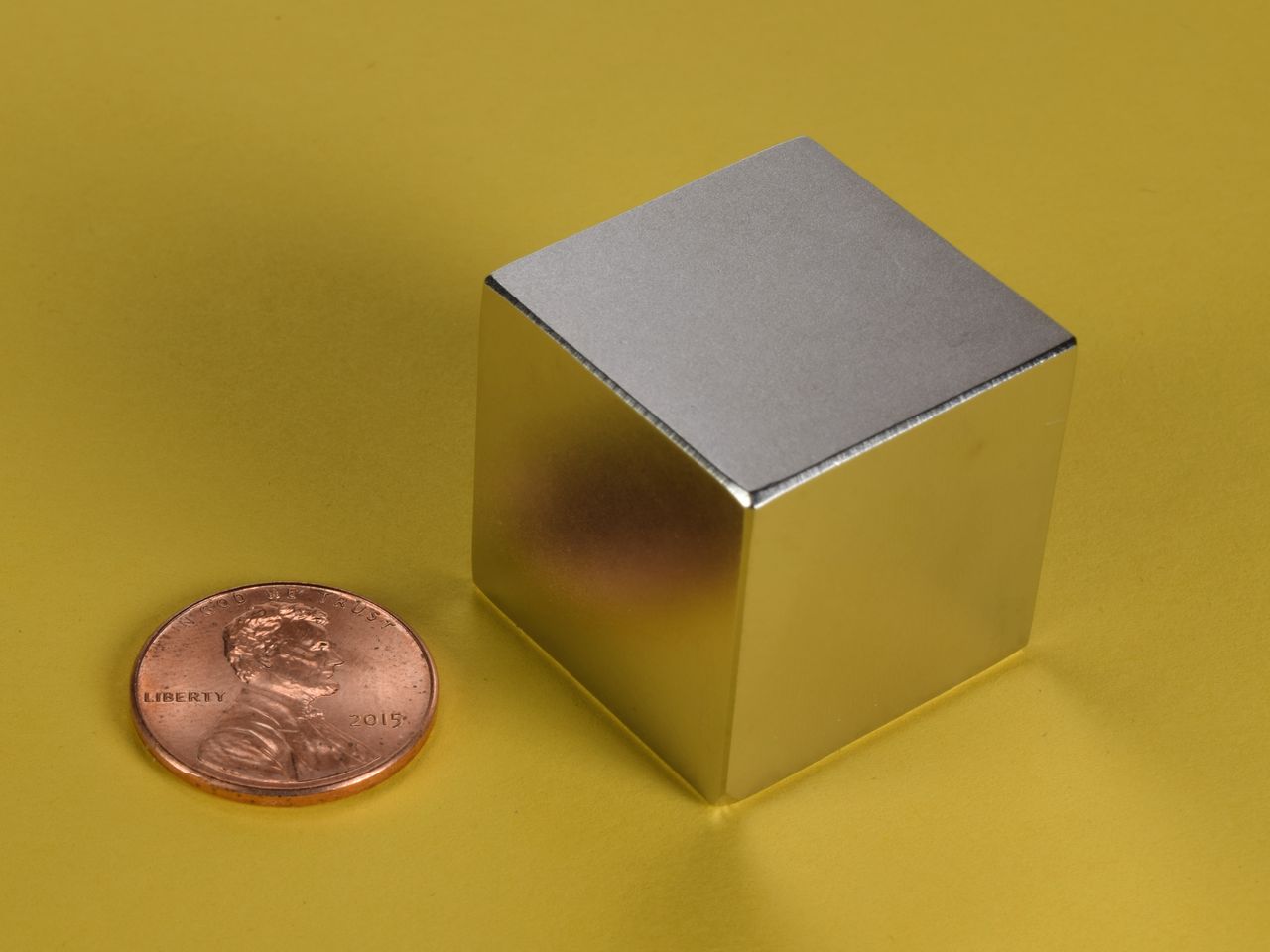

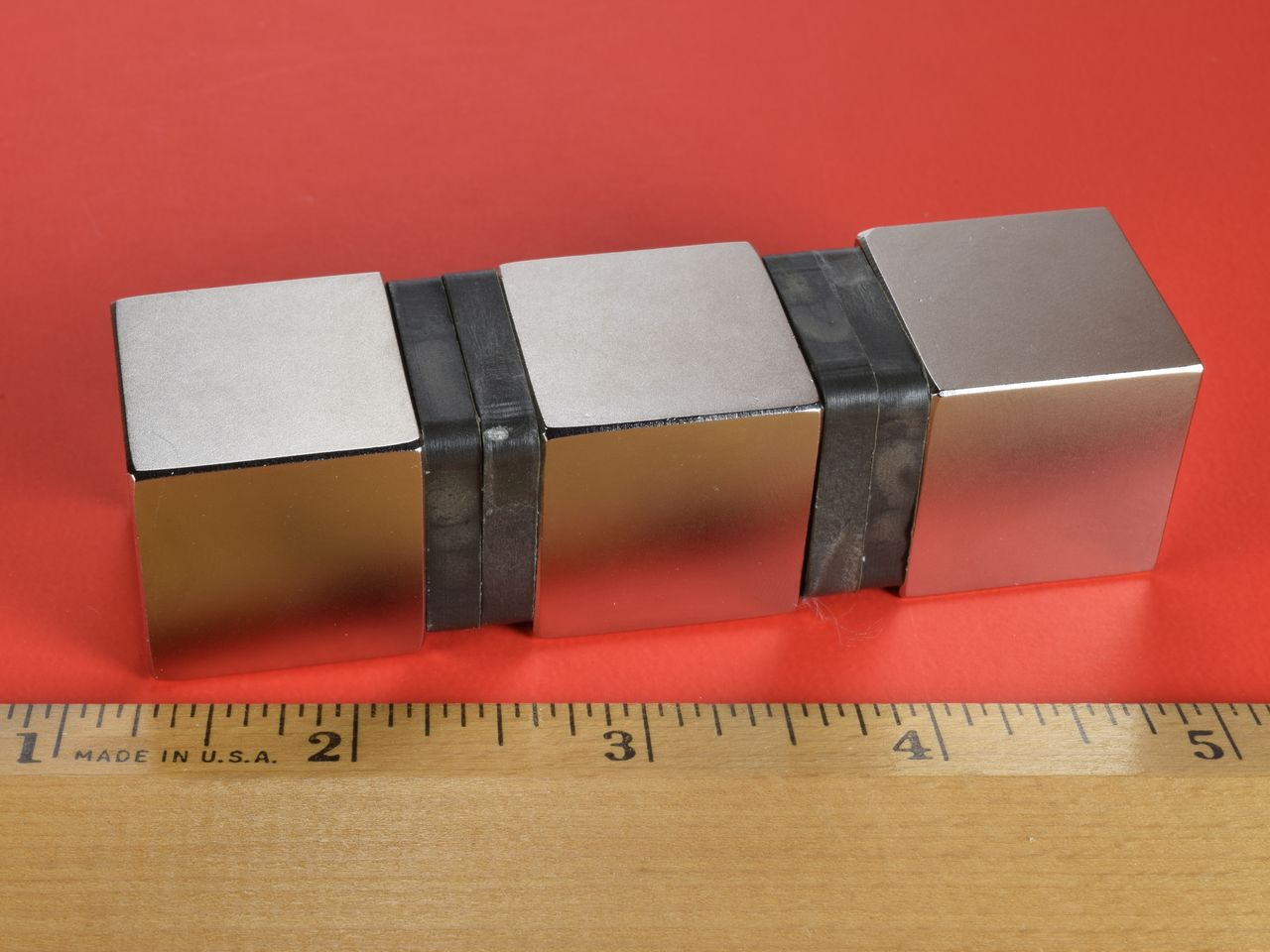

BX0X0X0 - Neodymium Block Magnet

• Dimensions: 1" x 1" x 1" thick
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 4.34 oz. (122.9 g)
• Pull Force, Case 1: 76.41 lbs
• Pull Force, Case 2: 76.41 lbs
• Surface Field: 5754 Gauss
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

These giant cubes are not for the neodymium amateur or for most experienced handlers for that matter. They are VERY strong and can pinch VERY hard if mishandled. Only purchase these cubes if you know what you are doing and have a specific purpose in mind. They will hold a lot of weight and can be incredibly useful, but must be handled properly.

This size is also available in grade N52 as part number BX0X0X0-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.
