BX882CS-P - Neodymium Countersunk Block Magnet

• Dimensions: 1 1/2" x 1/2" x 1/8" thick w/ holes to accept a #6 screw
• Tolerances: ±0.004" x ±0.004" x ±0.004"
• Material: NdFeB, Grade N42
• Plating/Coating: Ni-Cu-Ni (Nickel)
• Magnetization Direction: Thru Thickness
• Weight: 0.346 oz. (9.81 g)
• Pull Force, Case 1: 11.03 lbs
• Pull Force, Case 2: 49.16 lbs
• Max Operating Temp: 176ºF (80ºC)
• Brmax: 13,200 Gauss
• BHmax: 42 MGOe

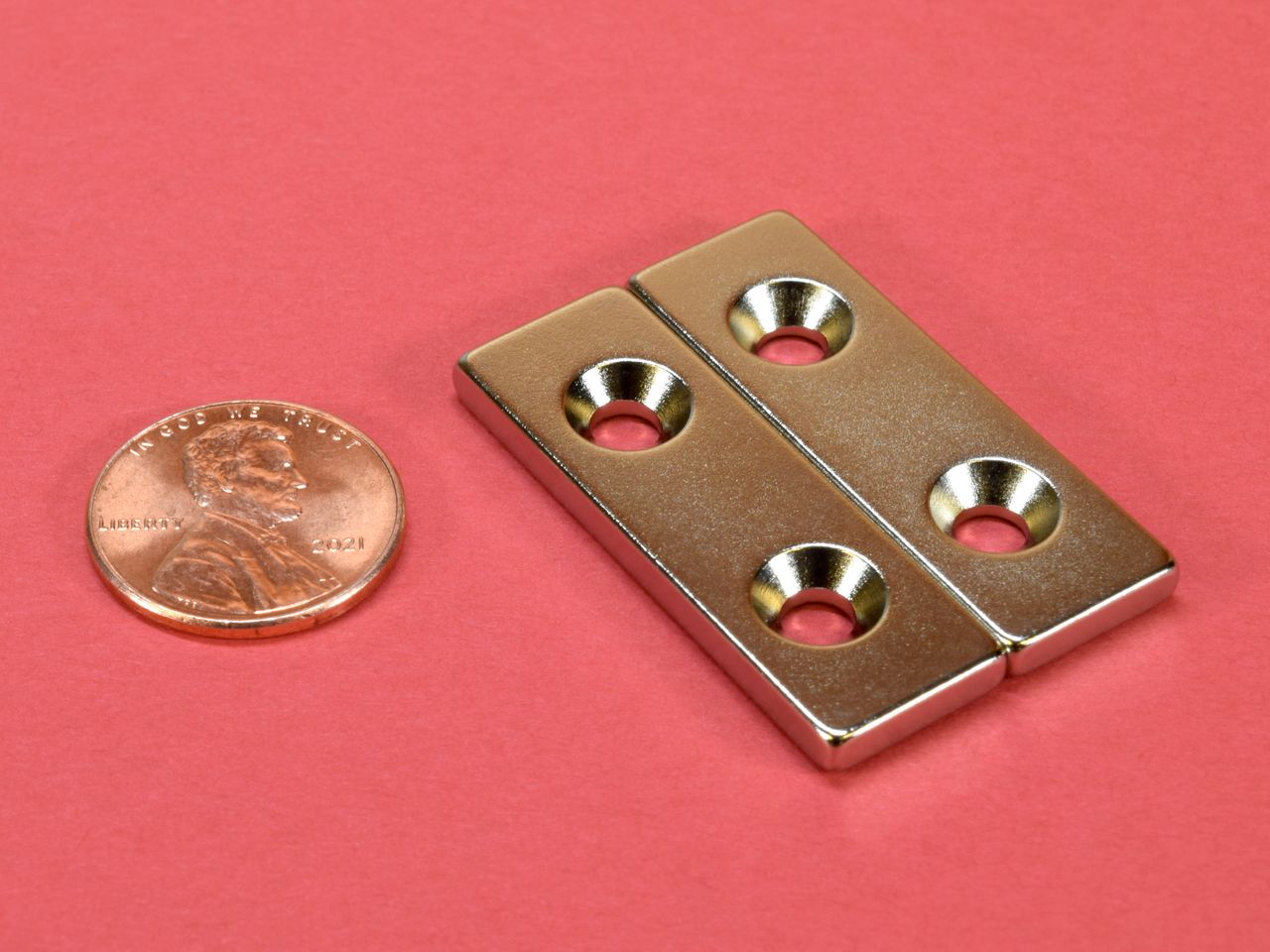

Here we offer the popular size of 1 1/2" x 1/2" x 1/8" thickness with holes for two #6 flathead screws to allow for easy fastening. Sold by the pair, one will have the north pole on the countersink side and one will have the south pole on the countersink side, so they will attract each other when they are screwed in place.

These countersunk block magnets can be used for a wide range of applications including door closures and tool hangers. This size is available without the countersunk holes in grade N42, BX882 and grade N52, BX882-N52.
