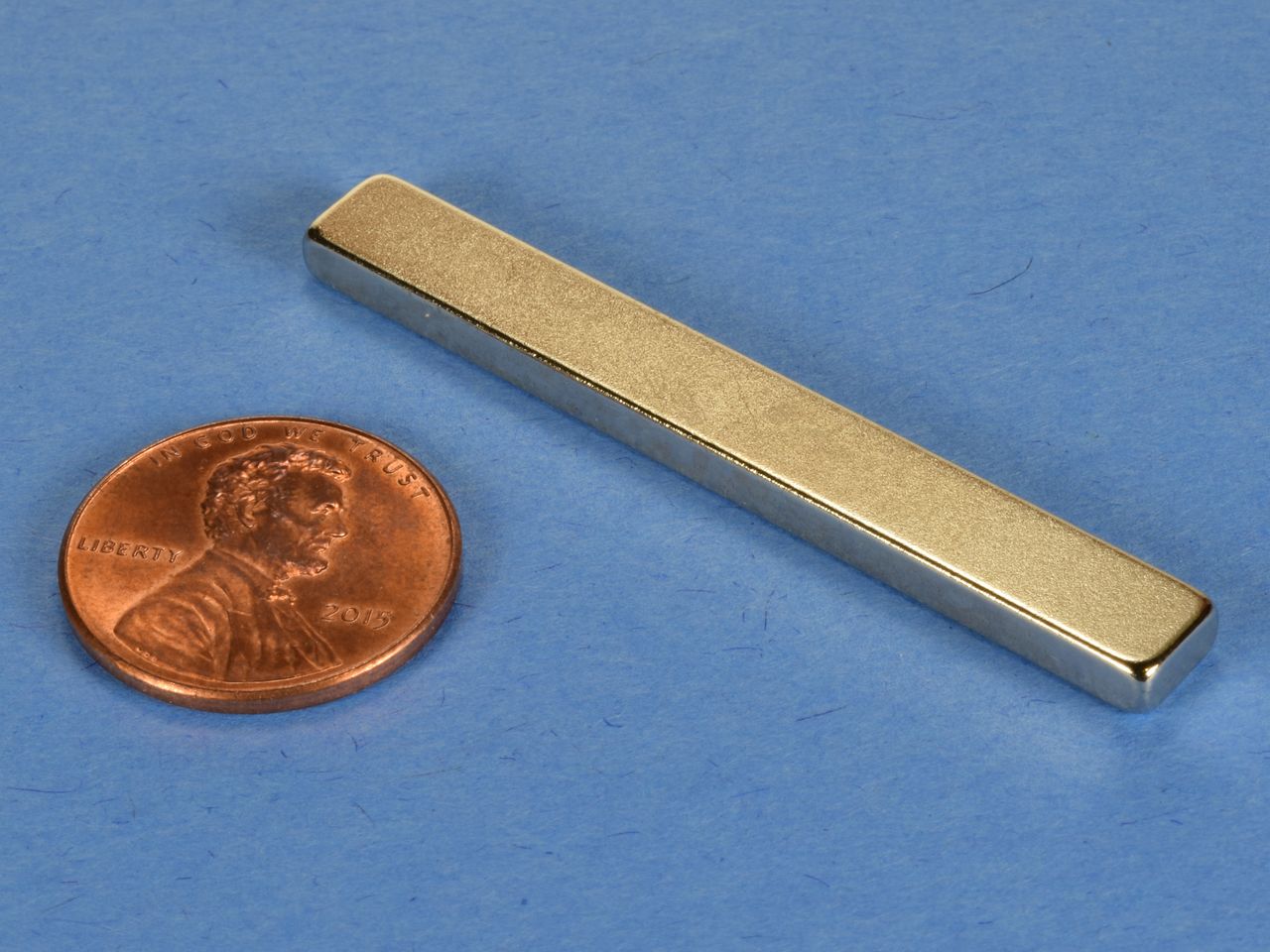

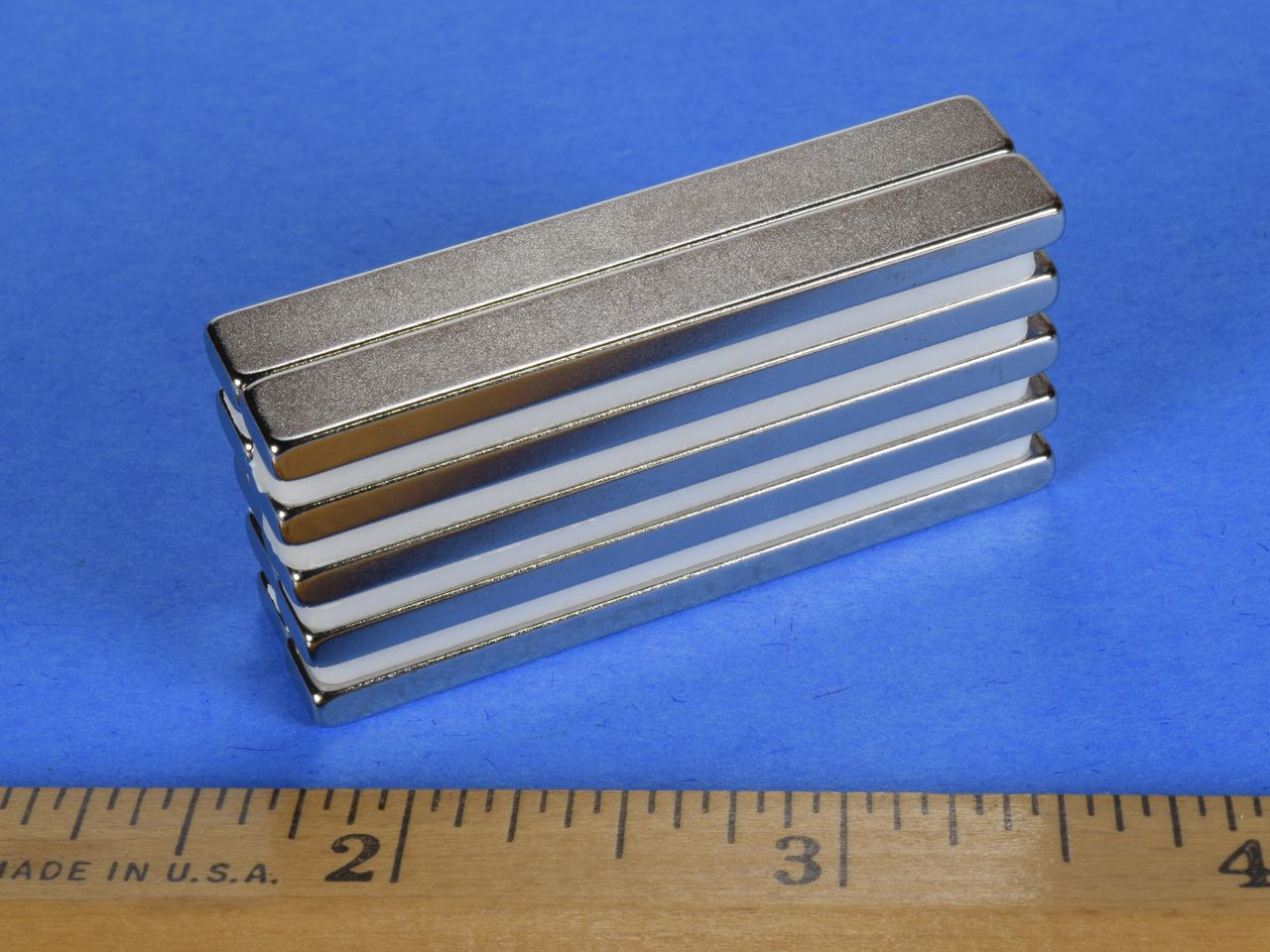

BY042SH - Neodymium High Temp Block Magnet

$3.51

20% Off

Discount will be applied during checkout

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$3.51	1-4
$3.43	5-9	2%
$3.35	10-24	5%
$3.28	25-49	7%
$3.20	50-99	9%
$3.12	100-249	11%
$3.04	250-499	13%
$2.97	500-999	15%
$2.89	1000-2499	18%
$2.81	2500-4999	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 2" x 1/4" x 1/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42SH
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 0.271 oz. (7.68 g)
Pull Force, Case 1: 10.34 lbs
Pull Force, Case 2: 40.06 lbs
Surface Field: 3332 Gauss
Max Operating Temp: 302ºF (150ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

The BY042SH blocks are made in grade N42SH (SH = Super High Temperature) material. The SH material means that the magnets can be heated to 302° F (150° C) without any permanent loss of magnetic strength, unlike standard neodymium magnets that begin to lose strength at 176° F (80° C). Suitable for many high temperature applications.

This size is also available in grade standard N42 as part number BY042.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
