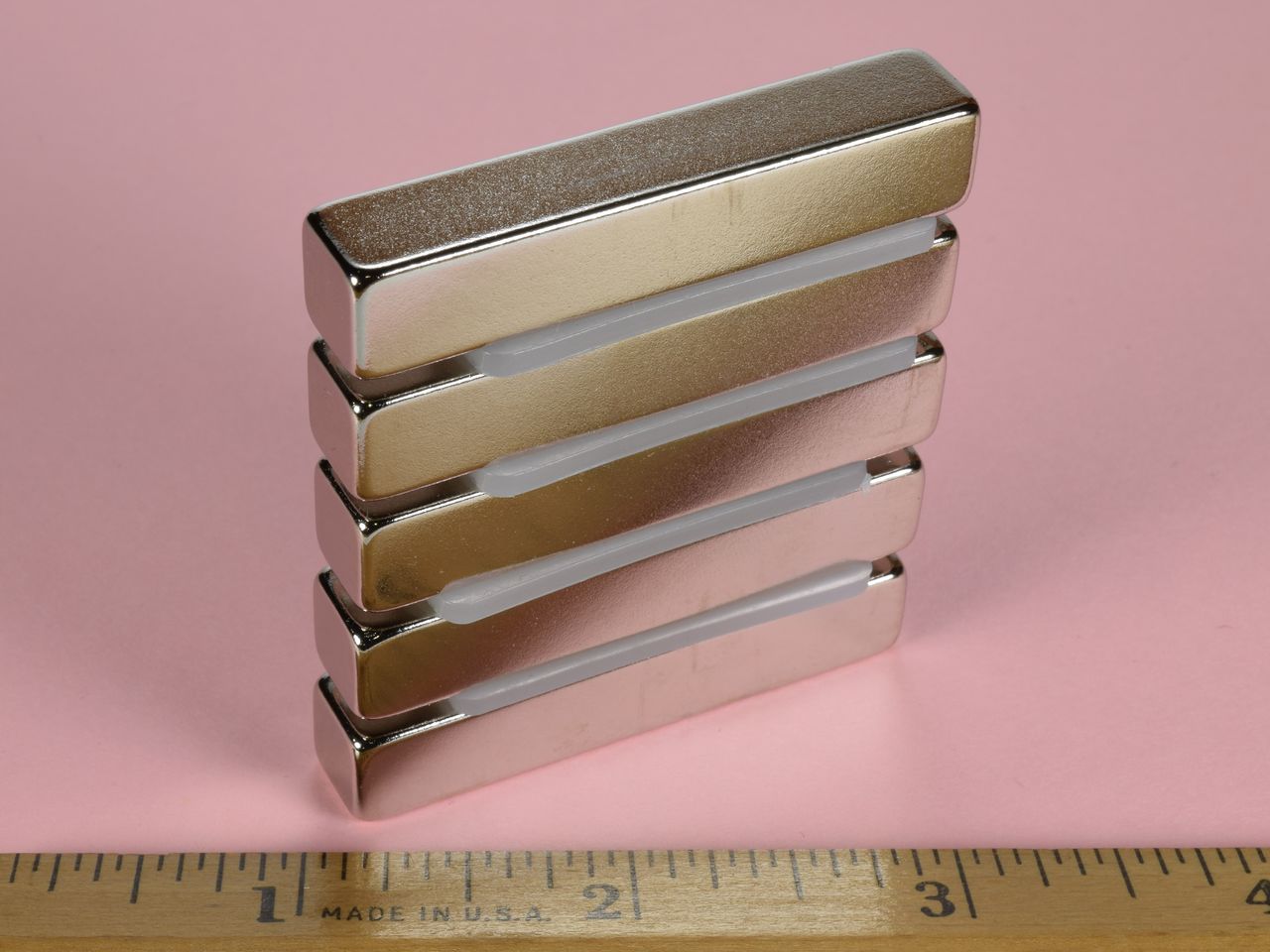

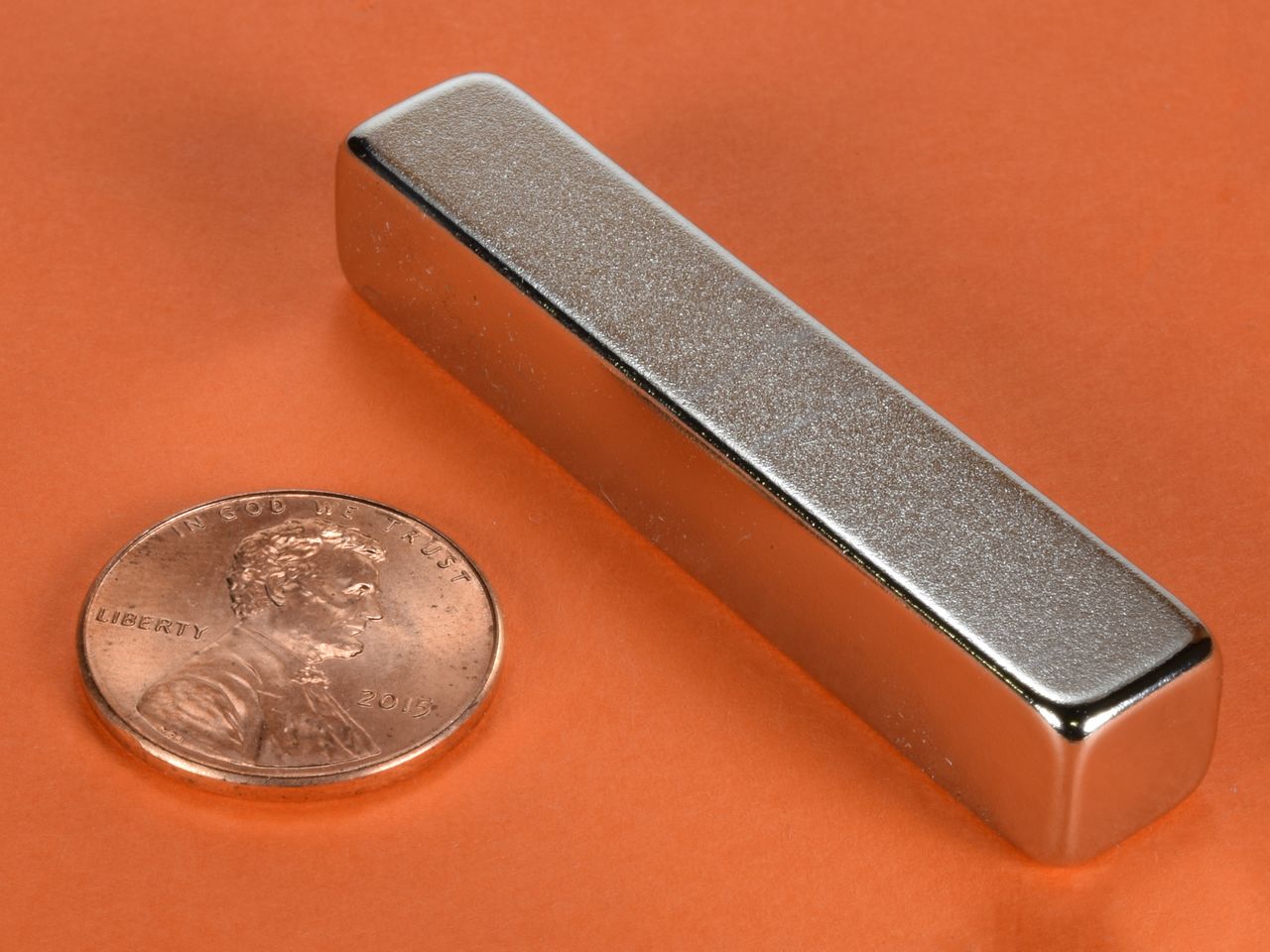

BY066 - Neodymium Block Magnet

by066-neodymium-block-magnet--thumbnail-2

$8.21

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$8.21	1
$8.03	2-4	2%
$7.85	5-9	4%
$7.66	10-24	7%
$7.48	25-49	9%
$7.30	50-99	11%
$7.12	100-249	13%
$6.93	250-499	16%
$6.75	500-999	18%
$6.57	1000-2499	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 2" x 3/8" x 3/8" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 1.22 oz. (34.57 g)
Pull Force, Case 1: 36.59 lbs
Pull Force, Case 2: 57.45 lbs
Surface Field: 4785 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

These 2" long blocks are great for a wide variety of heavier holding applications. From custom cabinetry and woodworking, to science demonstrations and advanced magic tricks, this is one versatile magnet! The BY066 is a very powerful block magnet and should be handled with caution to avoid getting pinched.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
