![](/images/magdir/block-4-2.png)
- Dimensions: 2" x 1" x 1/2" thick
- Tolerances: ±0.004" x ±0.004" x ±0.004"
- Material: NdFeB, Grade N52
- Plating/Coating: Thermoplastic
- Magnetization Direction: Thru Thickness
- Weight: 3.89 oz (110.2 g)
- Pull Force, Case 1: 63.02 lbs
- Pull Force, Case 2: 114.8 lbs
- Surface Field: 3904 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 14,800 Gauss
- BHmax: 52 MGOe

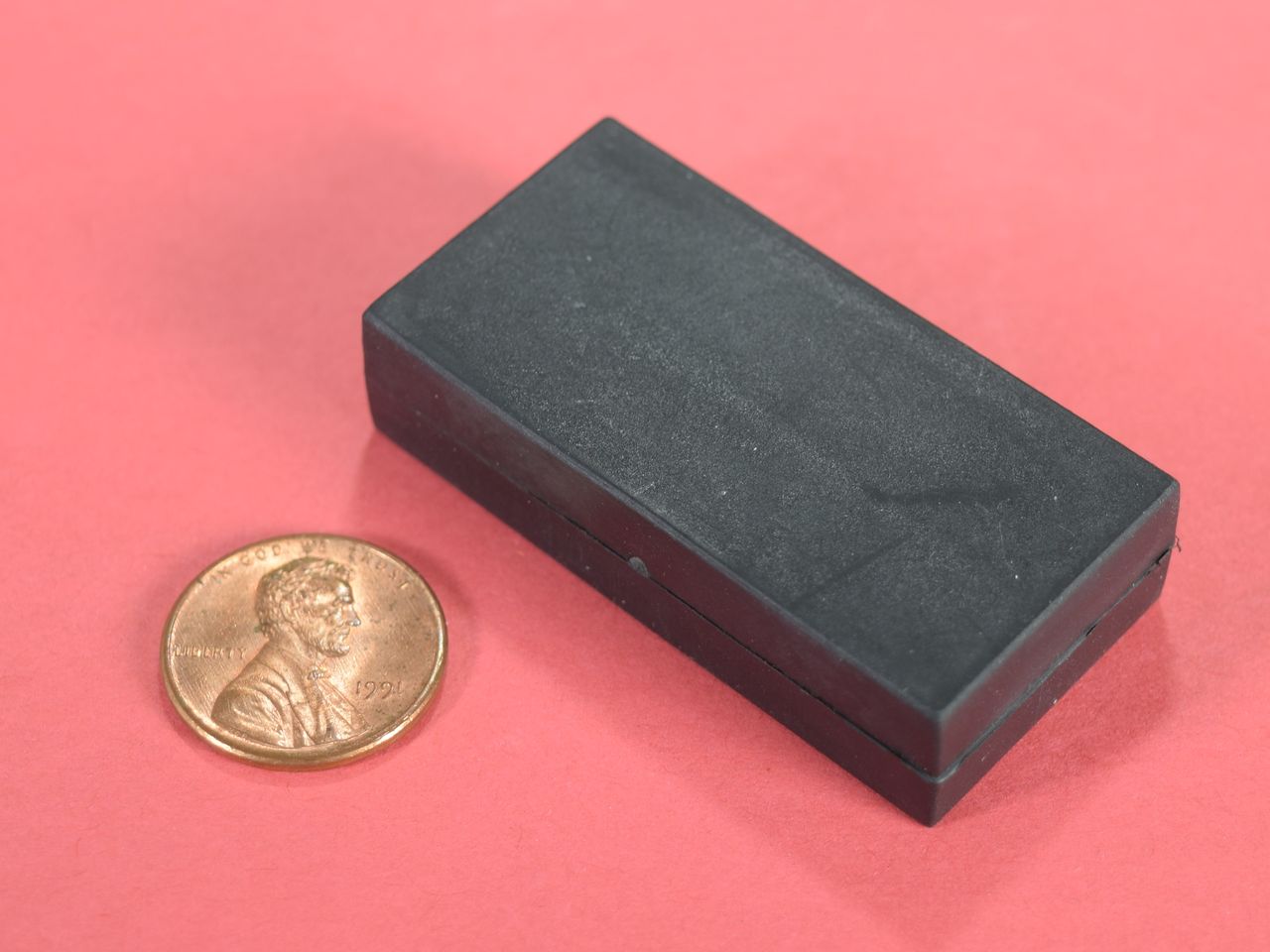

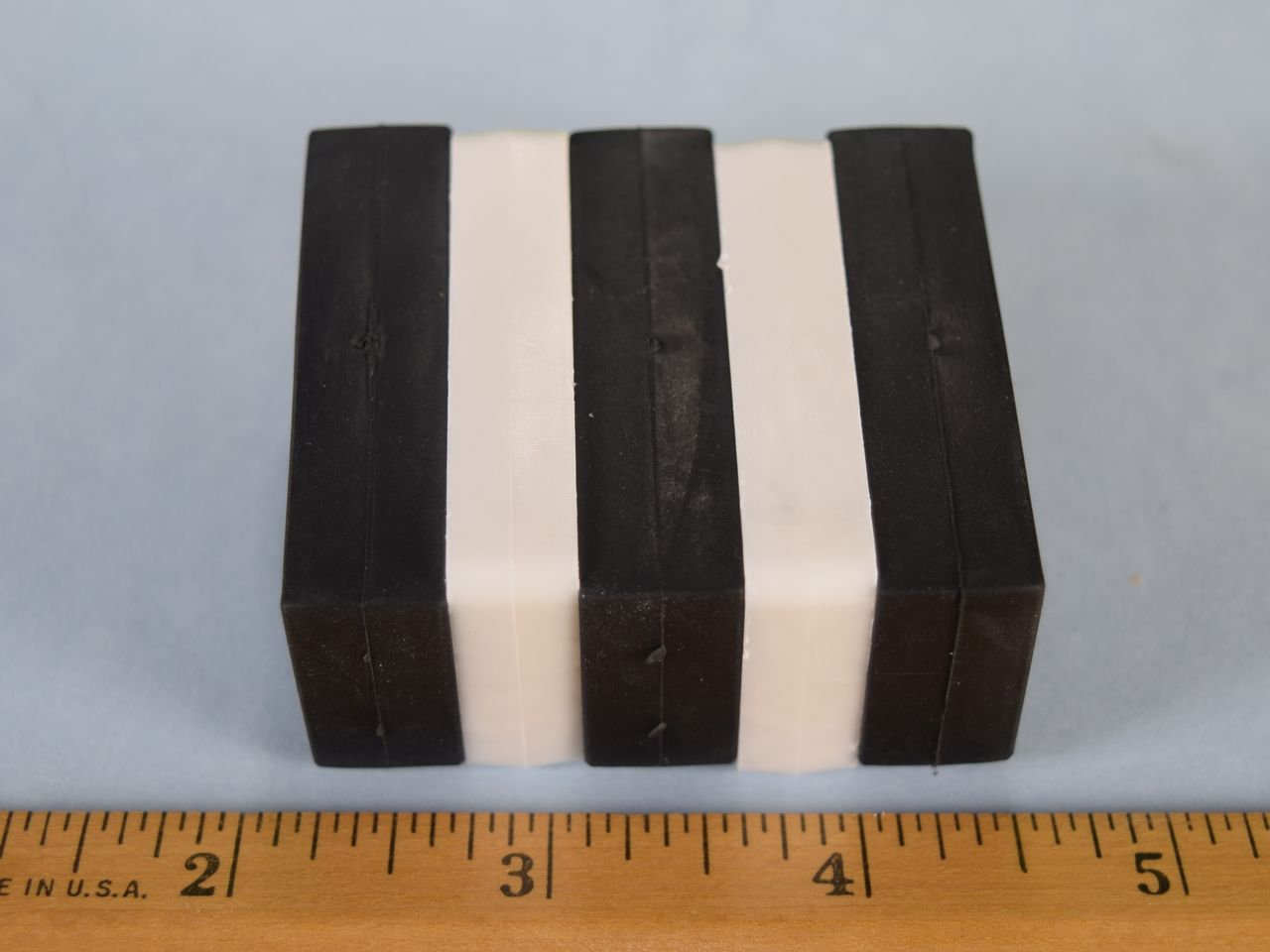

These blocks are incredibly powerful. Two of them stuck together are very difficult to separate. These rubber-coated blocks are great for holding through glass and other materials. The rubber coating helps to prevent the magnets from sliding on various surfaces, as we describe in our Leverage & Friction article.
Also available in this size: BY0X08DCS (Grade N42, Nickel Plated, Countersunk), BY0X08-N52 (Grade N52, Nickel Plated), BY0X08DCSPC-BLK (Grade N42, Double Countersunk, Black plastic coated) and BY0X08 (Grade N42, Nickel Plated)
![]() | Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
![]() | Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
![]() | Pull Force, Case 3 vs. distance: Magnet to Magnet. |
![]() | Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
![]() | Click this link for a depiction of the magnetic field. |
![]() | View B-H curves for this magnet. |
![]() | Click this link to download a PDF Specification Sheet. |
![]() | Click this link to download a PDF drawing of this product. |
![]() | Click this link to download a Certificate of Compliance for this product. |
![]() | Click this link to download a RoHS Statement of Compliance for this product. |
![]() | Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
![]() | Click this link to download a Conflict Minerals Reporting Template (CMRT). |
![]() | Click this link to download a Certificate of Origin for this product. |
![]() | Click this link to download a .STEP file (3D model). |
![]() | Click this link to download an .IGS file (3D model). |
