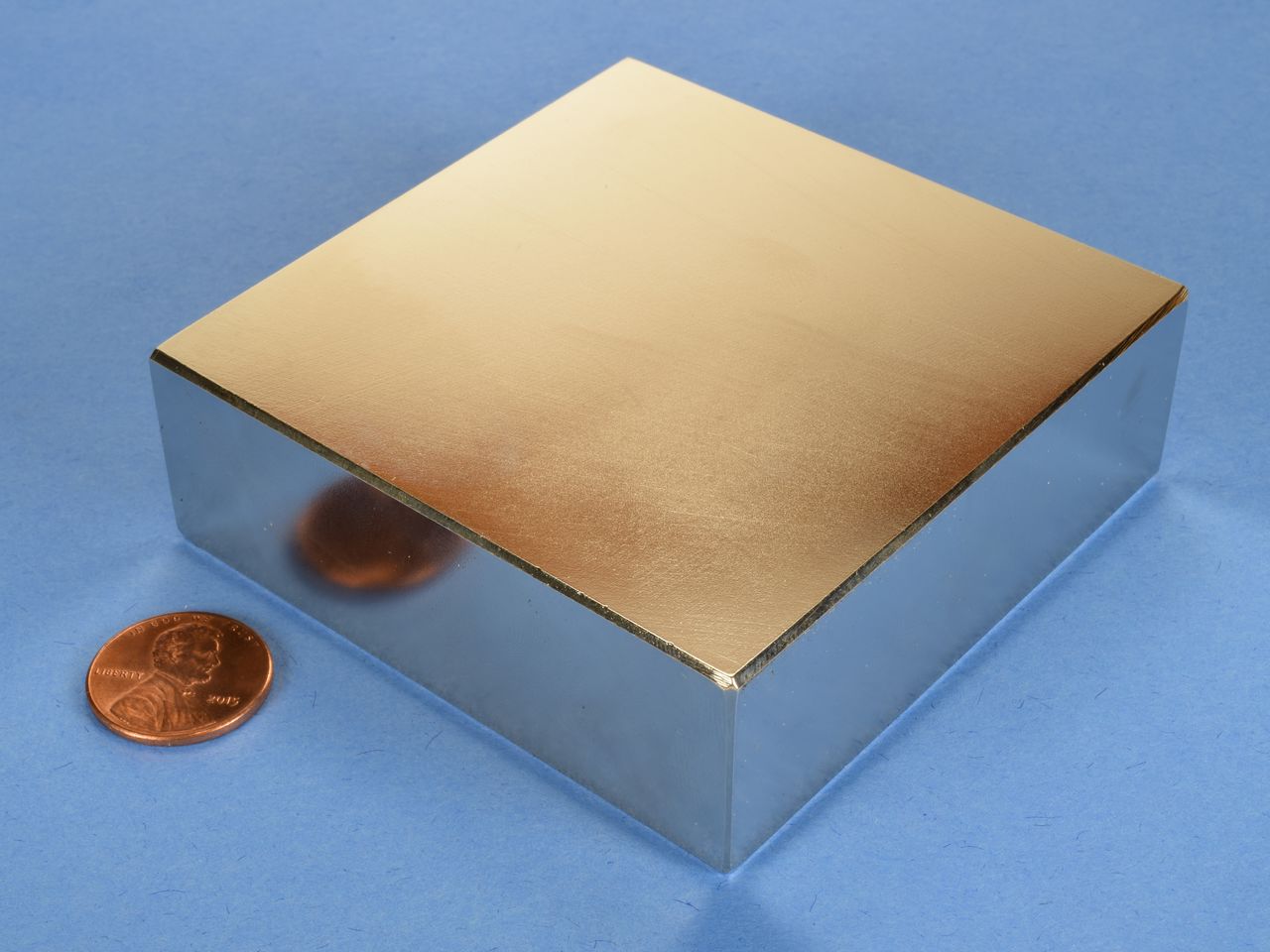

BZ0Z0X0-N52 - Neodymium Block Magnet

bz0z0x0-n52-neodymium-block-magnet--thumbnail-2

$294.82

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$294.82	1
$288.27	2	2%
$281.72	3	4%
$275.16	4	7%
$268.61	5	9%
$262.06	6-7	11%
$255.51	8-9	13%
$248.95	10-14	16%
$242.40	15-19	18%
$235.85	20-24	20%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

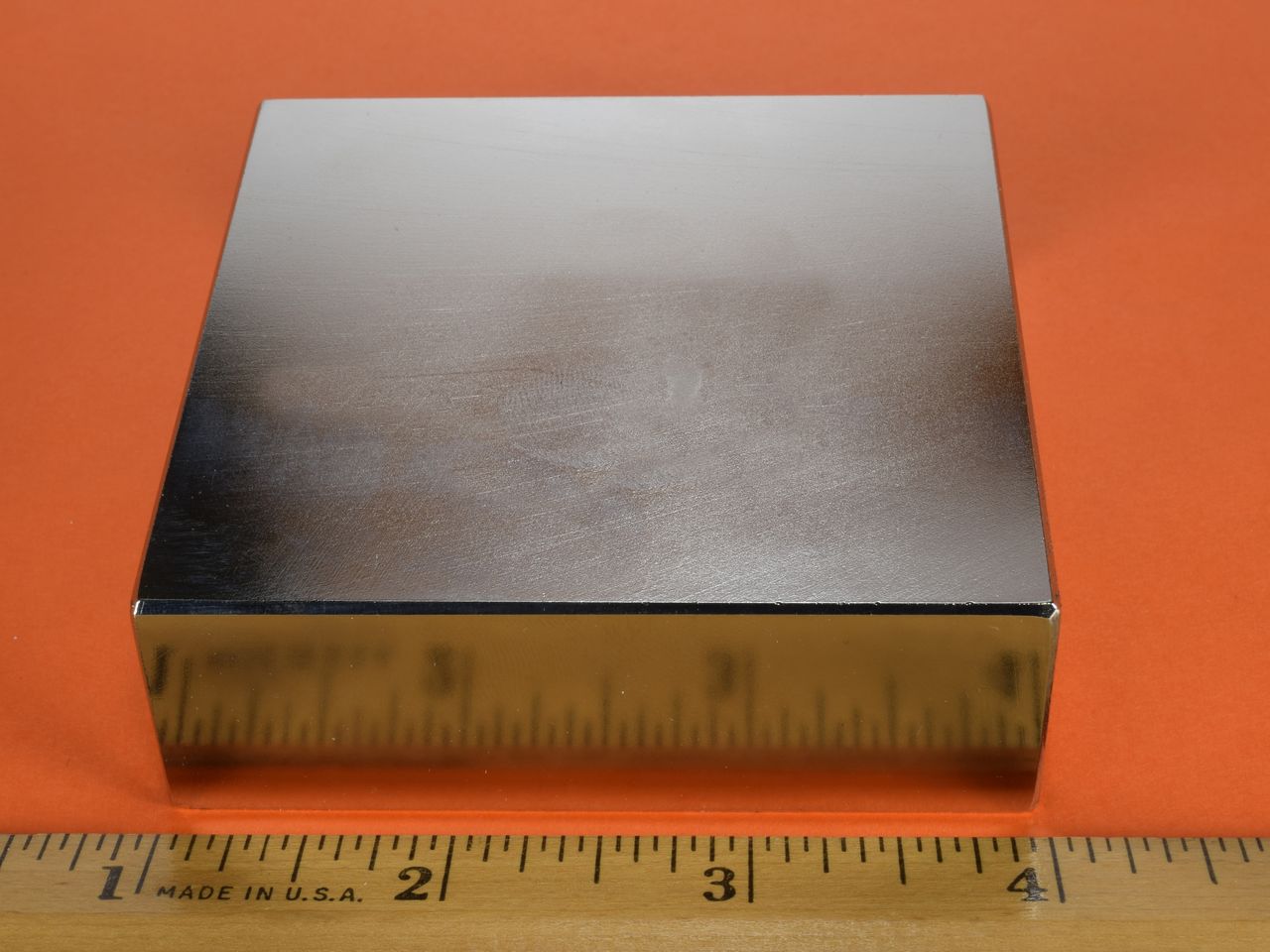

Dimensions: 3" x 3" x 1" thick
Tolerances: ±0.004" x ±0.004" x ±0.004"
Material: NdFeB, Grade N52
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Thru Thickness
Weight: 39.02 oz. (1106 g)
Pull Force, Case 1: 579.7 lbs
Pull Force, Case 2: 579.7 lbs
Surface Field: 3798 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 14,800 Gauss
BHmax: 52 MGOe

This giant magnet is super strong and just as dangerous if not handled properly. Since this is one of the most powerful magnets available, only those well-versed in the handling of very large Neodymium magnets should purchase this incredible block.They can pinch very hard if you get between two of them or one and a piece of metal. They are heavy, sturdy, and unbelievably strong.

You must read and understand our Neodymium Magnet Safety Page before ordering these magnets. You must also agree to our Terms and Conditions prior to purchasing. THESE ARE DANGEROUS!

GROUND SHIPPING ONLY on this item.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
