![](/images/magdir/adisc-1.png)

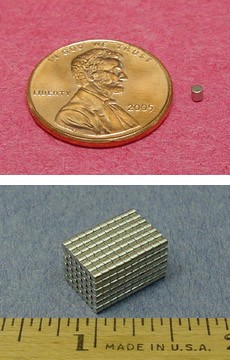

- Dimensions: 1/16" dia. x 1/16" thick
- Tolerances: ±0.004" x ±0.004"
- Material: NdFeB, Grade N52
- Plating/Coating: Ni-Cu-Ni (Nickel)
- Magnetization Direction: Axial (Poles on Flat Ends)
- Weight: 0.000831 oz. (0.0236 g)
- Pull Force, Case 1: 0.12 lbs
- Pull Force, Case 2: 0.12 lbs
- Surface Field: 6619 Gauss
- Max Operating Temp: 176ºF (80ºC)
- Brmax: 14,800 Gauss
- BHmax: 52 MGOe
This size is also available in grade N42SH as part number D11SH.
These magnets are sold in packs of 10. Order a quantity of 1 and get 10 magnets. Order a quantity of 2 and get 20 magnets. Order a quantity of 3 and get 30...
![]() |
Pull Force, Case 1 vs. distance: Magnet to a Steel Plate. |
![]() |
Pull Force, Case 2 vs. distance: Between 2 Steel Plates. |
![]() |
Pull Force, Case 3 vs. distance: Magnet to Magnet. |
![]() |
Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion. |
![]() |
Click this link for a depiction of the magnetic field. |
![]() |
View B-H curves for this magnet. |
![]() |
Click this link to download a PDF Specification Sheet. |
![]() |
Click this link to download a PDF drawing of this product. |
![]() |
Click this link to download a Certificate of Compliance for this product. |
![]() |
Click this link to download a RoHS Statement of Compliance for this product. |
![]() |
Click this link to download a Material Safety Data Sheet (MSDS) for this product. |
![]() |
Click this link to download a Conflict Minerals Reporting Template (CMRT). |
![]() |
Click this link to download a Certificate of Origin for this product. |
![]() | Click this link for a REACH compliance statement. |
![]() |
Click this link to download a .STEP file (3D model). |
![]() |
Click this link to download an .IGS file (3D model). |
