D16 - Neodymium Cylinder Magnet

$2.70

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$2.70	1-4
$2.60	5-24	4%
$2.50	25-99	7%
$2.40	100-499	11%
$2.30	500-2499	15%
$2.20	2500-4999	19%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1/16" dia. x 3/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (Nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.00499 oz. (0.141 g)
Pull Force, Case 1: 0.19 lbs
Pull Force, Case 2: 0.18 lbs
Surface Field: 6577 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

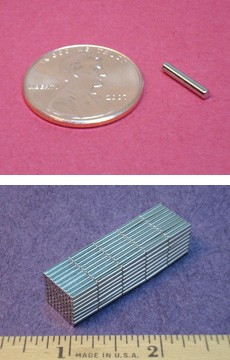

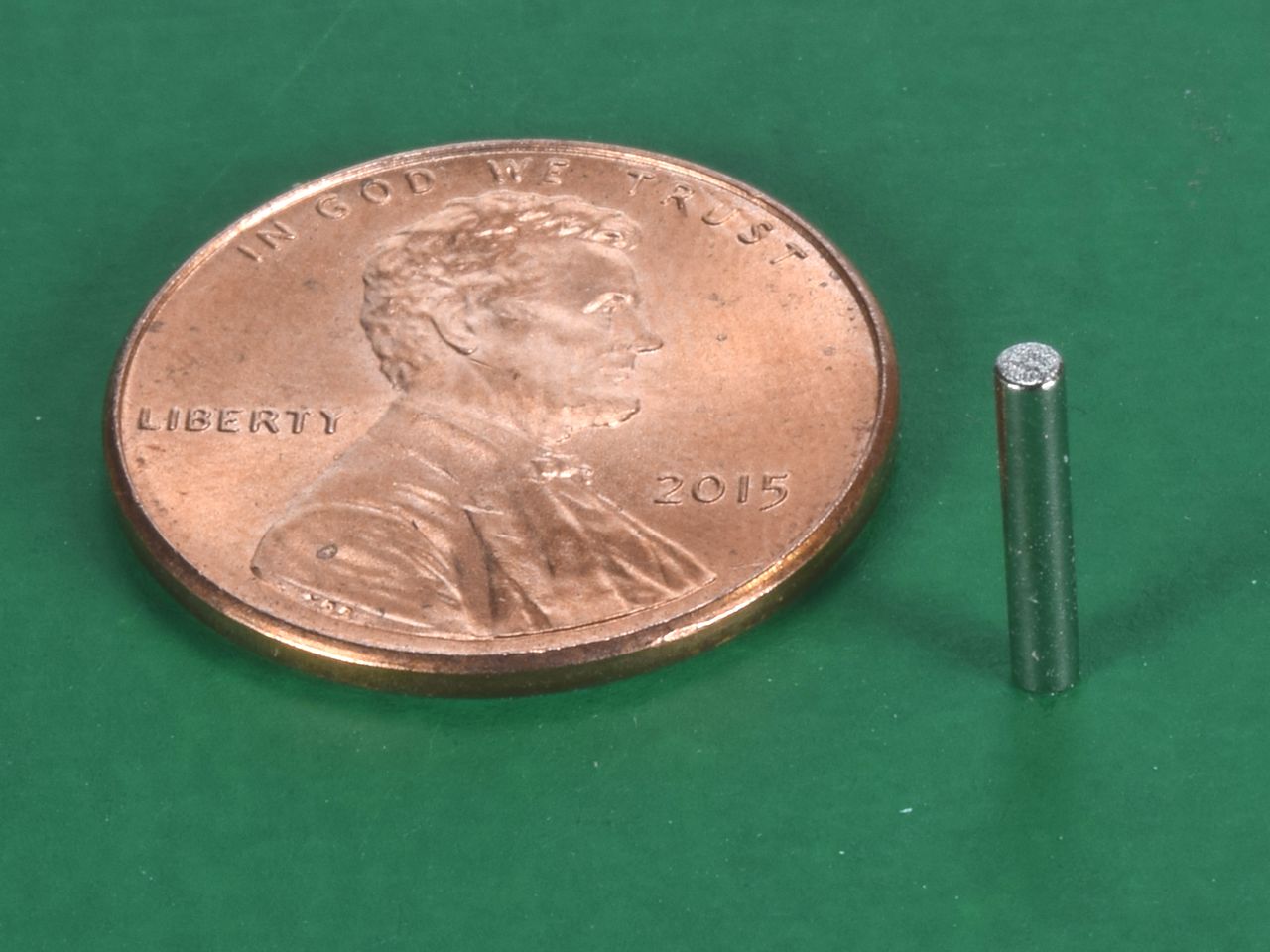

Tiny, tiny cylinders. These small cylinders are interesting to use with larger magnets. These small rods will align themselves with the magnetic field lines of larger magnets.

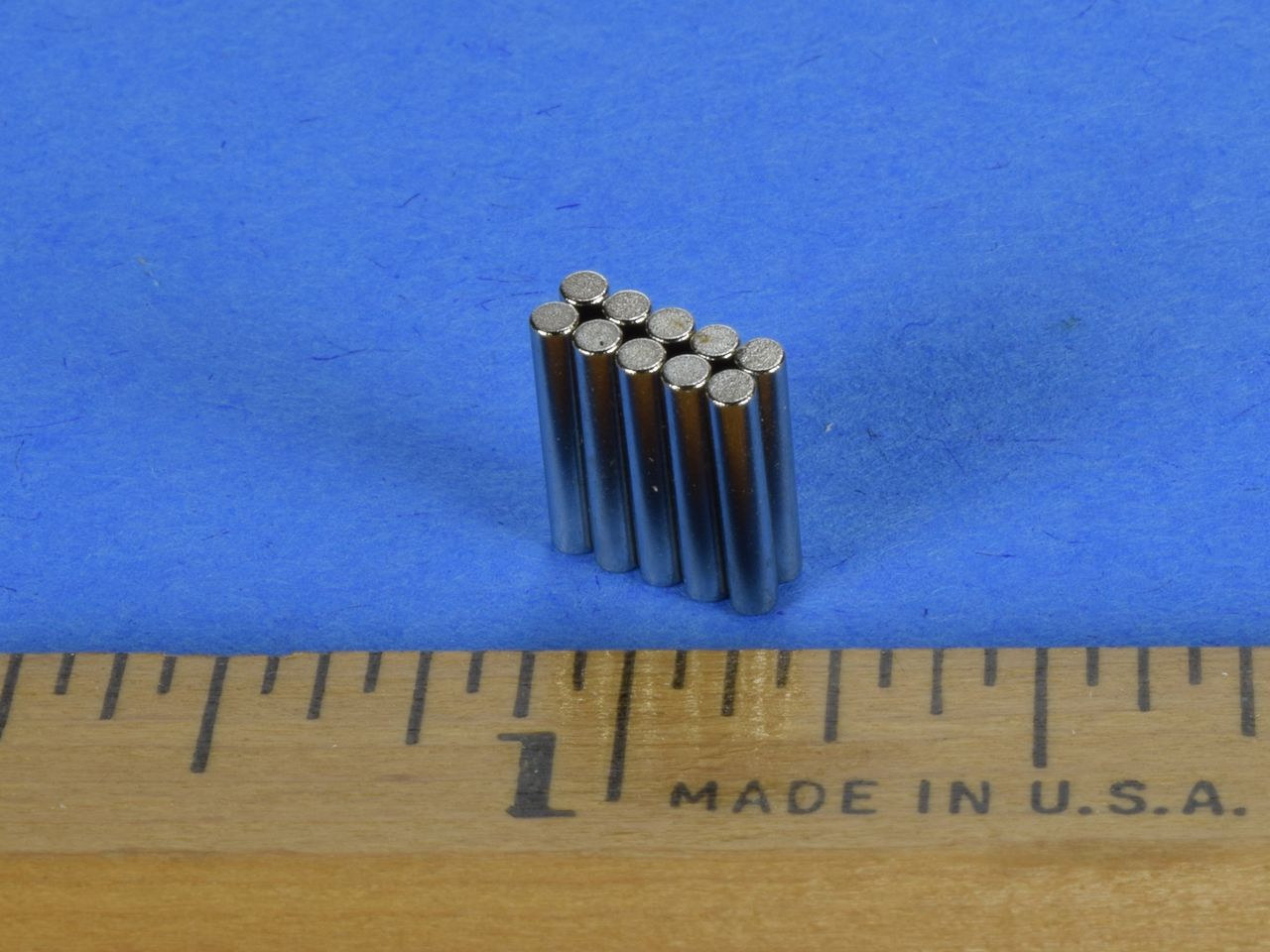

These magnets are sold in packs of 10. Order a quantity of 1 and get 10 magnets. Order a quantity of 2 and get 20 magnets. Order a quantity of 3 and get 30...

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
