D22 - Neodymium Cylinder Magnet

$0.16

Buy more, Save more!

Quantity based discounts

Price ea.	Qty	Discount
$0.16	1-249
$0.15	250-2499	6%
$0.14	2500-24999	12%
$0.13	25000-49999	19%
Email us for even bigger discounts on higher order quantities

Description
Technical
Downloads

Dimensions: 1/8" dia. x 1/8" thick
Tolerances: ±0.004" x ±0.004"
Material: NdFeB, Grade N42
Plating/Coating: Ni-Cu-Ni (nickel)
Magnetization Direction: Axial (Poles on Flat Ends)
Weight: 0.00665 oz. (0.189 g)
Pull Force, Case 1: 0.68 lbs
Pull Force, Case 2: 0.85 lbs
Surface Field: 5903 Gauss
Max Operating Temp: 176ºF (80ºC)
Brmax: 13,200 Gauss
BHmax: 42 MGOe

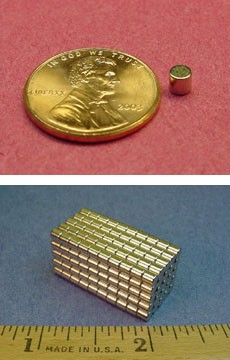

These neat little cylinders are the same diameter as our D21 magnets, but twice the thickness. The extra thickness makes them easier to handle and pull off of metal surfaces than the D21.

This size is also available in grade N52 as part number D22-N52.

	Pull Force, Case 1 vs. distance: Magnet to a Steel Plate.
	Pull Force, Case 2 vs. distance: Between 2 Steel Plates.
	Pull Force, Case 3 vs. distance: Magnet to Magnet.
	Pull Force, Case 4 vs. distance: Magnet to Magnet Repulsion.
	Click this link for a depiction of the magnetic field.
	View B-H curves for this magnet.

	Click this link to download a PDF Specification Sheet.
	Click this link to download a PDF drawing of this product.
	Click this link to download a Certificate of Compliance for this product.
	Click this link to download a RoHS Statement of Compliance for this product.
	Click this link to download a Material Safety Data Sheet (MSDS) for this product.
	Click this link to download a Conflict Minerals Reporting Template (CMRT).
	Click this link to download a Certificate of Origin for this product.
	Click this link for a REACH compliance statement.
	Click this link to download a .STEP file (3D model).
	Click this link to download an .IGS file (3D model).
